Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 520kw / 650kva | Engine: | Perkins, Cummins... |
|---|---|---|---|
| Cooling System: | Water-cooled | Frequency: | 50 Hz |
| Rated Voltage: | 400/230 V | Insulation Class: | 3400*1550*2000 |
| Weigh: | 4100 Kg | Continuous Running Time: | 6 Hr |
| Highlight: | marine diesel genset,power generating sets |
||
650kva Diesel Generator Set High Power Water Cooled Standby 3 Phase Genset
Basic Specification:
Technical Specifications :
| Prime Power (kw/kva) | 520/650 |
| Standby Power (kw/kva) | 572/715 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 936 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 24V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 3400*1550*2000 |
| Open Type-Weight (kg) | 4100 |

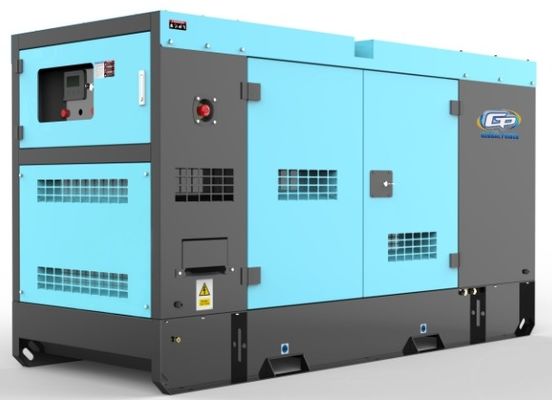

| Soundproof Type- Dimension (L*W*H) (mm) | 4400*1850*2500 |
| Soundproof Type-Weight (kg) | 10000 |
| Fuel Tank Capacity(L) | 1000 |
| Continuous Running Time(hr.) | 6 |
Perkins Engine:
Model 2806A-E18TAG2
| Engine brand | Perkins |
| Output Power (kw) | 609 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 14.5:1 |
| Displacement (L) | 18.1 |
| Bore X Stroke (mm) | 145*183 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 61 |
| Fuel Consump. (g/kw·h) | 202 |
| Oil Capacity (L) | 62 |
feature:
Stamford Alternator:
Model HCI544F
| Alternator brand | Stamford |
| Rated Power (kw) | 536 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
feature:
Control System:
Deep Sea: DSE4620

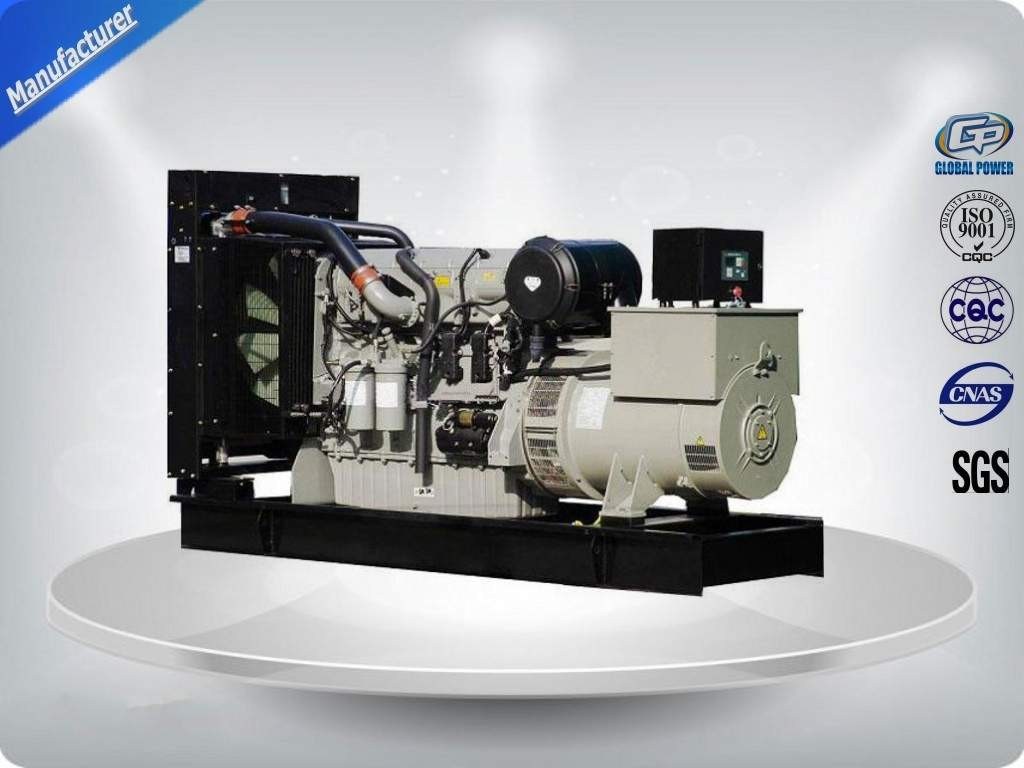

Our Picture :
Our Features :
1) Universal design and manufacture
2) Engineers are familiar with diesel generators powered by Perkins engine.
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door
Our advantages :
1.Inspection
1. Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2. All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
Our Service :
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
