800kva Brushless Diesel Engine Generator Set 50hz / 60 Hz With Cummins Pekrins Engine

800kva Brushless Diesel Engine Generator Set 50hz / 60 Hz With Cummins Pekrins Engine

Our Features :

• Universal design and manufacture
• Engineers are familiar with diesel generators powered by Perkins engine.
• You could find spare-parts easily.
• Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
• Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
• Enclosed muffler for added quietness
• Service and maintenance accessible through easy-latch side service door

Our advantages :
1.Inspection

1. Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.

2. All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.

3. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.


Technical Specifications :


Perkins Engine:

Model                                 4006-23TAG3A


feature:

• Six-cylinder, water-cooled, in-line diesel engine
• Efficient fuel system for max power output and durability
• Large-capacity air cleaner
• Cost effective, fuel efficient and reliable performance
• Functional engine with compact structure
• Excellent after-sales service and sufficient spare parts supplying
• Easy installation and ready access for routine maintenance

Stamford Alternator:

 Model                                   HCI634G


feature:

• Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
• 2/3 pitch winding as standard, to avoid excessive neutral currents
• Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
• Easy access for installation and maintenance
• IP23 as standard
• Self-excited control system
• Resist of corruption of oil and acid


Control System:

Deep Sea: DSE4620

• Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
• Security password-protected programming levels
• All parameters use digital modulation, with higher reliability and stability
• Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
• Power supply range is wide, accommodating to different starting battery voltage environment
• Built-in watch dog can never be dead halt, ensuring smooth program execution
• Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

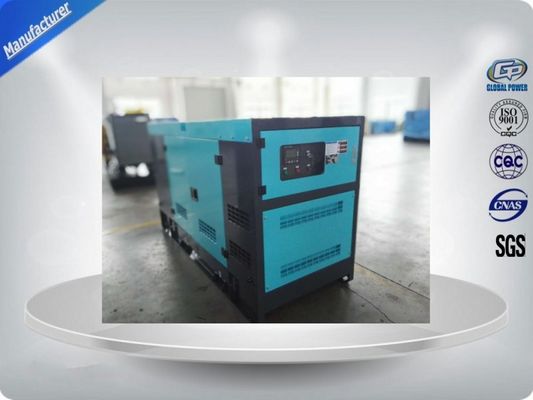

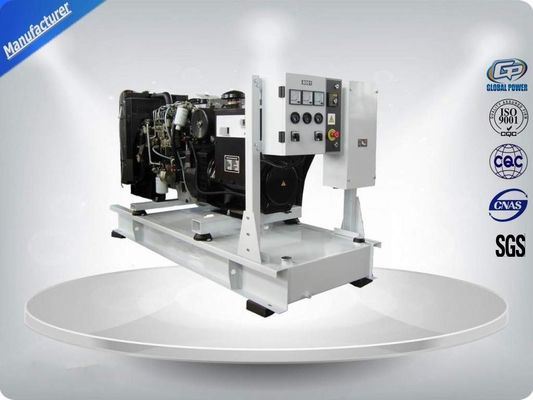

Our Picture :

Standard Supply Scope:

• Advanced design and excellent processed: The engine with strong power, can adapt to any condition, such as high strength and heavy load.
• Integrated design: The cylinder block and head are designed as multi-funtional parts so that the number of the partshas reduced 40% compare with competitive engines. The failure rate has markedly reduced.
• Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame .
• Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
• Documents included: manual book, product qualified card

Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
