Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Cummins | Engine Model: | KTA50-G3/1087 |
|---|---|---|---|
| Output Power (kw): | 1087 | Rated Voltage (V): | 400 / 230 |
| Speed Governing: | Electronic | Rated Current (A): | 1801 |
| Engine Speed (r/min): | 1500 | Cooling System: | Water-cooled |
| Highlight: | gas turbine generator set,gas powered generators |
||

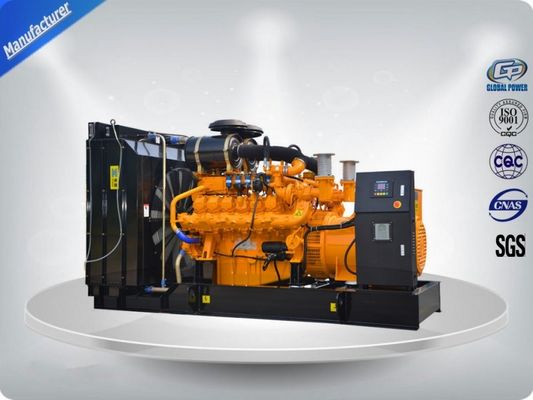

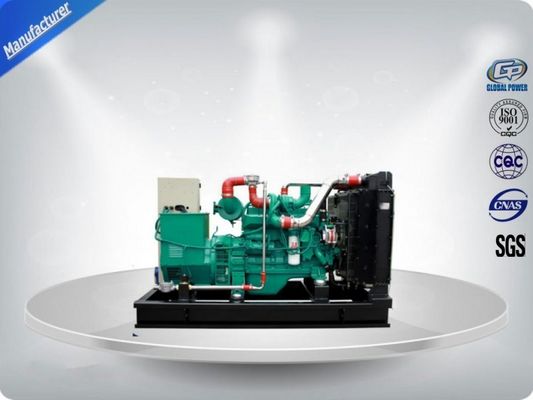

Cummins 50hz / 60hz AC Three Phase Diesel Generator 30-1500kw Gas Generator 6 Cylinder
| gas generator Benefits |
| * Fast---Short delivery cycles, professional and modular installation and debugging, multi-dimensional technological support enable the generating set to be put into production rapidly. |
| * Clean---Gas generating set adopt the lean burn technology which can reduce the temperature for combustion and decrease the emission of NOx, leading to higher efficiency. It complies with the air quality laws and regulations almost in all areas without extra exhaust treatment devices. |
| * - Long-Life Expectancy – these critical parts such as engine, alternator, and controller are manufactured by leading companies, other part comes from reliable manufacturers, these sets guarantee long functional life, outstanding performance, and high efficiency |
| * Efficiency---It enjoys high motor startup capacity and a short recovery time for load change. The overhaul cycle for the generating set is no less than 20,000 hours. |
| * Easy availability of the spare parts is one of the factors that lead to quick maintenance. It is not difficult to get the engine generator spare parts in the market. |
| * Safe---It is equipped with special explosive-proof valves for gas. The smart control system can conduct real-time detections on the operation of the engine, including fire detection and status detection. It can also send alarm or shut down directly according to the type of failure. |
Technical Specifications :
|
Genset |
Prime Power (kw/kva) |
1000 /1250 |
|
|
Standby Power (kw/kva) |
1100/1375 |
||
|
Voltage Recovery Time |
≤1S |
||
|
Rated Current (A) |
1801 |
||
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
24V 100Ah |
||
|
Fuel Tank Capacity(L) |
/ |
||
|
Engine |
Engine brand |
Cummins |
|
|
Output Power (kw) |
1087 |
||
|
Cylinder No. & Config. |
16,in “V” |
||
|
Combustion System |
direct injection |
||
|
Compression Ratio |
13.9:1 |
||
|
Displacement (L) |
50.3 |
||
|
Bore X Stroke (mm) |
159*159 |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Electronic |
||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
|
Protection Grade |
IP23 |
||
Warranty and Maintenance:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
