Product Details:
Payment & Shipping Terms:
|
| Standvy Power: | 2000 Kw | Rated Voltage: | 400/230 V |
|---|---|---|---|
| Frequency: | 50/60 Hz | Rated Current: | 2880 A |
| Engine Cylinder: | 16 | Running Noise: | 75 Db(A)/7m |
| Regulation: | AVR | Cooling System: | Water-cooled |
| Highlight: | brushless synchronous generator,engine generator set |
||
Stand by 2000 kw open type generators, 50 hz three phase diesel engine continous work
Applications:
Home, Buildings, Hospitals, Train station, Bank, Telecom, Mining, Military, Outdoor projects, etc.
Technical Specifications :
Genset:
| Prime Power (kw/kva) | 1800/2250 |
| Standby Power (kw/kva) | 2000/2500 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 3240 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 24V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 5000*2200*2550 |
| Open Type-Weight (kg) | 10000 |
| Soundproof Type- Dimension (L*W*H) (mm) | / |
| Soundproof Type-Weight (kg) | / |
| Fuel Tank Capacity(L) | / |
| Continuous Running Time(hr.) | 6 |
Engine:
Main features:
Model 4016-61TRG3
| Output Power (kw) | 1684 |
| Cylinder No. & Config. | 16 in “V” |
| Combustion System | direct injection |
| Compression Ratio | 13.6:1 |
| Displacement (L) | 61.123 |
| Bore X Stroke (mm) | 160*190 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 260(Temp.) / 270(Trop.) |
| Fuel Consump. (g/kw·h) | 205 |
| Oil Capacity (L) | 237.2 |
Alternator:
Main features:
Model PI734G
| Rated Power (kw) | 1760 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control System:
1. Manual control system, the basic type control system is provided with a current meter, a volmeter, a frequency meter, an oil pressure guage, a water thermometer and indicator lights on the control cabinet and 4 additional protection fuctions are to be provided as required by customers.
2. AST (Automatic Start Type Control System), Optional Automatic Start Type System is provided When there is an interruption in the commercial power supply (or there is a start signal in other generator sets), this generator set will, subject to time delay acknowledgement (0-30 S adjustable), be automatically started (1-8 times adjustable). In addition, it is provided with a basic protection function and digital or meter indication of voltage, current, frequency and rotation speed parameters.
3. ATS (Automatic Transfer System), The optional system is provided with a fully automatic transfer switch, a control electric apparatus and an indicator light on the control panel and is coordinated with an automatic type contral cabinet, thus serving the fuction of automatic changeover between the power supplied by the grid and the power generated by the genset.
4. Sync Parallel Control System, this control system can connect 2 or 3 or 4 gensets to make more larger power. such as: if you want 1000kw power, you can choose 2 sets 500kw gensets to work together, using this control system can make 1000kw power.

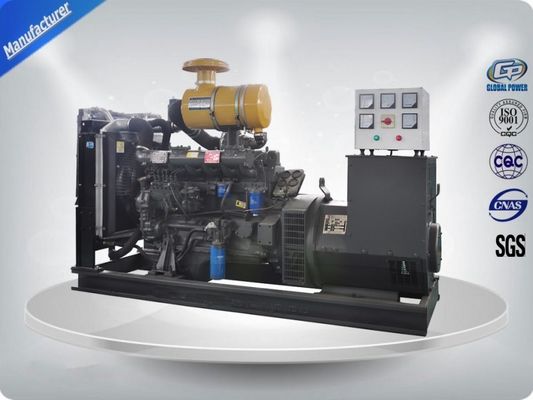

Our Picture :
Inspection and Test:
Test before shippment:
Guarantee for Our Generators:
