Product Details:
Payment & Shipping Terms:
|
| Rated Power: | 50/60 Kw.kva | Engine Brand: | Doosan |
|---|---|---|---|
| Engien Model: | DB58 | Rated Voltage: | 400/230 |
| Frequency: | 50 Hz | Cylinder No. & Config.: | 6, In-line |
| Combustion System: | Direct Injection | Compression Ratio: | 17.5:1 |
| Highlight: | marine diesel genset,power generating sets |
||

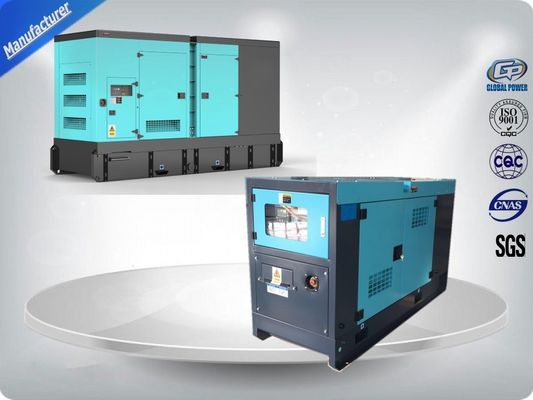

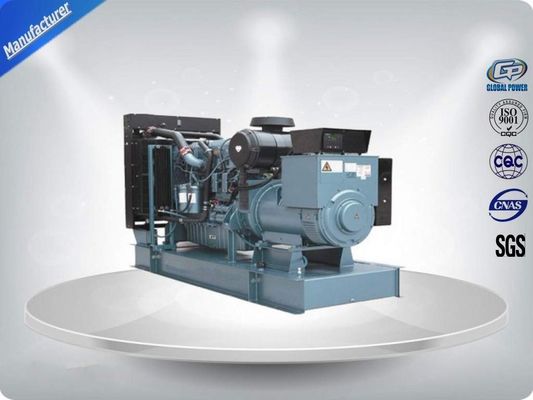

Doosan 50kw diesel generator 1500 rpm, 400 V rated power generator set 50 Hz
Features and benefits:
Technical Specifications :
Genset:
| Prime Power (kw/kva) | 50/63 |
| Standby Power (kw/kva) | 55/69 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 90 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 2290*830*1210 |
| Open Type-Weight (kg) | 980 |
| Soundproof Type- Dimension (L*W*H) (mm) | / |
| Soundproof Type-Weight (kg) | / |
| Fuel Tank Capacity(L) | / |
| Continuous Running Time(hr.) | 8 |
Engine:
Main features:
Model DB58
| Engine brand | Doosan |
| Output Power (kw) | 54 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 17.5:1 |
| Displacement (L) | 5.785 |
| Bore X Stroke (mm) | 102*118 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 31 |
| Fuel Consump. (g/kw·h) | 218.8 |
| Oil Capacity (L) | 19 |
Alternator:
Main features:
Model UCI224E
| Rated Power (kw) | 48 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Controller features:
Our Picture :
Our advantages :
1.Inspection
1. Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2. All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
