Prime Power 200 Kva Diesel Generator , Doosan Water Cooled Diesel Generator

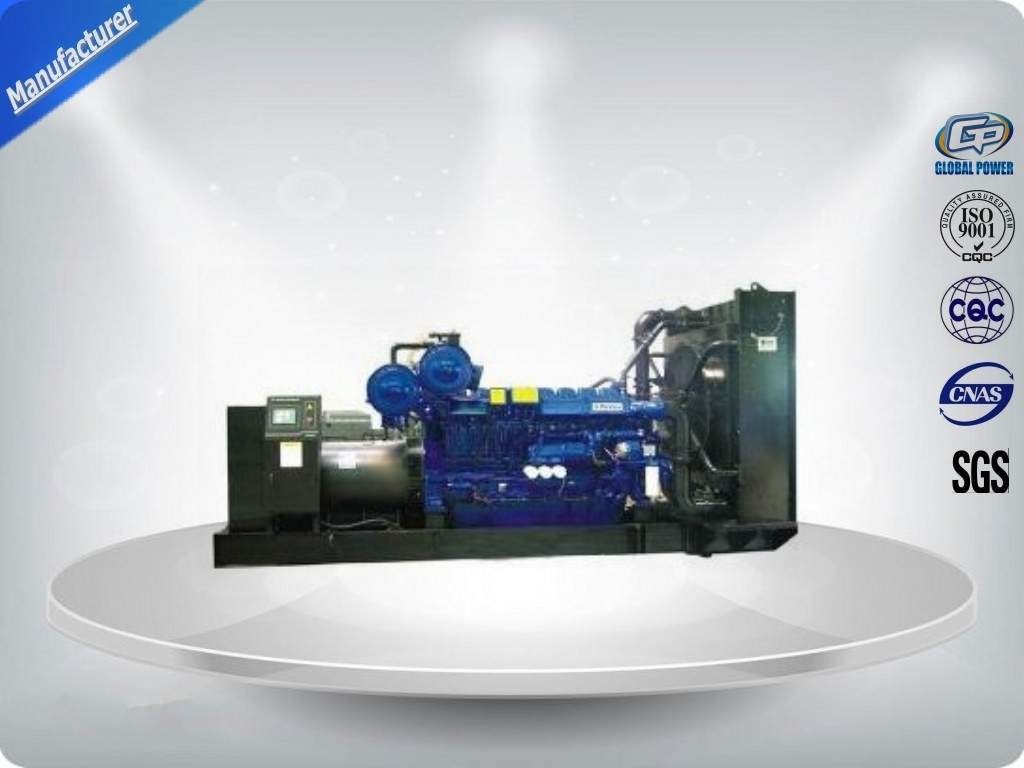

Large Image : Prime Power 200 Kva Diesel Generator , Doosan Water Cooled Diesel Generator

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	CE / ISO
Model Number:	GP DS160

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiable
Packaging Details:	plastic foam or plywood case packing
Delivery Time:	25 days after receiveing the down-payment
Supply Ability:	2000 sets / year

Contact Now

Detailed Product Description

Prime Power:	160/200 Kw/kva	Engine:	Doosan P086TI
Alternator:	Stamford UCI274H	Frequency:	50 Hz
Starting System:	8 Hr.	Cylinder No. & Config.:	24V DC Electric
Engine Speed:	1500 Rpm	Filter System:	Dry Oil Filter/Fuel Filte
Highlight:	marine diesel genset , power generating sets

Prime power 200 kva diesel generator, Doosan water-cooled 160 kw genset

Technical Specifications :
Genset:

Prime Power (kw/kva)	160/200
Standby Power (kw/kva)	176/220
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	289
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	12V 100Ah
Open Type-Dimension (LWH) (mm)	27309501520
Open Type-Weight (kg)	1950
Soundproof Type- Dimension (LWH) (mm)	/
Soundproof Type-Weight (kg)	/
Fuel Tank Capacity(L)	/
Continuous Running Time(hr.)	8

Engine:

Main features:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

Model P086TI

Engine brand	Doosan
Output Power (kw)	177
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Compression Ratio	16.4:1
Displacement (L)	8.071
Bore X Stroke (mm)	111*139
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	44
Fuel Consump. (g/kw·h)	207
Oil Capacity (L)	15.5

Alternator:

Main features:

Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
2/3 pitch winding as standard, to avoid excessive neutral currents
Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
Easy access for installation and maintenance
IP23 as standard
Self-excited control system
Resist of corruption of oil and acid

Model UCI274H

Alternator brand	Stamford
Rated Power (kw)	160
Excitation System	Brushless, self-exciting
Voltage Regulation Mode	AVR
Connection Type	3phase,4wires,”Y” connection
Pole No.	4
Rotation Speed (r/min)	1500
Temperature Rise (℃)	125
Insulation class	H
Voltage Regulation (0 load)	≥95%～105%
Voltage accuracy	≤±1%
Protection Grade	IP23
Telephone Influence Factor	TIF＜50
Harmonic Coefficient	THF＜2%

Controller features:

Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
Security password-protected programming levels
All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
Power supply range is wide, accommodating to different starting battery voltage environment
Built-in watch dog can never be dead halt, ensuring smooth program execution
Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

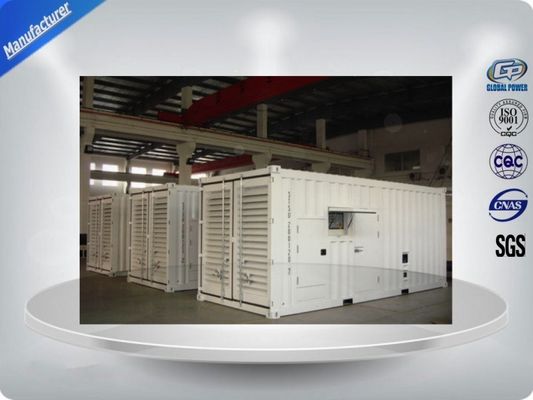

Our Picture :
Prime Power 200 Kva Diesel Generator , Doosan Water Cooled Diesel Generator

Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.

Inspection and Test:

Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment rejected shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.
Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the purchasers satisfaction at the manufacturers cost.
The engine and generator shall be tested individually in accordance with relevant standards specified above.
The completed and individually tested engine and generator shall be assembled onto the base plate with all auxiliaries, instruments and controls for a complete test of the generator set.

Test before shippment:

Each Generator Set shall be put into commission more than 4 hours totally, tested on idle load, fully load and 10% overload
Noise level shall be tested.
All of the meters on the control panel shall be tested.
The appearance of the Set and the label, nameplate shall be tested. "
Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.

Guarantee for Our Generators:

Guarantee Period: One year or 1000hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
24 hours service hot-line is available for customers.

Invitation to visit our factory:

If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.

Our factory locates in Wuxi City, just 30 minutes away from Shanghai.

When you come to Shanghai or Wuxi, we can send cars to pick you up and take you to our factory.

In the factory we can discuss more about the cooperation and we will listen to your requirements.
