Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 500KW | Engine Brand: | Volvo |
|---|---|---|---|
| Alternator Brand: | Stamford | Battery Capacity: | 12V 100Ah |
| Continuous Running Time: | 6hr. | Cylinder No. & Config.: | 6, In-line |
| Engine Speed: | 1500rpm | Cooling System: | Water-cooled |
| Highlight: | marine diesel genset,power generating sets |
||

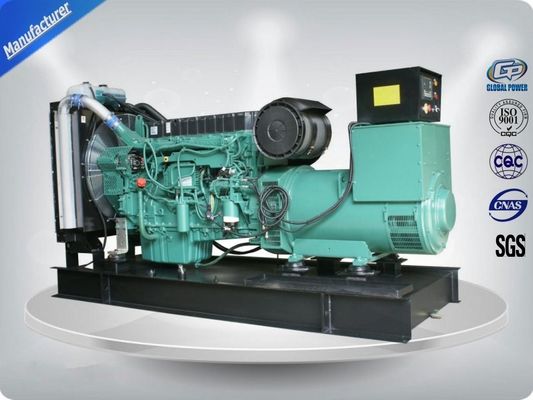

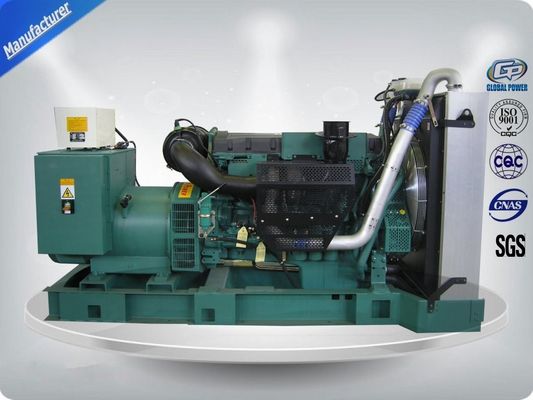

500kW/625kVA Open Diesel Generator With Customer Loved Volvo Engine TWD1643GE
The generator set is powered by Weifang engine, and is made up of diesel engine, synchronous generator, control system, radiator and other accessories, and the control system is made up of volt meter, frequency meter, a.c. ampere meter, d.c. ampere meter, water temperature meter,oil temperature meter, oil pressure meter, fuel meter, contoller for protection, transfer switch system and other accessories. Different starting type including manaul&electric&auto. Transfer can be selected by customer.
Technical Specifications:
Genset:
| Prime Power (kw/kva) | 500/625 |
| Standby Power (kw/kva) | 550/688 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 900 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 3450*1400*1930 |
| Open Type-Weight (kg) | 3850 |
| Soundproof Type- Dimension (L*W*H) (mm) | 4700*2200*2450 |
| Soundproof Type-Weight (kg) | / |
| Fuel Tank Capacity(L) | / |
| Continuous Running Time(hr.) | 8 |
Engine:
Main features:
Model TWD1643GE
| Engine brand | Volvo |
| Output Power (kw) | 536 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 16.5:1 |
| Displacement (L) | 16.12 |
| Bore X Stroke (mm) | 144*165 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Mechanical |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 95 |
| Fuel Consump. (g/kw·h) | 198 |
| Oil Capacity (L) |
48
|
The generator sets also can adopt fuel box at bottom, controller with four protections (high water temperature, high oil temperature, low oil pressure, over speed); also can design for silent, fully automatic transfer and automatic parallel system.
Alternator:
Main features:
Model HCI544FS
| Alternator brand | Stamford |
| Rated Power (kw) | 500 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Features and benefits
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
Our Picture :
Control system
1.Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
2.Security password-protected programming levels
3.All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
4 Power supply range is wide, accommodating to different starting battery voltage environment
5Built-in watch dog can never be dead halt, ensuring smooth program execution
6.Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
