Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Cummins | Engine Model: | KTAA19-G6A/527 |
|---|---|---|---|
| Rated Voltage (V): | 400 / 230 | Speed Governing: | Electronic |
| Rated Current (A): | 900 | Displacement: | 19L |
| Cylinder: | 6 | Weight: | 6200kg |
| Highlight: | Emergency Generator Set,power generating sets |
||

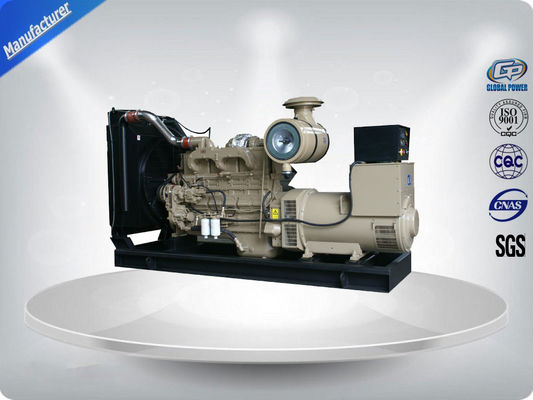

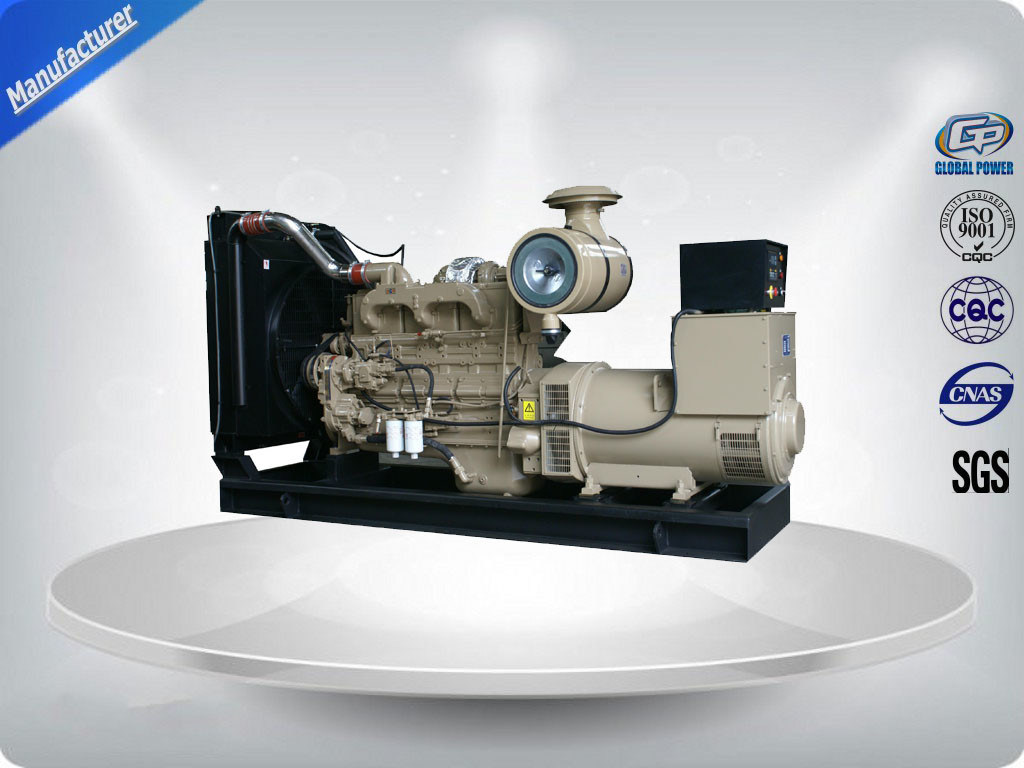

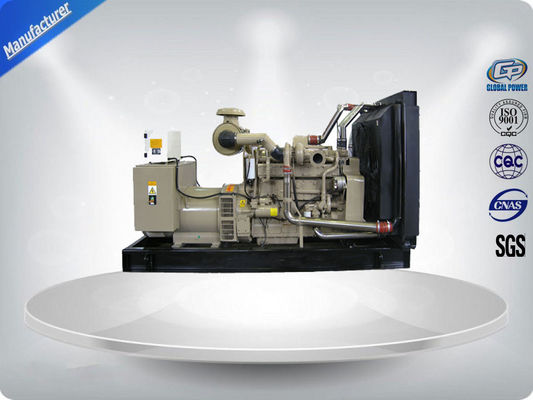

500KW/625KVA Cummins Diesel Generator with Stamford alternator HCI544FS/500
Technical Specifications :
|
Genset |
Prime Power (kw/kva) |
500/625 |
|
|
Standby Power (kw/kva) |
550/688 |
||
|
Voltage Recovery Time |
≤1S |
||
|
Rated Current (A) |
900 |
||
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
12V 100Ah |
||
|
Fuel Tank Capacity(L) |
/ |
||
|
Engine |
Engine brand |
Cummins |
|
|
Output Power (kw) |
527 |
||
|
Cylinder No. & Config. |
6,in “V” |
||
|
Combustion System |
direct injection |
||
|
Compression Ratio |
13.0:1 |
||
|
Displacement (L) |
18.9 |
||
|
Bore X Stroke (mm) |
159*159 |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Electronic |
||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
|
Protection Grade |
IP23 |
||
Generator soundproof/Silent and canopy
Application: home,buliding,hospital,bank and so on.
Our service:
Our advantages :
1. Inspection
Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
