Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Cummins | Engine Model: | 4BTA3.9-G2 |
|---|---|---|---|
| Cooling System: | Water-cooled | Prime Power: | 50KW/63KVA |
| Alternator Brands: | Stamford | Rated Current: | 90A |
| Output Type: | AC Three Phase | Speed: | 1500rpm |
| Highlight: | Emergency Generator Set,power generating sets |
||

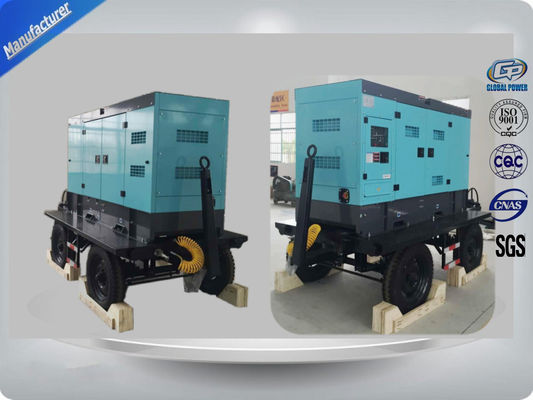

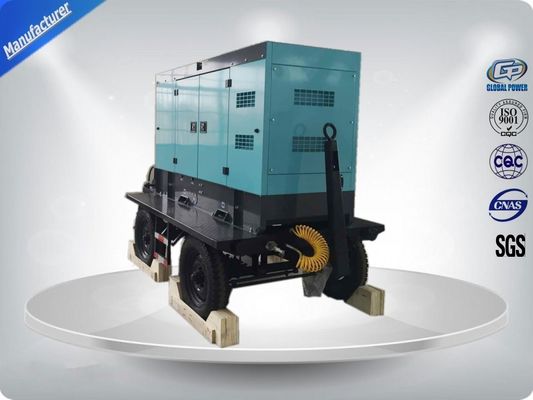

50Kw/63Kva Mobile Soundproof Trailer Diesel Generator Set With Stamford Alternator UCI224E
Trailer Feature:
Common steel base frame, Circuit breaker, Damper, Exhaust silencer, Flexible pipe, Battery and connecting wires, Operation manual and document.
Optional Accessory
Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, Soundproof Canopy and Moving Trailer.
ATS SYSTEM
For emergency power usage in building, Auto transfer switch (ATS) is essential. ATS can automatic transfer load from Mains power supplying to Emergency power. In normal, when the Main power supplying failure or voltage drop below 80% of normal voltage, ATS will auto start Emergency generator set after a preset time of 0-10 sec (adjustable according to the users). Once generator reach at rated speed, the ATS will transfer the load to emergency generator sets automatically.
Technical Specifications :
| Genset | Voltage Recovery Time | ≤1S | |
| Rated Frequency (Hz) | 50 | ||
| Frequency Recovery Time | ≤5S | ||
| Running Noise db(A)/7m(Silent type) | 75 | ||
| Battery capacity (V-Ah) | 24V 100Ah | ||
| Fuel Tank Capacity(L) | 100 | ||
| Engine | Engine brand | Cummins | |
| Output Power (kw) | 50 | ||
| Combustion System | direct injection | ||
| Engine Speed (r/min) | 1500 | ||
| Speed Governing | Electronic | ||
| Starting System | 24V DC Electric | ||
| Filter System | Dry oil filter/Fuel filter/Oil filter | ||
| Cooling system | Water-cooled | ||
| Alternator | Alternator brand | Stamford | |
| Excitation System | Brushless, self-exciting | ||
| Voltage Regulation Mode | AVR | ||
| Connection Type | 3phase,4wires,”Y” connection | ||
| Pole No. | 4 | ||
| Rotation Speed (r/min) | 1500 | ||
| Temperature Rise (℃) | 125 | ||
| Insulation class | H | ||
| Voltage Regulation (0 load) | ≥95%～105% | ||
Our advantages :
1.Inspection
1. Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2. All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
Our Service :
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
Similar products:
Deutz diesel generator, Perkins generator set, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
