Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | FAWDE | Prime Power: | 180KW |
|---|---|---|---|
| Rated Current: | 324A | Alternator Brand: | Meccalte |
| Cooling System: | Water-cooled | Displacement: | 8.57L |
| Weight: | 2050KG | Oil Capacity: | 30L |
| Highlight: | marine diesel genset,power generating sets |
||

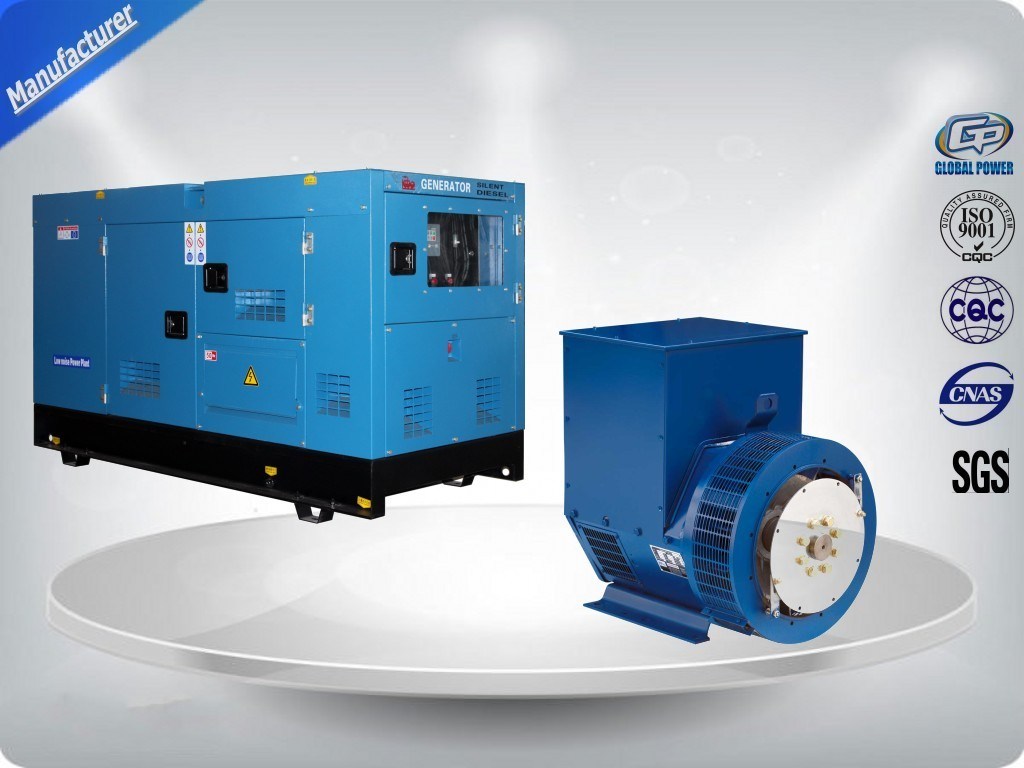

180Kw Diesel Generator Set With FAWDE Engine CA6DL2-27D Water-cooled Cooling system
Features and benefits:
Technical Specifications :
Genset:
| Prime Power (kw/kva) | 180/225 |
| Standby Power (kw/kva) | 200/250 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 324 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 2700*1000*1550 |
| Open Type-Weight (kg) | 2050 |
| Soundproof Type- Dimension (L*W*H) (mm) | 3900*1350*1800 |
| Soundproof Type-Weight (kg) | / |
| Fuel Tank Capacity(L) | / |
| Continuous Running Time(hr.) | 8 |
Engine:
Main features:
Model CA6DL2-27D
| Output Power (kw) | 205 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | / |
| Displacement (L) | 8.57 |
| Bore X Stroke (mm) | 112*145 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | / |
| Fuel Consump. (g/kw·h) | 195 |
| Oil Capacity (L) | 30 |
Alternator:
Main features:
Model ECO38-3S4A
| Rated Power (kw) | 180 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Controller features:
Q1: Any advantages about your company?
-- Fast delivery time
-- Good design and high quality
-- Good service after sale
-- High quality with good price help you get more benefit and beat your competitors
Q2: Can you supply OEM service?
Yes, we can offer OEM service
Q3: How about the service after sale?
We have agents spread all over the world, our service network spanning more than 50 countries so we can ensure fast and good service for our clients. We are recruiting agents, welcome you to be our friend and get a win-win cooperation .
Our advantages :
1.Inspection
1. Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2. All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
Our Service :
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
Similar products:
Deutz diesel generator, Cummins generator set, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
