Product Details:
Payment & Shipping Terms:
|
| Engine: | Cummins | Alterator: | Meccalte |
|---|---|---|---|
| Prime Power: | 280KW | Rated Current: | 505A |
| Frequency Recovery Time: | ≤5S | Battery Capacity: | 24V 100Ah |
| Fuel Tank Capacity: | 600L | Rated Voltage: | 400/230V |
| Highlight: | Emergency Generator Set,power generating sets |
||

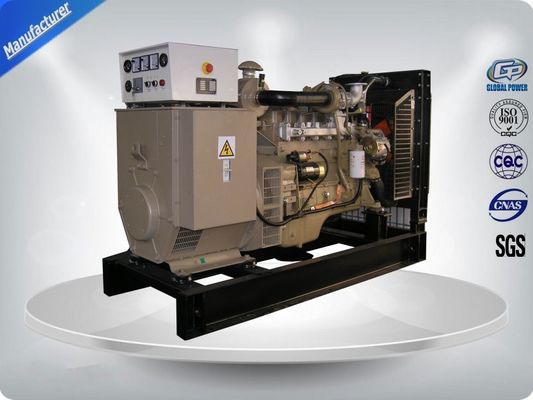

50HZ,280KW/350KVA,Cummins Diesel generator with Meccalte Alterator
Features and benefits
1. Tightly structure, excellent design and craft
2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
3. Self-diagnostic capability simplifies troubleshooting
4. LCD display shows system status and setup information
5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality

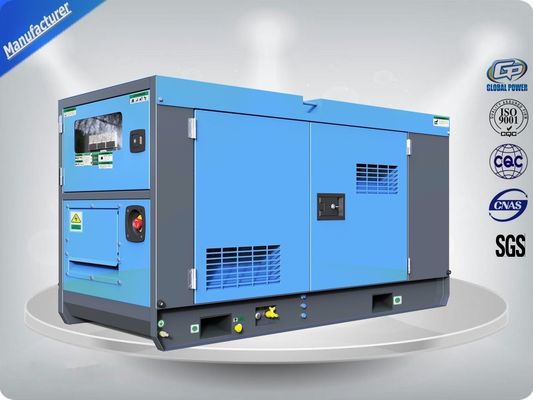

6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
7. Enclosed muffler for added quietness
8. Service and maintenance accessible through easy-latch side service door
Technical Specifications :
Diesel Generator GPC280 (three phase)
| Prime Power (kw/kva) | 280/350 |
| Standby Power (kw/kva) | 308/385 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 504 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 24V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 3035*1000*1750 |
| Open Type-Weight (kg) | 3035 |
| Soundproof Type- Dimension (L*W*H) (mm) | 4100*1400*2100 |
| Soundproof Type-Weight (kg) | 7335 |
| Fuel Tank Capacity(L) | 600 |
| Continuous Running Time(hr.) | 8 |
Engine
Main features:
1. Six-cylinder, water-cooled, in-line diesel engine
2. Efficient fuel system for max power output and durability
3. Large-capacity air cleaner
4. Cost effective, fuel efficient and reliable performance
5. Functional engine with compact structure
6. Excellent after-sales service and sufficient spare parts supplying
7. Easy installation and ready access for routine maintenance
Model NTA855-G2A
| Engine brand | Cummins |
| Output Power (kw) | 313 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 14.0:1 |
| Displacement (L) | 14 |
| Bore X Stroke (mm) | 140*152 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 69.8 |
| Fuel Consump. (g/kw·h) | 192.6 |
| Oil Capacity (L) | 36.7 |
Alternator
Main features:
1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
2. 2/3 pitch winding as standard, to avoid excessive neutral currents
3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
4. Easy access for installation and maintenance
5. IP23 as standard
6. Self-excited control system
7. Resist of corruption of oil and acid
Model ECO38-3LN/4
| Alternator brand | Meccalte |
| Rated Power (kw) | 280 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
DSE4620 controller
Main features:
1. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
2. Security password-protected programming levels
3. All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
4. Power supply range is wide, accommodating to different starting battery voltage environment
5. Built-in watch dog can never be dead halt, ensuring smooth program execution
6. Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Q1: Any advantages about your company?
-- Fast delivery time
-- Good design and high quality
-- Good service after sale
-- High quality with good price help you get more benefit and beat your competitors
Q2: Can you supply OEM service?
Yes, we can offer OEM service
Q3: How about the service after sale?
We have agents spread all over the world, our service network spanning more than 50 countries so we can ensure fast and good service for our clients. We are recruiting agents, welcome you to be our friend and get a win-win cooperation .
Our advantages :
1.Inspection
1. Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2. All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
Our Service :
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
Similar products:
Deutz diesel generator, Cummins generator set, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
