Product Details:
Payment & Shipping Terms:
|
| Prime Power (kw/kva): | 8/10 | Standby Power (kw/kva): | 9/11 |
|---|---|---|---|
| Model Number: | GP P10 | Engine Brand: | Perkins |

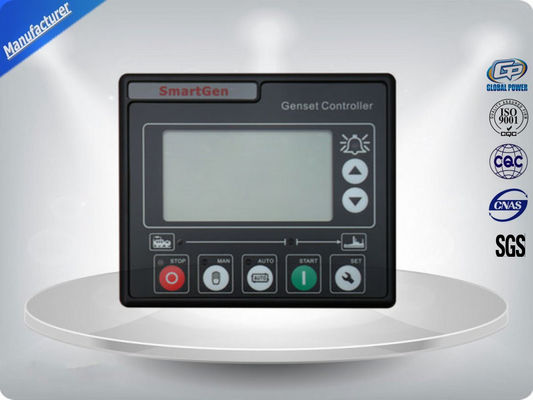

| Alternator Brand: | Standford, Meccalte, Global Power | Controller Band: | Smartgen |
| Highlight: | Emergency Generator Set,power generating sets |
||

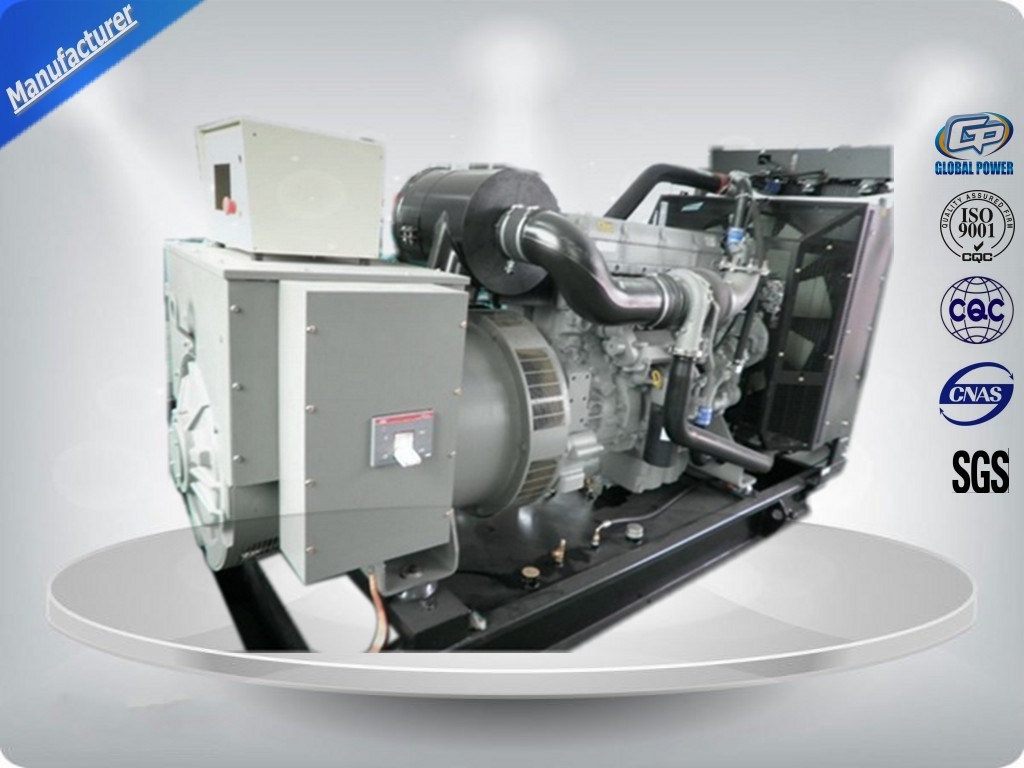

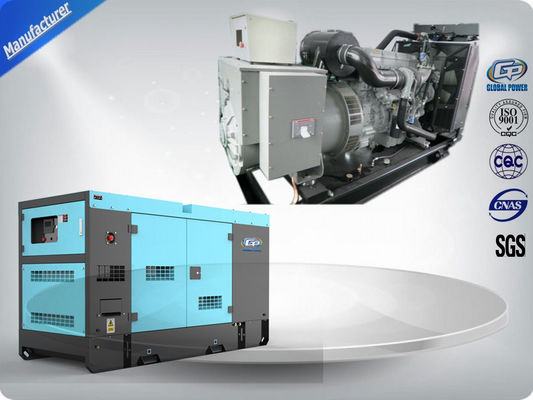

Small Diesel Generator Set 8KV / 10KVA Perkins Engine
Model: GPP10
Generator data
Diesel Generator GPP10 (three phase)
| Prime Power (kw/kva) | 8/10 |
| Standby Power (kw/kva) | 9/11 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 14.4 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 1150*500*950 |
| Open Type-Weight (kg) | 380 |
| Soundproof Type- Dimension (L*W*H) (mm) | 1800*750*1120 |
| Soundproof Type-Weight (kg) | 700 |
| Fuel Tank Capacity(L) | 80 |
| Continuous Running Time(hr.) | 8 |
Features and benefits:
1. Tightly structure, excellent design and craft
2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
3. Self-diagnostic capability simplifies troubleshooting
4. LCD display shows system status and setup information
5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
7. Enclosed muffler for added quietness
8. Service and maintenance accessible through easy-latch side service door
Product Display
Engine specifications:
Technical data
Model 403A-15G1
| Engine brand | Perkins |
| Output Power (kw) | 12 |
| Cylinder No. & Config. | 3, in-line |
| Combustion System | Indirect injection |
| Compression Ratio | 22.5:1 |
| Displacement (L) | 1.496 |
| Bore X Stroke (mm) | 84*90 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Mechanical |
| Starting System | 12V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 6 |
| Fuel Consump. (g/kw·h) | 248 |
| Oil Capacity (L) | 6 |
Applications:
Home, Buildings, Hospitals, Train station,Bank, Telecom, Mining, Military, Outdoor projects, etc.
Main features:
1. Three-cylinder, water-cooled, in-line diesel engine
2. Efficient fuel system for max power output and durability
3. Large-capacity air cleaner
4. Cost effective, fuel efficient and reliable performance
5. Functional engine with compact structure
6. Excellent after-sales service and sufficient spare parts supplying
7. Easy installation and ready access for routine maintenance
Alternator specifications:
Technical data
Model PI044E
| Alternator brand | Stamford |
| Rated Power (kw) | 8 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Main features:
1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
2. 2/3 pitch winding as standard, to avoid excessive neutral currents
3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
4. Easy access for installation and maintenance
5. IP23 as standard
6. Self-excited control system
7. Resist of corruption of oil and acid
Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.when you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.
2. Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the purchasers satisfaction at the manufacturers cost.
3.Best service after shipment with email
4.Product Photo:before and after loading into container .
