Silent / Open Type Emergency Generator Set Diesel Power 750 Kwa / 600 Kw , Tightly Structure

Products

Mobile Light Tower

czh@global-powers.com

86-510-85748495

Contact Now

Silent / Open Type Emergency Generator Set Diesel Power 750 Kwa / 600 Kw , Tightly Structure

MOQ:	1 set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 working days after received down-payment
Supply Capacity:	2000 sets per year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

OEM/ISO9001

Model Number

GPC600

Prime Power:

600KV / 750KVA

Rated Voltage:

400V / 230V

Engine Brand:

Cummins

Engine Model:

KTA38-G2

Alternator Brand:

Standford

Alternator Model:

HCI634G

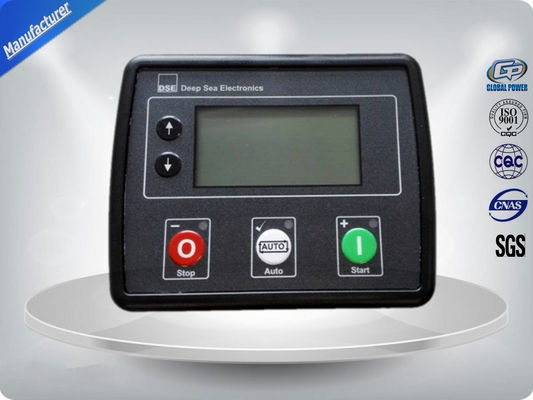

Control System:

DSE4620

Highlight:

silent diesel generator set

silent diesel electric generator

open diesel generator set

Product Description

Silent / Open Type Diesel Power 750 kwa / 600 kw Generator Set with Cummins Engine

Model: GPC600

Applications: Home, Buildings, Hospitals, Train station,Bank, Telecom, Mining, Military, Outdoor projects, etc.

Features and benefits:

1. Tightly structure, excellent design and craft

2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)

3. Self-diagnostic capability simplifies troubleshooting

4. LCD display shows system status and setup information

5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality

6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.

7. Enclosed muffler for added quietness

8. Service and maintenance accessible through easy-latch side service door

Diesel Generator GPC600 (three phase)

Prime Power (kw/kva)	600/750
Standby Power (kw/kva)	660/825
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	1082
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	12V 100Ah
Open Type-Dimension (LWH) (mm)	445016502400
Open Type-Weight (kg)	6500
Soundproof Type- Dimension (LWH) (mm)	600024002800
Soundproof Type-Weight (kg)	10400
Fuel Tank Capacity(L)	1200
Continuous Running Time(hr.)	6

Engine specifications

Technical data

Model KTA38-G2

Engine brand	Cummins
Output Power (kw)	664
Cylinder No. & Config.	12,in “V”
Combustion System	direct injection
Compression Ratio	14.5:1
Displacement (L)	38
Bore X Stroke (mm)	159*159
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	194
Fuel Consump. (g/kw·h)	200
Oil Capacity (L)	135

Alternator specifications

Technical data

Model HCI634G

Alternator brand	Stamford
Rated Power (kw)	648
Excitation System	Brushless, self-exciting
Voltage Regulation Mode	AVR
Connection Type	3phase,4wires,”Y” connection
Pole No.	4
Rotation Speed (r/min)	1500
Temperature Rise (℃)	125
Insulation class	H
Voltage Regulation (0 load)	≥95%～105%
Voltage accuracy	≤±1%
Protection Grade	IP23
Telephone Influence Factor	TIF＜50
Harmonic Coefficient	THF＜2%

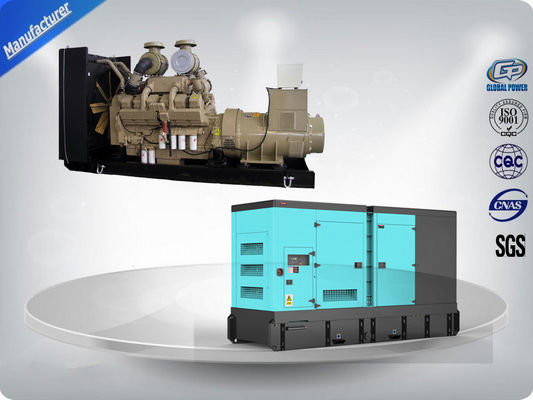

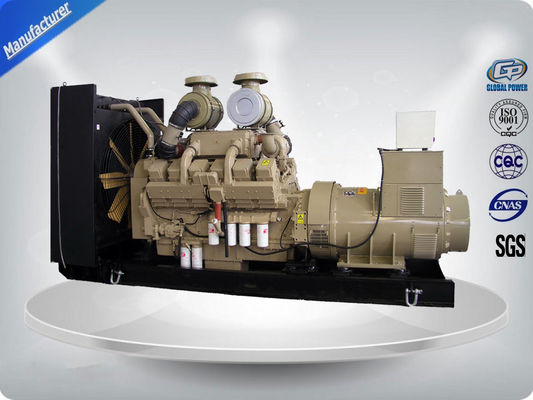

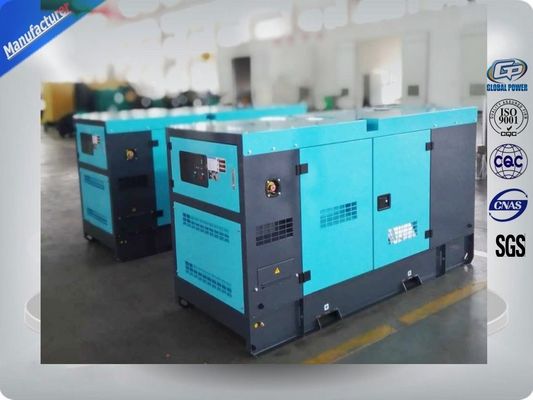

Product Displya

Silent / Open Type Emergency Generator Set Diesel Power 750 Kwa / 600 Kw , Tightly Structure 0

Silent / Open Type Emergency Generator Set Diesel Power 750 Kwa / 600 Kw , Tightly Structure 1

Silent / Open Type Emergency Generator Set Diesel Power 750 Kwa / 600 Kw , Tightly Structure 2

Product Quality Commitment

1. All products are new products, and meet the present national standard, international standard as well as the industrial standards

2. All products are manufactured according to the ISO9001 Quality Management System strictly.

3. All products are commissioned and tested strictly according to present standard.

4. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

5. All spare parts are original ones.

Service Commitment

1. Pre-sale service

Suggest the best choice or referential suggestion based on customer’s information. Offer the suggestion or service of the installation to customer if needed. Answer all questions about the product from customer.

2. Sale of service

Offer the installation index by the professionals. The training or relative files of the operation & maintenance to the customers.

3. After-sale service

Warranty time: one year or 1000 running hours, whichever comes first. Build customers’ profiles, follow-up service, make regular calls on customers.
