Product Details:
Payment & Shipping Terms:
|
| Engine Model: | Cummins KTA38-G2A | Rated Voltage: | 400V / 230V |
|---|---|---|---|
| Prime Power: | 913KWA / 730KW | Alternator Model: | Stanford HCI634H |
| Control System: | IL-NT-AMF25 | Open Type Size(MM): | 4450*1650*2400 |
| Weight(KG): | 6700 | ||
| Highlight: | brushless synchronous generator,brushless alternator generator |
||

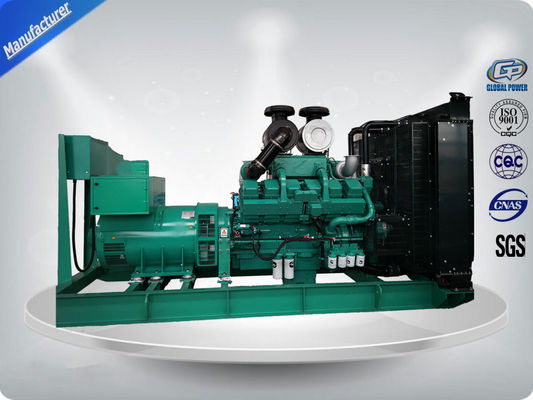

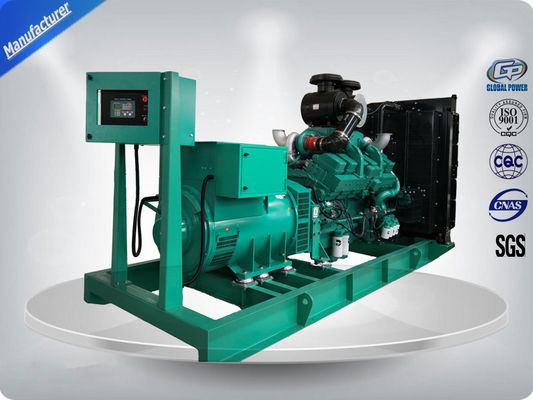

730 KW 900 KWA Diesle Genarator Set With Cummins Generator and Stanford Alternator High Efficiency Low Emission
Model: GPC730
Applications:
Global Power series products will be wide used for real estate, building, hotel, hospital, factory, railway, road, airport, sea port, bank, data center, telecom communication, mining plant, power plant, national grid, engineering etc.
Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery connecting wires, Operation manual and document.
Diesel Generator GPC730 (three phase)
Prime Power (kw/kva): 730/913
Standby Power (kw/kva): 803/1004
Rated Voltage (V): 400/230
Voltage Recovery Time: ≤1S
Rated Current (A): 1316
Rated Frequency (Hz): 50
Frequency Recovery Time: ≤5S
Wave Distortion: ≤5%, sine wave
Running Noise db(A)/7m(Silent type): 75
Battery capacity (V-Ah): 12V 100Ah
Open Type-Dimension (L*W*H) (mm): 4450*1650*2400
Open Type-Weight (kg): 6700
Soundproof Type- Dimension (L*W*H) (mm): 6000*2400*2800
Soundproof Type-Weight (kg): 10500
Fuel Tank Capacity(L): 1200
Continuous Running Time(hr.): 6
Engine specifications
Technical data
Model KTA38-G2A
Engine brand: Cummins
Output Power (kw): 813
Cylinder No. & Config.: 12,in “V”
Combustion System: direct injection
Compression Ratio: 14.5:1
Displacement (L): 38
Bore X Stroke (mm): 159*159
Engine Speed (r/min): 1500
Speed Governing: Electronic
Starting System: 24V DC Electric
Filter System: Dry oil filter/Fuel filter/Oil filter
Cooling system: Water-cooled
Coolant capacity (L): 194
Fuel Consump. (g/kw·h): 200
Oil Capacity (L): 135
Engine
Main Features:
1. Twelve-cylinder, water-cooled, in “V” diesel engine
2. Efficient fuel system for max power output and durability
3. Large-capacity air cleaner
4. Cost effective, fuel efficient and reliable performance
5. Functional engine with compact structure
6. Excellent after-sales service and sufficient spare parts supplying
7. Easy installation and ready access for routine maintenance
Alternator Specifications
Technical data
Model HCI634H
Alternator brand: Stamford
Rated Power (kw): 752
Excitation System: Brushless, self-exciting
Voltage Regulation Mode: AVR
Connection Type: 3phase,4wires,”Y” connection
Pole No.: 4
Rotation Speed (r/min): 1500
Temperature Rise (℃): 125
Insulation class: H
Voltage Regulation (0 load): ≥95%～105%
Voltage accuracy: ≤±1%
Protection Grade: IP23
Telephone Influence Factor: TIF＜50
Harmonic Coefficient: THF＜2%

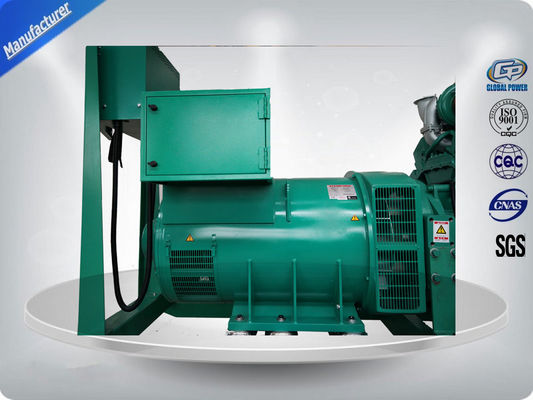

Alternator
Main features:
1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
2. 2/3 pitch winding as standard, to avoid excessive neutral currents
3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
4. Easy access for installation and maintenance
5. IP23 as standard
6. Self-excited control system
7. Resist of corruption of oil and acid
Product Display
Product Quality Commitment
1. All products are new products, and meet the present national standard, international standard as well as the industrial standards
2. All products are manufactured according to the ISO9001 Quality Management System strictly.
3. All products are commissioned and tested strictly according to present standard.
4. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
5. All spare parts are original ones.
