Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 226KW / 283KWA | Rated Voltage: | 380V / 220V |
|---|---|---|---|
| Engine Brand: | Cummins | Engine Model: | 6LTAA8.9-G3 |
| Alternator Brand: | Stanford | Alternator Model: | GPI274K |
| Highlight: | genset silent generator set,silent diesel genset |
||
Backup Power Silent Style Cummins 226 KW / 283 KVA Generator Set Low Fuel Consumption Low Noise
Model: GP1 C250
Be adopted the original Cummins and widely used in army,engineering,mining industry,lower fuel consumption,lower noise,low exhaust.
Detail specs of Cummins diesel generator set, engin and alternatoras separately follows:
| 1.Gen-set | |
| The model of the unit: | GP1C250 |
| Prime Power: | 226 KW / 283 KVA |
| Standby Power: | 250 KW / 313 KVA |
| Rated voltage: | 380 V / 220 V |
| Rated current: | 429 A (adjustable) |
| Rated frequency: | 60 Hz |
| The factor of rated power | COS=0.8(lag) |
| Speed: | 1800 RPM |
| Phase: | 3 PH |
| Net Weight: | 2850 KG |
| size(mm): | 3500*1300*1800 |
| 2.Engine | ||
| Brand: | Cummins | |
| Model: | 6LTAA8.9-G3 | |
| Type: | four strokes, waste gas turbine boost,direct spurting type | |
| Cooling way: | water cooling | |
| With Type: | Inline type | |
| Bore *Trip : | 114 mm * 145 mm | |
| Displacement | 8.9 L | |
| Oil capacity: | 27.6 L | |
| Cylinder: | 6 cylinders | |
| Rotating speed: | 1800 R / Min | |
| Starting way: | DC24V starting with electricity | |
| 3.Alternator | |
| Brand: | Stanford |
| Model: | GPI274K |
| Type: | brushless (AVR automatic voltage regulating) |
| The connecting way of the phase: | three phases four lines |
| Insulation degree: | H degree |
| Grading Protection: | IP23 |
Engine Feature
1. Six-cylinder, water-cooled, in-line diesel engine
2. Efficient fuel system for max power output and durability
3. Large-capacity air cleaner
4. Cost effective, fuel efficient and reliable performance
5. Functional engine with compact structure
6. Excellent after-sales service and sufficient spare parts supplying
7. Easy installation and ready access for routine maintenance
Alternator Feature
1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
2. 2/3 pitch winding as standard, to avoid excessive neutral currents
3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
4. Easy access for installation and maintenance
5. IP23 as standard
6. Self-excited control system
7. Resist of corruption of oil and acid
Control System Feature
1. manual / auto start and protection moudle
2. Equipped with Deep Sea,ComAp,Harsen,Smartgen famous control systems.
3. New integrated controllers in manual and remote start application.
4. Featuring full gen-set monitoring and protection.
5. Powerful graphic display, Icons, symbols and bar graphs
6. High functionality set new standards in gen-set control.

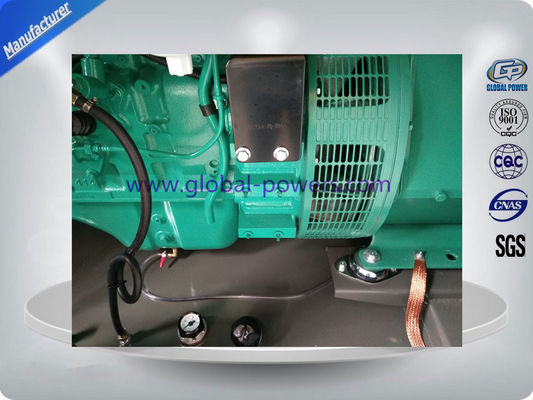

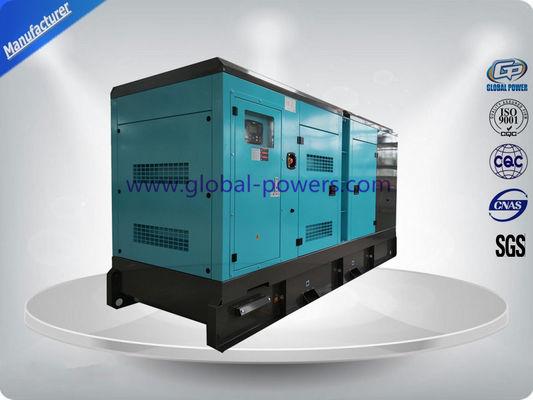

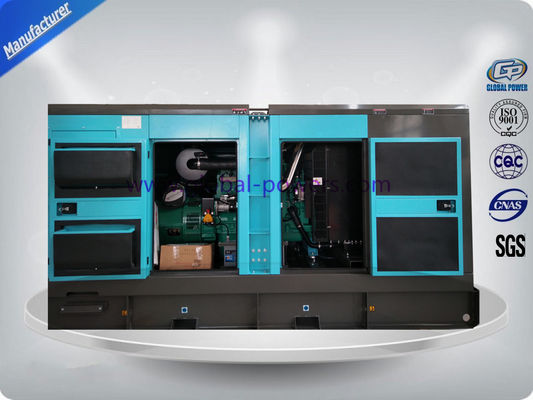

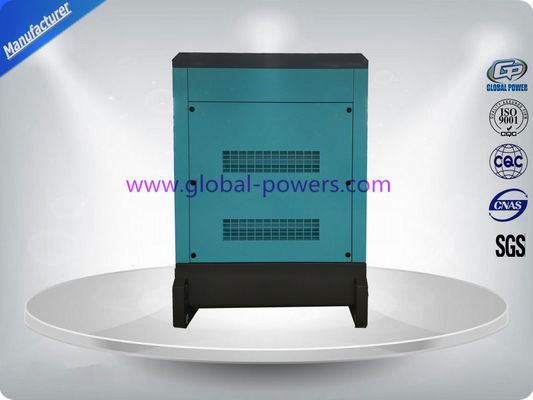

Product Display
Company profile
Wuxi Global Power Technology CO., Ltd. have been engaged in research, development, manufacture and sales of energy-saving and environment-friendly generating sets, related parts and supporting equipment.
Our company has passed the quality management system certification of ISO9000 and environmental management system certification of ISO14000, fully certified, full compliance with industry standards at domestic and abroad.
Global power, as a strategic partner and designated OEM manufacturer of American Cummins (CUMMINS), UK Perkins (PERKINS), Volvo (VOLVO), UK Stanford (STAMFORD) in China has been keeping a steady, friendly and long-term cooperation with world leading companies.
Product Quality Commitment
1. All products are new products, and meet the present national standard, international standard as well as the industrial standards
2. All products are manufactured according to the ISO9001 Quality Management System strictly.
3. All products are commissioned and tested strictly according to present standard.
4. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
5. All spare parts are original ones.
Service Commitment
1. Pre-sale service
Suggest the best choice or referential suggestion based on customer’s information. Offer the suggestion or service of the installation to customer if needed. Answer all questions about the product from customer.
2. Sale of service
Offer the installation index by the professionals. The training or relative files of the operation & maintenance to the customers.
3. After-sale service
Warranty time: one year or 1000 running hours, whichever comes first. Build customers’ profiles, follow-up service, make regular calls on customers.
