Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 1200KW / 1500KVA | Rated Voltage: | 400V / 230V |
|---|---|---|---|
| Engine Brand: | Cummins | Engine Model: | KTA38-G2A |
| Alternator Brand: | Standford | Alternator Model: | PI734 |
| Connection Type: | 3phase,4wires,”Y” Connection | ||
| Highlight: | Emergency Generator Set,power generating sets |
||
Cummins Diesel Generetor 1200 KW 1500 KVA High Performance Open Type
For Industrial backup power support. Great Power output, low fuel consumption and low displacement.
1 SET Diesel Generator Power Pack 1500KVA 1200KW 400V 50Hz
Placed in standard container
Cummins KTA38-G2A Engine and Stanford PI734 Generator
Generator data
Diesel Generator GPC1200 (three phase)
| Prime Power (kw/kva) | 1200/1500 |
| Standby Power (kw/kva) | 1320/1650 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 2161 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 5120*2253*2400 |
| Open Type-Weight (kg) | 10900 |
| Continuous Running Time(hr.) | 6 |
|
Engine: Make/Type: Cummins KTA50-GS8 |
Alternator: Make/Type: Stamford, Brushless Self-Exciting and regulating PI734C |
|
Output: 1287KW at 1500RPM No. of cyl. : 16V Cooling: Water cooled Governor: Electronic Compression Ratio: 14.9:1 Fuel Consump. (g/kw·h): 204 |
Rated Power: 1240 KW Connection Type: 3phase,4wires,”Y” connection Insul. Cl.: Class H Protection: IP23 Rotation Speed (r/min): 1500
|
Bed plate:
Both the engine and alternator on a steel welded base frame by means of anti-vibration mounting pads.
Coupling:
Flexible coupling between engine and alternator to avoid vibration

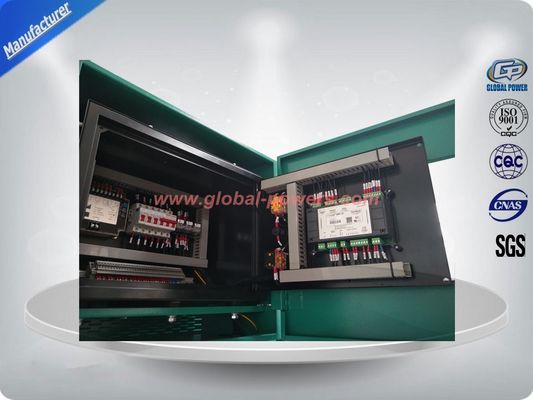

| Control panel: (mounted above the alternator, incorporated) |
|
* Engine instruments: - Oil pressure gauge - Temperature gauge - Start/Stop switch - Running hours counter - Engine protection (Temp. / Oil pres/ Speed/Cooling/ Water -level and overspeed) - Emergency Stop Push Button |
|
* Alternator Instruments: - Volt meter - 3 AMP. Meter - 1 Frequency meter - KW meter - Circuit breaker |

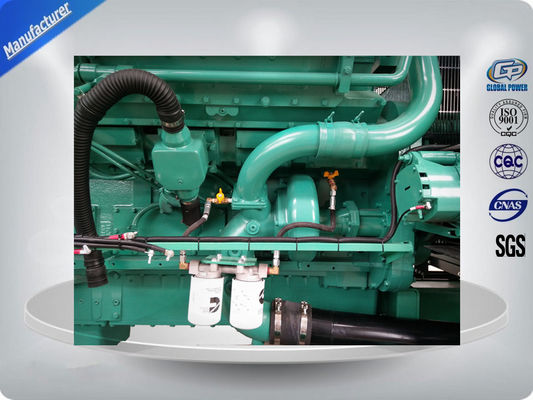

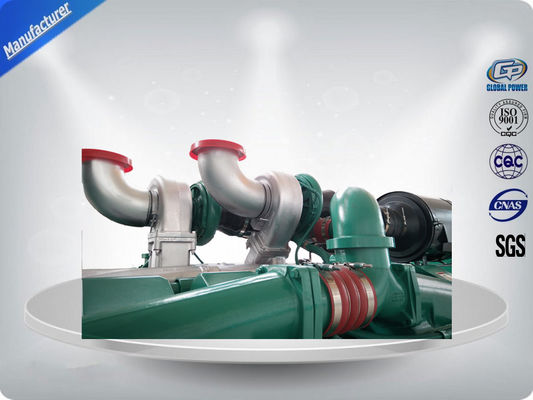

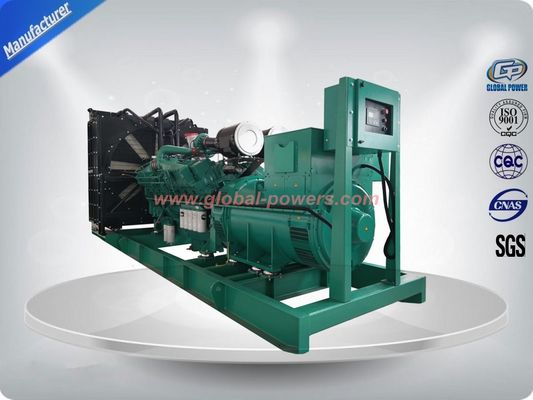

Product Displya
Product Quality Commitment
1. All products are new products, and meet the present national standard, international standard as well as the industrial standards
2. All products are manufactured according to the ISO9001 Quality Management System strictly.
3. All products are commissioned and tested strictly according to present standard.
4. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
5. All spare parts are original ones.
Service Commitment
1. Pre-sale service
Suggest the best choice or referential suggestion based on customer’s information. Offer the suggestion or service of the installation to customer if needed. Answer all questions about the product from customer.
2. Sale of service
Offer the installation index by the professionals. The training or relative files of the operation & maintenance to the customers.
3. After-sale service
Warranty time: one year or 1000 running hours, whichever comes first. Build customers’ profiles, follow-up service, make regular calls on customers.
