Product Details:
Payment & Shipping Terms:
|
| Engine: | MITSUBISHI | Model: | S12R, S16R Series |
|---|---|---|---|
| Prime Power: | 1375 KVA / 1100 KW -- 2250 KVA / 1800 KW | Alternator: | Stamford |
| Output Type: | AC Three Phase | Speed: | 1500 RPM |
| Cooling Method: | Water Cooled | Fuel: | Diesel |
| Highlight: | brushless alternator generator,engine generator set |
||

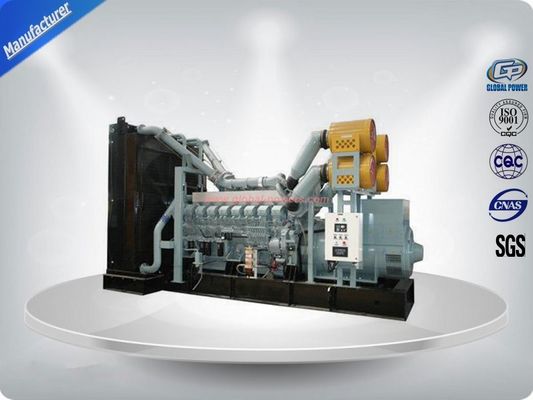

1375 KVA -- 2250 KVA Original Japanese MITSUBISHI Engine Diesel Power Generator Set Manufacturer Size / Price
MITSUBISHI GENERATOR
Automatic lubricating system and automatic gear-driven arrangement eliminate the need for lubrication and adjustments.
Filter changes are easily accomplished, and accessories requiring daily maintenance and are easy accessible.
Rationalised design concept based on simplicity. Thermal load reducing structure equipped with enhancing features guarantees engine reliability.
The use of standardised main components throughout the SR series reduces the number of engine parts and enables easier parts supply.
With the wider selection of engine models and optional equipment, Mitsubishi is your answer to a variety of needs.
True RMS measure of voltage and current.
Multi-Language menu.
With calendar and clock.
Event log and measuring parameters log with read time.
Exercise run schedule.
Genset maintenance schedule.
4 analog inputs for kinds of optional sensors, parameters also can be configured by user.
Flexible equipped with RS485, RS232 and USB, realizing remote monitor; or communicated with PC.
WithGPRS-DTU or Ethernet-DTU for remote communication instead of RS485, RS232, or USB port.
Optional ultra low temperature function, the ambient temperature is from -40 °C to 70 °C.

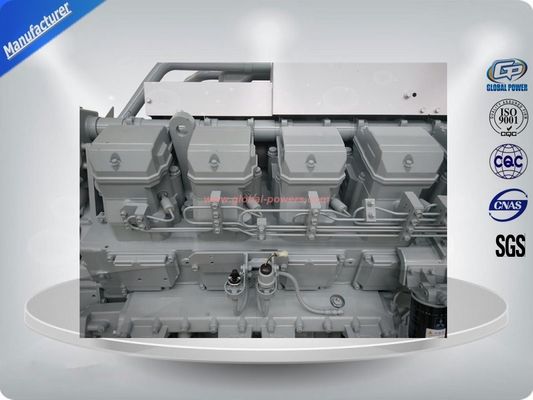

Mitsubishi 12-16-cylinder, water cooled, direct injection, heavy duty industrial diesel engines, delivers reliable power, low emissions, and fast response to load changes.

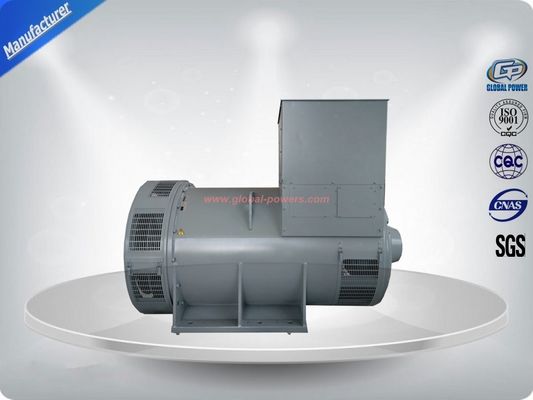

Stamford, Meccalte or Leroy Somer AC alternators. Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings; low waveform distortion with non-linear loads, fault clearing short-circuit capability, and class F or H insulation. PMG (option) Offers enhanced motor starting and fault clearing short circuit capability.
Mitsubishi series control panel as standard scope of supply is a new generation Automatic Mains (Utility) Failure module for single Genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory. The module also monitors and protects the engine, indicating operational status, fault conditions and metering on the front panel LCD and LED’s.
Mitsubishi 1375-2250 KVA Generator Cooling System:

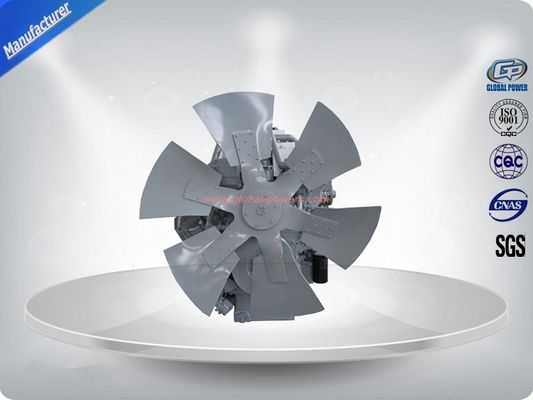

Standard integral genset-mounted radiator system with engine driven cooling fan, designed and tested for rated ambient temperatures, simplifies facility design requirements for rejected heat.
Robust skid base supports the engine, alternator, and radiator.
MAIN TECHNICAL DATA SHEET
| GENERATOR SET | |||||||
| Genset Model | GPM1100 | GPM1200 | GPM1388 | GPM1520 | GPM1600 | GPM1800 | |
|
Prime Power (KW / KVA) |
1100 / 1375 | 1200 / 1500 | 1388 / 1625 | 1520 / 1875 | 1600 / 2000 | 1800 / 2250 | |
|
Standby Power (KW / KVA) |
1210 / 1513 | 1320 / 1650 | 1527 / 1909 | 1672 / 2090 | 1760 / 2200 | 1980 / 2475 | |
| Frequency & Voltage | 50 HZ / 400 / 230 | ||||||
| No. of Phase | 3 | ||||||
| Genset type | Open Type | ||||||
| Dimension (L*W*H, MM) |
4515*2200* 2510 |
4920*2192* 2976 |
5470*2200* 2550 |
5440*2200* 2550 |
5700*2392* 3345 |
6075*2200* 2566 |
|
| Weight (KG) | 12005 | 13117 | 13850 | 14690 | 16400 | 17500 | |
| DIESEL ENGINE | |||||||
| Engine Model | S12R-PTA2 | S12R-PTAA2 | S16R-PTA | S16R-PTA2 | S16R-PTAA2 | S16R2-PTAW | |
| Rated Output (KW) | 1285 KW | 1404KW | 1590 KW | 1760 KW | 1895KW | 2167 KW | |
| Rated Speed (RPM) | 1500 | ||||||
| Engine Type | in-line water cooled | ||||||
| No. of Cylinder | 12 | 12 | 16 | 16 | 16 | 16 | |
| Bore*Stroke (MM) | 170*180 | 170*180 | 170*180 | 170*180 | 170*180 | 170*220 | |
| Governor | Electronic | ||||||
| Starting Method | Electric starting | ||||||
| Cooling Method | Forced water cooled | ||||||
| Fuel Consumption | 207g/kw.h | 199g/kw.h | 200g/kw.h | 208g/kw.h | 199g/kw.h | 199g/kw.h | |
| ALTERNATOR | |||||||
| Alternator Brand & Model | Stamford PI734B | Stamford PI734C | Stamford PI734D | Stamford PI734E | Stamford PI734F | Stamford PI734H | |
| Rated Power (KW) | 1120 | 1240 | 1320 | 1520 | 1664 | 1800 | |
| Type | Brushless & Self-excited | ||||||
| No. of Phase | 3 | ||||||
| Voltage (V) | 230/400 | ||||||
| Frequency(HZ) | 50 | ||||||
| Power Factor | 0.8 | ||||||
| Insulation Grade | H | ||||||
| Protection Grade | IP23 | ||||||
Guarantee and after-sale service
*One year guarantee for whole machine from date of bill of loading or 1000 hours of running.
*Quality warranty is according to our standard conditions: 12 months from date of bill of lading or 1000 hours of running.
Commitment:
Products and services all comply with ISO8528 and GB/T2820 manufacturing standards.
♦ Management is implemented in strict accordance with ISO9001 Quality Management System and ISO14001 Environmental Management System.
♦ All products are CE-certified.
♦ All products have passed rigorous factory test to ensure high quality.
♦ Product warranty terms are strictly enforced.
♦ High-efficiency assembly and production lines ensure on-time delivery.
♦ Professional, timely, thoughtful and dedicated services are offered.
♦ Favorable and complete original accessories are supplied.
♦ Regular and irregular technical training are provided all year round.
♦ 24/7/365 Customer Service Center provides fast and effective responses to customers’ service demands.
