Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | VOLVO | Engine Model: | TAD734GE |
|---|---|---|---|
| Speed: | 1500 RPM | Frequnency: | 50 HZ |
| Rated Power: | 250 KVA / 200 KW | Rated Voltage: | 400V/230V |
| Dimension(L*W*H): | 2700*1060*1550 MM | Weight: | 1880 KG |
| Highlight: | brushless synchronous generator,engine generator set |
||

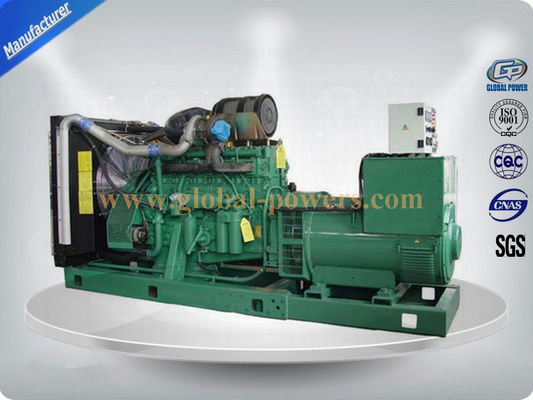

EU Stage II / EPA Tier 2 250 KVA VOLVO Engine Diesel Generator Set Emergency Power
Wuxi Global Power is the professional manufacturer of generator sets. We are specialized in producing diesel generator, gasoline generators, and natural gas generators for many years.With competitive generator price.
1. Offer the main power range from 5kva~2500kva.
2. Powered by the famous engines like Cummins, Deutz, Perkins, Volvo, Mitsubishi, Lovol, Isuzu, Doosan engines etc.
3. Standard high-level quality alternator to be used producing the high-level diesel generators.
4. We offer Open-generators, Silent-Generators, Automatic-Generators and Trailer-Generators.
5. All spare parts serviced directly by our company.
6. We are confirmed as the OEM factory by many those engine factories and alternator factories.
Wherever your operation exists, Volvo Penta is there to provide dependable power. Volvo engines for power generation applications are built to be reliable and durable, engineered to satisfy the most demanding of challenges, no matter if the need calls for standby or prime power.
Volvo Generator Set Specification.
Generator Set Specification
Global Power GPV 200
| Model | Generantor Sets (50Hz) | Engine (50Hz) | Alternator(50Hz) | |||
| Standby Power |
Prime Power |
Brand | Model | Brand | Model | |
| GPV200 | 275kva/220kw | 250kva/200kw | Volvo | TAD734GE | Stamford | UCDI1274K |
230/400VAC,50Hz,0.8PF (lag),Three phase four wire
Dimension(L*W*H):2700*1060*1550 MM
Weight: 1880 KG

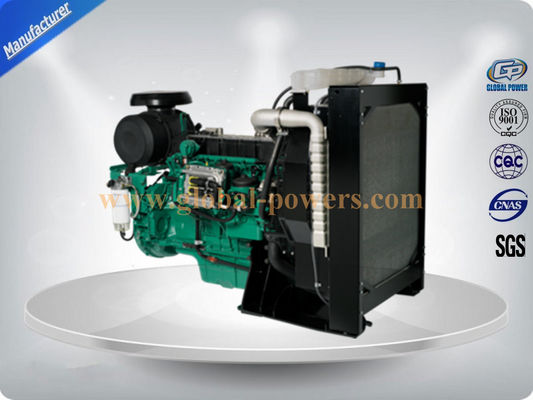

Engine Specification
Model TAD734GE
| Engine brand | Volvo |
| Output Power (kw) | 217 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 17:1 |
| Displacement (L) | 7.15 |
| Bore X Stroke (mm) | 108*130 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 41 |
| Oil Capacity (L) | 29 |

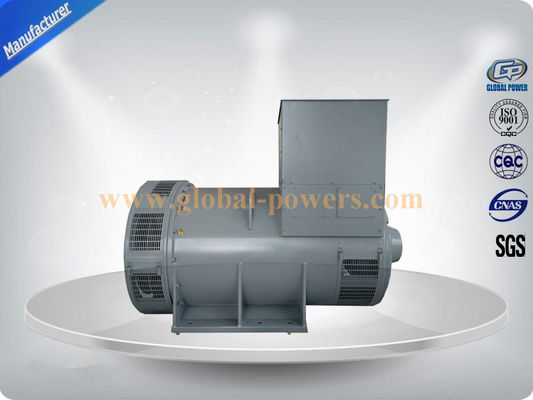

Alternator Specification
Model UCDI274K
| Alternator brand | Stamford |
| Rated Power (kw) | 200 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Our Generator Standard Configurations:
1. Standard High-level quality engine Global Power series.
2. Standard High-level quality alternator, Stanford, Brushless, 100% copper wires. Protection Grade: IP23, Insulation Class H.
3. No-maintenance start battery.
4. After acidification under frame, High-level strong.
5. Electric start, use key start.
6. Electric throttle.

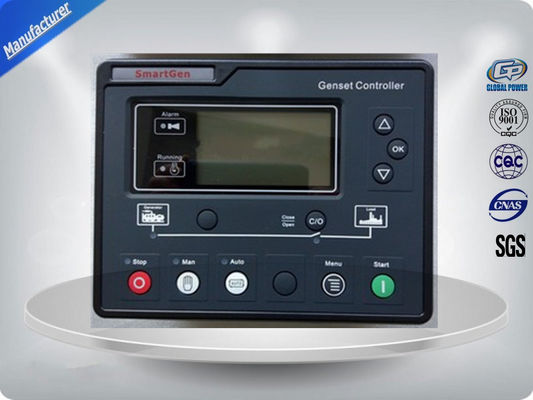

7. Standard control panel Spray-print or LCD show panel.
8. Daily fuel tank.
9. High-level shock absorber system.
10. Ripple flex exhaust pipe, exhaust siphons, flange, Muffler.
11. 40C radiator as standard.
12. Exhaust silencer
13. Charger motor for battery.
14. Standard export box.
15. Manuals.
16. Tools box.
Options Parts
1.Soundproof Canopy (Silent), noise level less than 75DB.
2.Full automatic with LCD display show panel(Contain AMF and ATS system)
3.Trailer model, with mobile wheels or options Rainproof, Canopy etc.
Our experience
We are specialized in producing diesel generator for many years. We have exported to many countries and widely used in domestic.
Our service
Global Power offer full line diesel generators to abroad and domestic. Each unit generator tested in factory at least three times by experienced engineer before delivery. First tested when finished production. Second tested when send to our store. Third time tested before delivery by experience engineer, to check everything be ok then finally deliver to the destination places.
