Product Details:
Payment & Shipping Terms:
|
| Engine Model: | 4016TAG1A | Output Power (kw): | 1588 |
|---|---|---|---|
| Alternator Brand:: | Stamford / Meecalt / Copy Stamford | Combustion System: | Direct Injection |
| Frequency (Hz): | 50 | Generator Type:: | Sounproof |
| Control Module Brand: | Comap,SmartGen, DeepSea | Continuous Running Time(hr.): | 6 |
| Package: | Plastic Foam Or Plywood Case | Running Noise Db(A)/7m(Silent Type): | 75 |
| Highlight: | industrial diesel generators,Industrial Genset |
||
1480Kw Industrial Diesel Generators
Basic Specification:
1. Engine brand, Perkins.
2. Alternator brand, Marathon, Stanform, Engga...etc
3. Direct injection internal combustion engine
4. AC synchronous generator ( single bearing)
5. Cooling way, radiator with fan & water tank
6. Open type, closed type ( with sound proof canopy, trailer, container)
7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set
8. Anti-vibration isolaters
9. Brushless 3 phase
10.Integral guel tank ( 8 hours)
11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)
12.50/60hz
13. Atomatic alarm system
14. Insulation, class H
Diesel Generator GPP1480 (three phase)
|
Prime Power (kw/kva) |
1480/1850 |
|
Standby Power (kw/kva) |
1628/2038 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Current (A) |
2664 |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
24V 100Ah |
|
Open Type-Dimension (L*W*H) (mm) |
4800*1700*2550 |
|
Open Type-Weight (kg) |
9500 |
|
Soundproof Type- Dimension (L*W*H) (mm) |
/ |
|
Soundproof Type-Weight (kg) |
/ |
|
Fuel Tank Capacity(L) |
/ |
|
Continuous Running Time(hr.) |
6 |
Engine specifications:
1.Main features:
2.Technical data
Model 4016TAG1A
|
Engine brand |
Perkins |
|
Output Power (kw) |
1588 |
|
Cylinder No. & Config. |
16 in “V” |
|
Combustion System |
direct injection |
|
Compression Ratio |
13.6:1 |
|
Displacement (L) |
61.123 |
|
Bore X Stroke (mm) |
160*190 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Electronic |
|
Starting System |
24V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
316 |
|
Fuel Consump. (g/kw·h) |
205 |
|
Oil Capacity (L) |
237.2 |

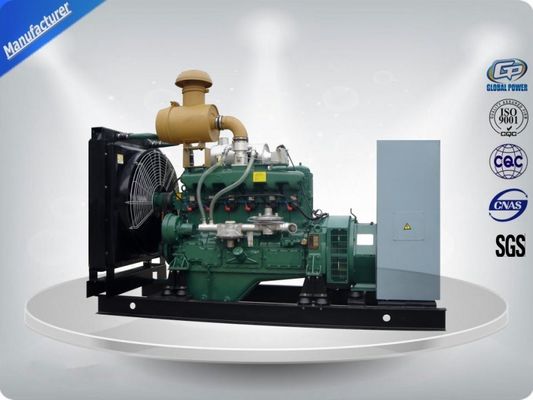

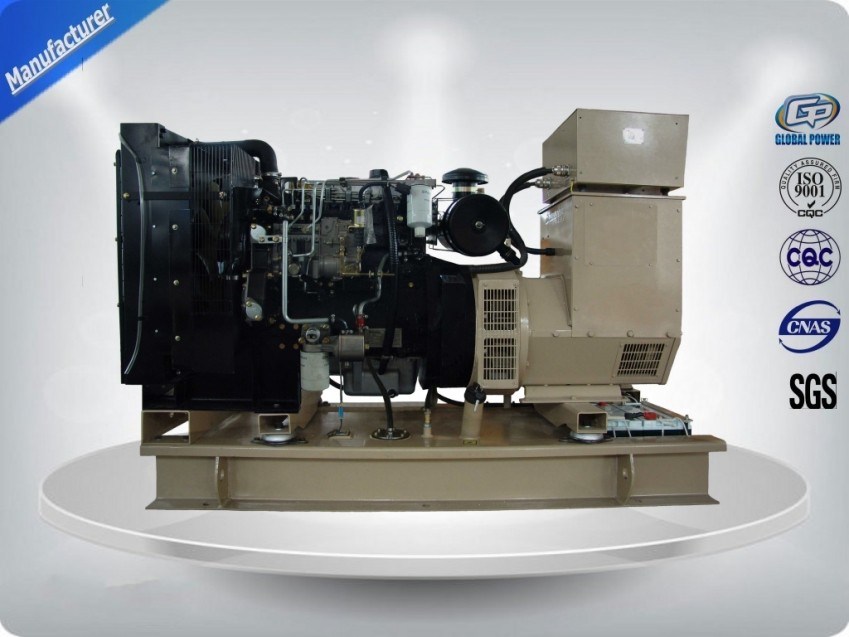

Product Picture:
Features and benefits
