Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | CUMMINS | Engine Model: | KTA19-G3A |
|---|---|---|---|
| Altenrator Brand: | Stamford | Alternator Model: | HCI544C |
| Rated Power: | 500 KVA / 400 KW | Rated Voltage: | 400V/230V |
| Frequency: | 50HZ | Phase: | 3 |
| Highlight: | industrial diesel generators,Industrial Genset |
||

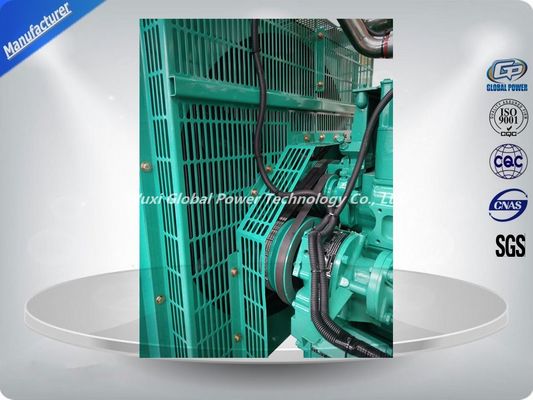

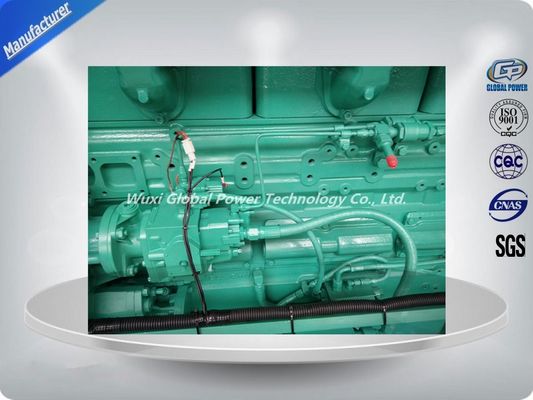

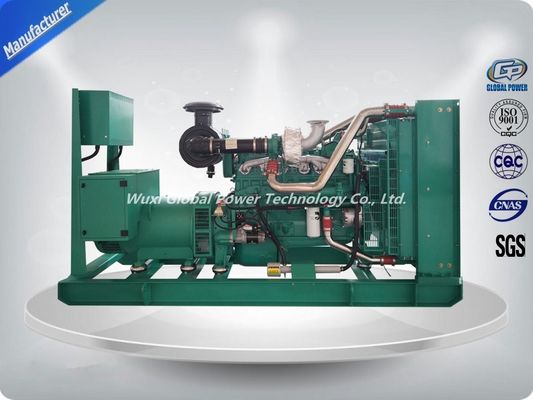

Strong Power 500 KVA / 400 KW Cummins Industrial Generator Set with 50 HZ 3 Phases 4 Wires
1. Diesel generator set powered by Cummins KTA19-G3.
2. Alternator can be stamford,meccalte,and other brands as requirement
Paramateter of the Cummins diesel generator set
| 400KW 500KVA Generator Set | |
| Generator code | GPC400 |
| Rated power(KW) | 400KW/500KVA |
| Power factor | 0.8 lagging |
| Rated voltage(V) | 400/230 |
| Rated current(A) | 721 |
| Rated frequency(HZ) | 50HZ(60HZ also can be chose) |
| Fuel consumption(g/kw.h) | 3450*1250*1930 |
| Net weight(KG) | 3900 |
| Diesel engine code | KTA19-G3A |
| Type | 4strokes,water cooling,inline,direct injecting chamber |
| Cylinder NO.-Bore*Stroke | 6-15-*159 |
| Displacement(L) | 13 |
| Pressure Ratio | 14.5:1 |
| Rated speed(rpm) | 1500 |
| Air intake type | Turbocharge |
| Alternator brand | Stamford (Meccalte can be chose) |
| Voltage Regulation Rate | ±1% |
| Vol. Control Method | AVR(Automatic Voltage Regulation) |
| Type of Excitation | Phase compounded self-excitation |
| Protection Class | IP23 |
| Insulation Class | H |
Package form:
Stretch film or plywood package or as requested.
About Our Company
Wuxi Global Power Technology Co.,LTD is located in Wuxi City, Jiangsu Province, which is the central part of manufacturing industrial zone in Southeast China. Global Power manufactures OEM generator powered by USA brand,UK brand, Deutz, Volvo, MTU, Doosan , Shangchai ,Yuchai ,Weichai engines with Stamford, Leroy Somer, Mecc Alte or ZC brand alternators. Global Power Genset ranges from 2kva to 2500kva, 50Hz or 60Hz frequency, can be open type, silent type, trailer type or container type, etc. All products are manufactured in accordance with the ISO8528 production standard and Europe CE certificate to assure them of best quality and acceptable for the international market.
We devotes ourselves to researching, manufacturing, and installing of Diesel Generator Set in the recent decades. With convincing quality, our products endue generators made in China with a new implication of European quality with competitive price. Global Power generators are exported to dozens of countries all over the world, bringing wind of China to global diesel generators business and customers.
Why choose us:
1) OEM Service are provided.
2) High quality control.
3) Prompt delivery time
4) Excellent service
5) New product
6) Customer's design and logos are welcome
7) Competitive price
8) In a variety of designs
9) Small order acceptable
