Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 160KW / 200KVA | Standby Power: | 176KW / 120 KVA |
|---|---|---|---|
| Excitation System: | Brushless, Self-exciting | EngineAlternator: | Perkins Stamford UCI274F |
| Alternator: | Stamford, Meccalte, Faraday， Copy Stamford, Etc. | Rated Voltage: | 400V / 230V |
| Dimension: | 2377*780*1350 MM | Weight: | 1465 KG |
| Highlight: | brushless synchronous generator,brushless alternator generator |
||

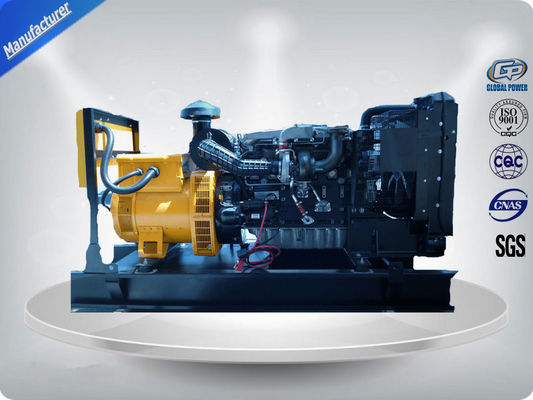

200 KVA 400 V 3 Phase Silent Diesel Generator , Commercial Diesel Generators
Applications:
1. Construction
2. Transport and logistics
3. Water treatment facilities
4. Hospitals
5. Landfills
6. Minings
etc.
| 1.Gen-set | ||
| The model of the unit: | GPP160 | |
| Power: | 160KW/200KVA | |
| Rated voltage: | 400V/230V | |
| Rated current: | 288A (adjustable) | |
| Rated frequency: | 50Hz/60Hz | |
| The factor of rated power | COS=0.8(lag) | |
| The regulating rate of steady voltage: | ≤±0.5% | |
| The regulating rate of instantaneous voltage: | ≤-10%/ +15% | |
| The time of steady voltage: | ≤1.5sec | |
| The waving rate of voltage: | ≤0.5% | |
| The regulating rate of steady frequency: | C≤3% | |
| The regulating rate of instantaneous frequency: | ≤±5% | |
| The time of steady frequency: | 3sec | |
| The waving rate of frequency: | ≤0.25% | |
| The waste of fuel with full load: | 204g/kw/h | |
| size(mm): |
2377*780*1350 |
|
| weight: | 1465KG | |

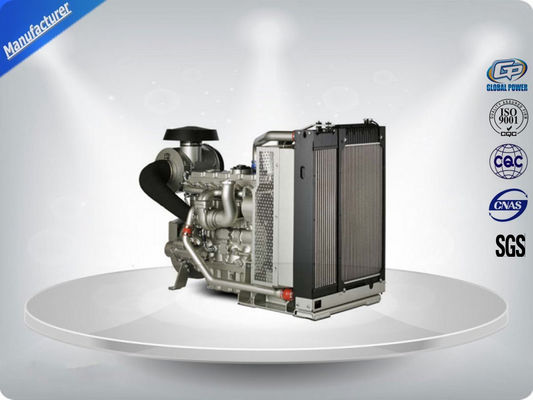

| 2.Engine | ||
| Brand: | PERKINS | |
| Model: |
1106A-70TAG4 |
|
| Type: |
four strokes, waste gas turbine boost,direct spurting type |
|
| Cooling way: | water cooling | |
| With Type: | Inline type | |
| Bore *Trip : | 105mm*135mm | |
| Displacement | 7 L | |
| Lubricating oil capacity: | 16.5L | |
| Cylinder: | 6cylinders | |
| Rotating speed: | 1500r/min or 1800r/min | |
| The regulation of rotating speed: | E-Speed | |
| Starting way: | DC24V starting with electricity | |
| 3.Alternator | ||
| Brand: | Stamford,Meccalte, Faraday, Copy Stamford | |
| Type: | brushless (AVR automatic voltage regulating) | |
| The connecting way of the phase: | three phases four lines | |
| Insulation degree: | H degree | |
| Grading Protection: | IP21/23 | |
Configurations recommended as per different requirements (if required)

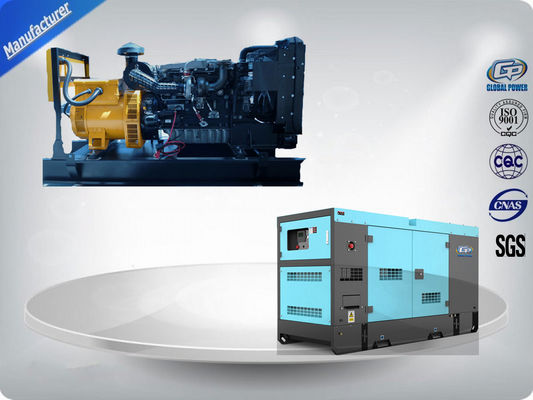

1) Silent shell:noise level 64dB at 7m, 4-8mm thickness base frame, 2-3 thickness shell body, industrial class soundproof cotton, smaller shake, smaller noise!
2) AMF+ATS system: auto-start and supply electricity when mains failure within 3 s , or directly transport electricity to the mains.
3) Parallel system: realize auto-parallel, auto load distribution, auto stop when load released. The cabinets are connected by 100% copper busbar.
4) Trailer: pull the generator set to anywhere required, suitable for wildness / construction places etc. With front steering system, big fuel tank, hand brake, plate-spring damping, brand new tires etc.
5) Controller: display all the running parameters of alternator & engine, provide related protection for them, realize the remote control etc.
FAQ
1.What's the power range of diesel generators?
Power range from 5kva~3000kva.
2.What's the delivery time?
Delivery within 7 days after deposit confirmed.
3.What's your payment term?
1.We accept 30% T/T as the deposit,the balance payment paid before delivery
2. L/C at sight
4.What's your warranty?
Warranty is one year or 1000 hours which comes first.
5.What's your MOQ?
MOQ is 1 set.
6.What’s the frequency of diesel generators?
50/60HZ
7.What’s the voltage of your diesel generator?
Voltage is 220/380V,230/400V,240/415V, just as per your request.
