Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 200KW / 250KVA | Standby Power: | 220KW / 275 KVA |
|---|---|---|---|
| Engine Brand: | Perkins | Engine Model: | 1506A-E88TAG3 |
| Alternator Brand: | Stamford | Alternator Model: | UCDI274K |
| Dimension(L*W*H): | 2600*900*1570 MM | Weight: | 1950 KG |
| Highlight: | brushless synchronous generator,brushless alternator generator |
||

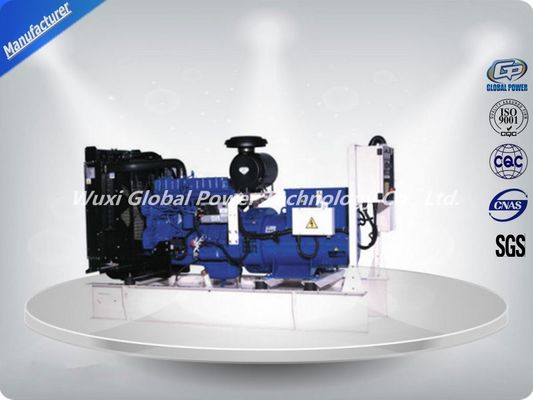

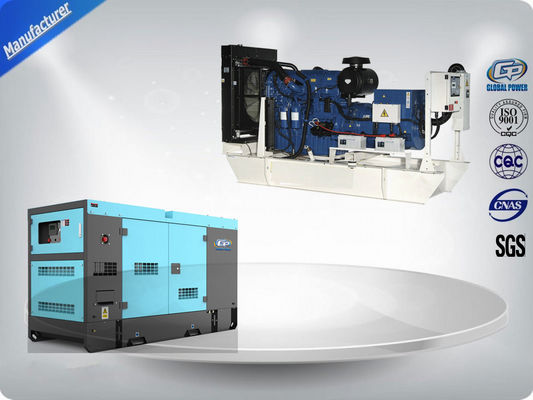

3 Phases 4 Wires Perkins Soundproof Diesel Generator Set 250 KVA 50HZ High Efficient
Features and benefits
| 1.Gen-set | ||
| The model of the unit: | GPP200 | |
| Power: | 200KW/250KVA | |
| Rated voltage: | 400V/230V | |
| Rated current: | 361A (adjustable) | |
| Rated frequency: | 50Hz/60Hz | |
| The factor of rated power | COS=0.8(lag) | |
| The regulating rate of steady voltage: | ≤±0.5% | |
| The regulating rate of instantaneous voltage: | ≤-10%/ +15% | |
| The time of steady voltage: | ≤1.5sec | |
| The waving rate of voltage: | ≤0.5% | |
| The regulating rate of steady frequency: | C≤3% | |
| The regulating rate of instantaneous frequency: | ≤±5% | |
| The time of steady frequency: | 3sec | |
| The waving rate of frequency: | ≤0.25% | |
| The waste of fuel with full load: | 188g/kw/h | |
| size(mm): |
2600*900*1570 |
|
| weight: | 1950KG | |

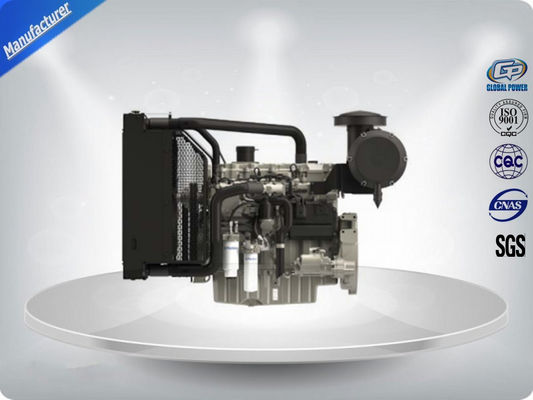

| 2.Engine | ||
| Brand: | PERKINS | |
| Model: |
1506A-E88TAG3 |
|
| Type: |
four strokes, waste gas turbine boost,direct spurting type |
|
| Cooling way: | water cooling | |
| With Type: | Inline type | |
| Bore *Trip : | 116.6mm*135.9mm | |
| Displacement | 8.7 L | |
| Lubricating oil capacity: | 26.5L | |
| Cylinder: | 6cylinders | |
| Rotating speed: | 1500r/min or 1800r/min | |
| The regulation of rotating speed: | E-Speed | |
| Starting way: | DC24V starting with electricity | |
| 3.Alternator | ||
| Brand: | Stamford UCDI274K | |
| Type: | brushless (AVR automatic voltage regulating) | |
| The connecting way of the phase: | three phases four lines | |
| Insulation degree: | H degree | |
| Grading Protection: | IP21/23 | |
Company Information
Wuxi Global Power Technology Co., Ltd., as a renowned national high-tech enterprise, having been engaged in research, development, manufacture and sales of energy-saving and environment-friendly generating sets, related parts and supporting equipment, which could meet the demands of a wide variety of emergency and common power solutions and integrated systems’ building.
Global Power gensets range from 2kva to 2500kva with open, soundproof, container, trailer power stations and mobile light tower etc., widely used in national defense, energy, power station, transportation, communications, finance, health care, tourism, real estate, mining, factories and so on, commanding a ready market in Southeast Asia, Middle East, Africa ,South America and Australia etc.
Keeping a steady, friendly and long-term cooperation with partners, Cummins, Perkins, Volvo, Lovol, Mitsubishi, MTU, Isuzu, Deutz, Doosan engines, Standford and Meccalte alternators manufacturers.
Global Power upholds “duty, integrity, innovation and enterprising” as the spirit of enterprise, and constantly improve the quality of management system, and actively fulfill the social responsibility.
FAQ
1.What's the power range of diesel generators?
Power range from 5kva~3000kva.
2.What's the delivery time?
Delivery within 7 days after deposit confirmed.
3.What's your payment term?
1.We accept 30% T/T as the deposit,the balance payment paid before delivery
2. L/C at sight
4.What's your warranty?
Warranty is one year or 1000 hours which comes first.
5.What's your MOQ?
MOQ is 1 set.
6.What’s the frequency of diesel generators?
50/60HZ
7.What’s the voltage of your diesel generator?
Voltage is 220/380V,230/400V,240/415V, just as per your request.
