Product Details:
Payment & Shipping Terms:
|
| Engine: | PERKINS 1506A-E88TAG5 | Rated Voltage: | 400V / 230V |
|---|---|---|---|
| Prime Power: | 240 KW / 300 KVA | Alternator: | Stamford HCI444D |
| Control System: | HGM6110 | Fuel Consumption: | 208 G/kw·h |
| Fuel Tank Capacity: | 600 L | ||
| Highlight: | industrial diesel generators,Industrial Genset |
||

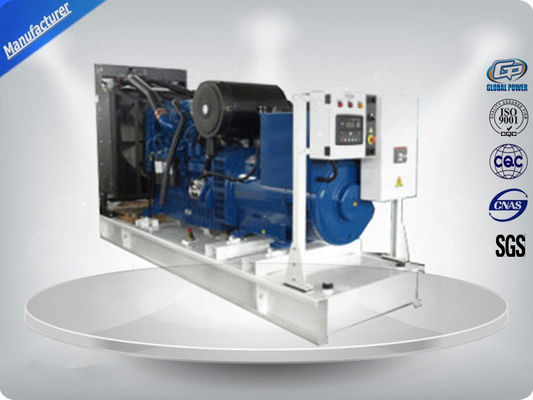

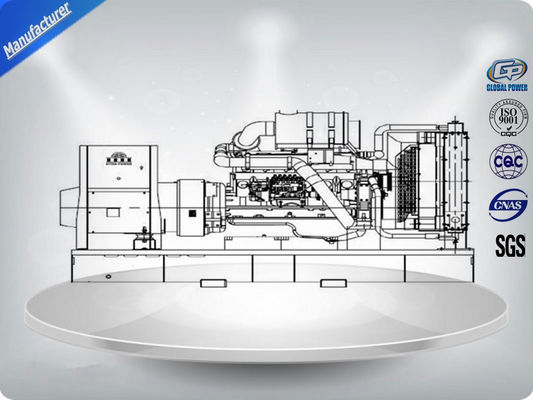

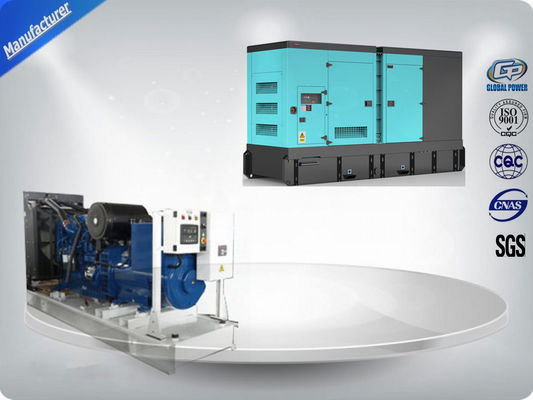

300 KVA 6 Cylinder water cooled diesel generator Set , Electric Start Generator
Applications:
Factories, road constructions, telecom projects, data centers, transportations, military, outdoors, etc.
Delivery Detail: 30 days
bottom fuel tank & battery
key/auto start control
Generator data
Diesel Generator GPP240 (three phase)
| Prime Power (kw/kva) | 240/300 |
| Standby Power (kw/kva) | 264/330 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 433 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 3200*1150*1900 |
| Open Type-Weight (kg) | 2735 |
| Soundproof Type- Dimension (L*W*H) (mm) | 4100*1500*2250 |
| Soundproof Type-Weight (kg) | 6385 |
| Fuel Tank Capacity(L) | 600 |
| Continuous Running Time(hr.) | 8 |

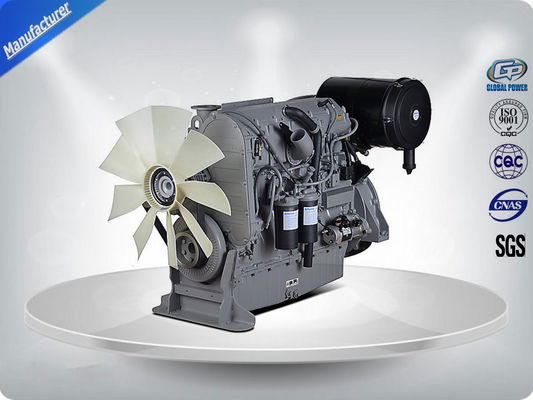

Engine data
Model 1506A-E88TAG5
| Engine brand | Perkins |
| Output Power (kw) | 273 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | |
| Displacement (L) | 9.3 |
| Bore X Stroke (mm) | 117*146 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 45 |
| Fuel Consump. (g/kw·h) | 208 |
| Oil Capacity (L) | 36 |
Alternator data
Model HCI444D
| Alternator brand | Stamford |
| Rated Power (kw) | 240 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Guarantee:
*One year guarantee for whole machine from date of bill of loading or 1000 hours of running.
