Product Details:
Payment & Shipping Terms:
|
| Product Name: | Open Type Mitsubishi Diesel Generator | Engine Model: | Mitsubishi, S16R2-PTAW |
|---|---|---|---|
| Alternator Brand: | Stamford, PI 734G | Frequency: | 50Hz |
| Prime Power (kw/kva): | 1800 / 2250 | Standby Power(kw/kva): | 1980 / 2475 |
| Rated Voltage:: | 400/230 | Output Type: | AC Three Phase |
| Control Module Brand: | DSE 4620 | ||
| Highlight: | brushless alternator generator,engine generator set |
||

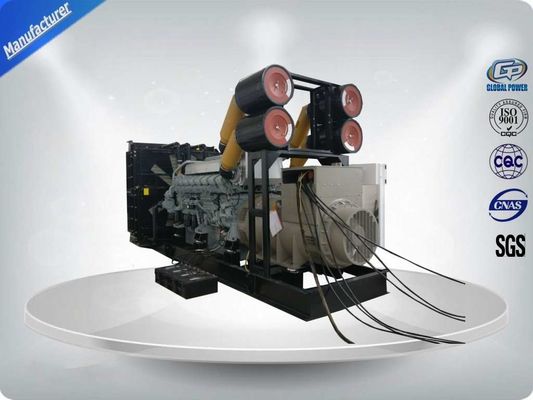

1800kw / 2250kva Mitsubishi Japan Open Diesel Generator With Stamford Alternator , Water Cooled Three Phase
Model: GP M1800
Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Features and benefits
Diesel Generator GPM1800 (three phase)
| Prime Power (kw/kva) | 1800/2250 |
| Standby Power (kw/kva) | 1980/2475 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 3248 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m | 115 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 6075*2200*2566 |
| Open Type-Weight (kg) | 17500 |
| Soundproof Type- Dimension (L*W*H) (mm) | / |
| Soundproof Type-Weight (kg) | / |
| Fuel Tank Capacity(L) | / |
| Continuous Running Time(hr.) | 6 |
Engine specifications
Engine
Main features:
Technical data
Model S16R2-PTAW
| Engine brand | MITSUBISHI |
| Output Power (kw) | 2167 |
| Cylinder No. & Config. | 16, in “V” |
| Combustion System | direct injection |
| Displacement (L) | 79.9 |
| Bore(m) | 170 |
| Stroke (m) | 220 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 500 |
| Fuel Consump. (g/kw·h) | 199 |
| Oil Capacity (L) | 290 |
Alternator specifications
Alternator
Main features:
Technical data
Model PI 734G
| Alternator brand | Stamford |
| Rated Power (kw) | 1800 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
DSE7320 controller
Main features:
1.Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
2. Security password-protected programming levels
3. All parameters use digital modulation, with higher reliability and stability
4. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
5. Power supply range is wide, accommodating to different starting battery voltage environment
6. Built-in watch dog can never be dead halt, ensuring smooth program execution
Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
