Product Details:
Payment & Shipping Terms:
|
| Genset Brand: | Global Power | Model Number: | GP1 P40 |
|---|---|---|---|
| Prime Power (kw/kva): | 40/50 | Standby Power (kw/kva): | 44/55 |
| Rated Voltage (V): | 400/230 | Open Type-Dimension (L*W*H) (mm): | 1900*720*1150 |
| Open Type-Weight (kg): | 950 | Engine Brand: | Perkins |
| Alternator Brand: | Standford, Meccalte, Global Power | Controller Band: | DeepSea |
| Highlight: | genset silent generator set,genset silent portable |
||

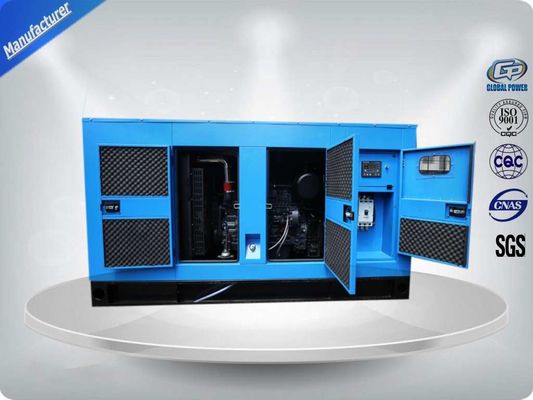

Emergency Slient Diesel Generating Sets 50 KVA / 55 KVA Perkins Engine 1103A-33TG1 For Buildings
Model: GP1 P40
Applications:
Home, Buildings, Hospitals, Train station, Bank, Telecom, Mining, Military, Outdoor projects, etc.
Generator data
Diesel Generator GP1 P40 (three phase)
| Prime Power (kw/kva) |
40/50 |
| Standby Power (kw/kva) |
44/55 |
| Rated Voltage (V) |
440/254 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) |
67 |
| Rated Frequency (Hz) |
60 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) |
1900*720*1150 |
| Open Type-Weight (kg) | 950 |
| Soundproof Type- Dimension (L*W*H) (mm) |
2280*900*1280 |
| Soundproof Type-Weight (kg) | 2130 |
| Fuel Tank Capacity(L) | 120 |
| Continuous Running Time(hr.) | 8 |
Features and benefits
1. Tightly structure, excellent design and craft
2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
3. Self-diagnostic capability simplifies troubleshooting
4. LCD display shows system status and setup information
5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
7. Enclosed muffler for added quietness
8. Service and maintenance accessible through easy-latch side service door
Product Display
Engine specifications
Technical data
Model 1103A-33TG1
| Engine brand | Perkins |
| Output Power (kw) |
49 |
| Cylinder No. & Config. | 3, in-line |
| Combustion System | direct injection |
| Compression Ratio | 17.25:1 |
| Displacement (L) | 3.3 |
| Bore X Stroke (mm) | 105*127 |
| Engine Speed (r/min) | 1800 |
| Speed Governing | Electronic |
| Starting System | 12V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 10.2 |
| Fuel Consump. (g/kw·h) | 240 |
| Oil Capacity (L) | 7.9 |
Main features:
1. Three-cylinder, water-cooled, in-line diesel engine
2. Efficient fuel system for max power output and durability
3. Large-capacity air cleaner
4. Cost effective, fuel efficient and reliable performance
5. Functional engine with compact structure
6. Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance
Alternator specifications
Technical data
Model PI144K
| Alternator brand | Stamford |
| Rated Power (kw) | 42 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Main features:
1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
2. 2/3 pitch winding as standard, to avoid excessive neutral currents
3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
4. Easy access for installation and maintenance
5. IP23 as standard
6. Self-excited control system
7. Resist of corruption of oil and acid
Control system
DSE4620 controller
Main features:
1. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
2. Security password-protected programming levels
3. All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
4. Power supply range is wide, accommodating to different starting battery voltage environment
5. Built-in watch dog can never be dead halt, ensuring smooth program execution
6. Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
