Product Details:
Payment & Shipping Terms:
|
| Product Name: | Perkins Diesel Generator Set | Engine Model: | Perkins, 1103A-33TG2 |
|---|---|---|---|
| Alternator Brand: | Stamford, UCI224E | Frequency: | 50Hz |
| Rated Voltage:: | 400/230 | Prime Power (kw/kva): | 48/60 |
| Standby Power(kw/kva): | 53/66 | Rated Current (A): | 86 |
| Running Noise Db(A)/7m(Silent Type): | 75(Silent Type) | Control Module Brand: | SmartGen, Deepsea, ComAp |
| Battery Capacity (V-Ah): | 12V 100Ah | Voltage Recovery Time: | ≤1S |
| Highlight: | Emergency Generator Set,power generating sets |
||

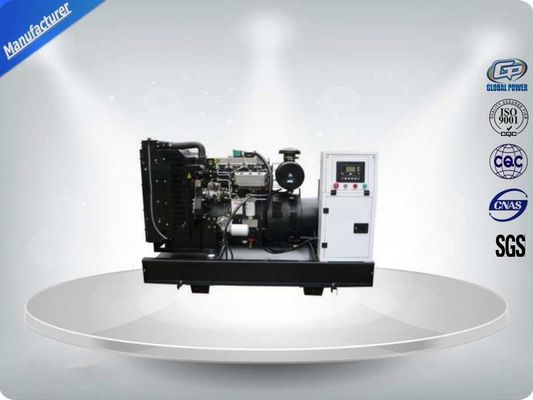

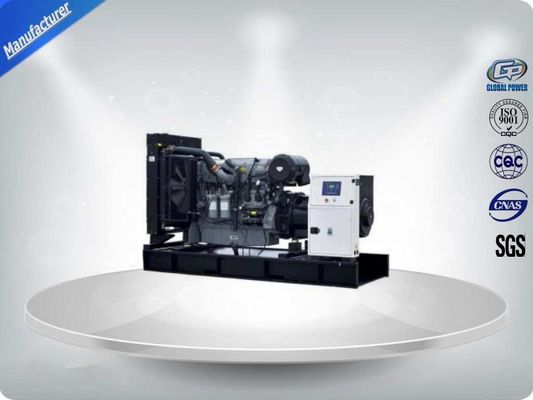

Model: GPP48
Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Features and benefits
Silent Diesel Generator data
Diesel Generator GPP48 (three phase)
| Prime Power (kw/kva) | 48/60 |
| Standby Power (kw/kva) | 53/66 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 86 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 1700*650*1080 |
| Open Type-Weight (kg) | 850 |
| Soundproof Type- Dimension (L*W*H) (mm) | 2450*1050*1550 |
| Soundproof Type-Weight (kg) | 2100 |
| Fuel Tank Capacity(L) | 120 |
Perkins Diesel Engine specifications
Engine
Main features:
Technical data
Model 1103A-33TG2
| Engine brand | Perkins |
| Output Power (kw) | 54 |
| Cylinder No. & Config. | 3, in-line |
| Combustion System | direct injection |
| Compression Ratio | 17.25:1 |
| Displacement (L) | 3.3 |
| Bore X Stroke (mm) | 105*127 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 12V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 10.2 |
| Fuel Consump. (g/kw·h) | 217.7 |
| Oil Capacity (L) | 8.3 |
Stamford Brushless Alternator specifications
Alternator
Main features:
Technical data
Model UCI224E
| Alternator brand | Stamford |
| Rated Power (kw) | 48 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control system
HGM410 controller
Main features:
