Product Details:
Payment & Shipping Terms:
|
| Engine Model: | Yangdong, YSD490D | Alternator Brand: | Copy Stamford, GPI 184ES |
|---|---|---|---|
| Frequency: | 50Hz | Rated Voltage:: | 415/240 |
| Prime Power (kw/kva): | 16/20 | Standby Power(kw/kva): | 18/22 |
| Rated Current (A): | 28 | Running Noise Db(A)/7m(Silent Type): | 75(silent Type) |
| Control Module Brand: | SmartGen, Deepsea, ComAp | Battery Capacity (V-Ah): | 12V 45Ah |
| Voltage Recovery Time: | ≤1S | ||
| Highlight: | Emergency Generator Set,power generating sets |
||

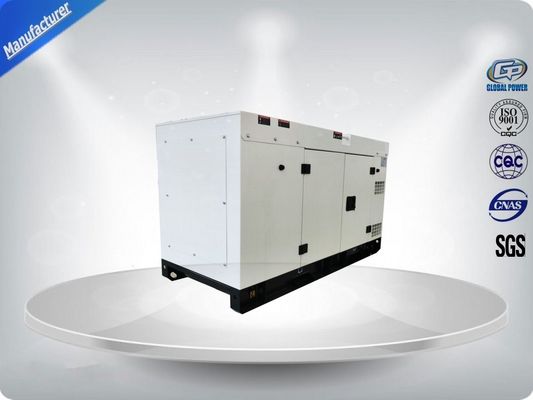

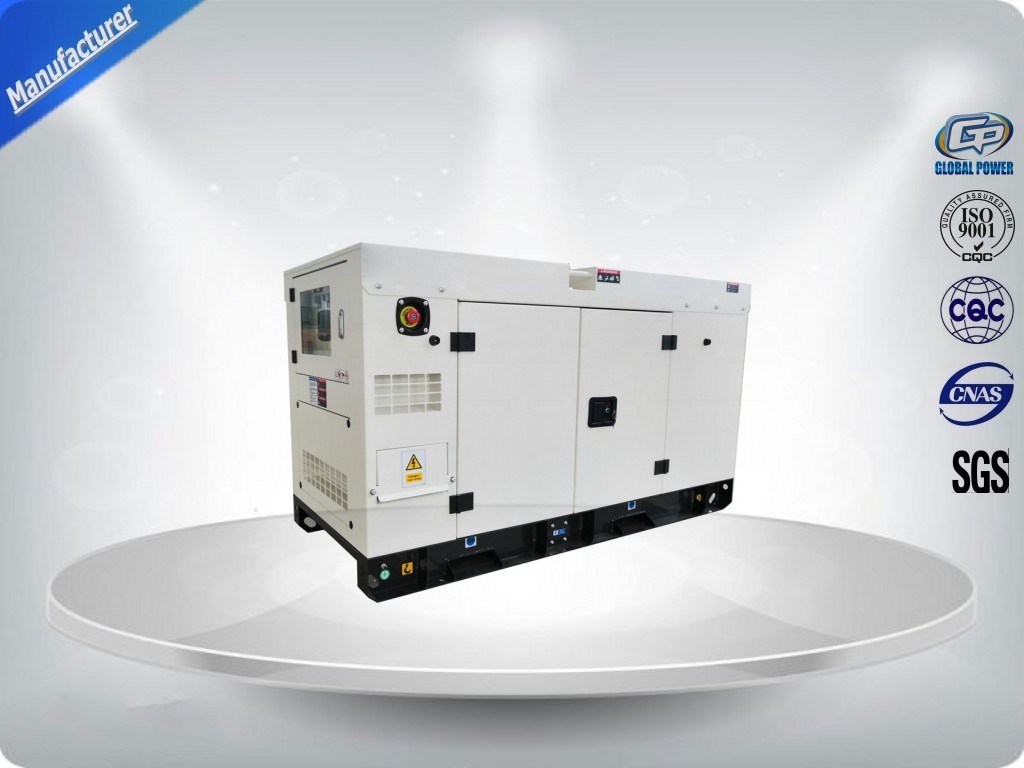

Model: GP YD16
Small Diesel Generator Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Features and benefits
Emergency diesel Generator set data
Diesel Generator GP YD16 (three phase)
| Prime Power (kw/kva) | 16/20 |
| Standby Power (kw/kva) | 18/22 |
| Rated Voltage (V) | 415/240 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 28 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 45Ah |
| Open Type-Dimension (L*W*H) (mm) | 1159*578*940 |
| Open Type-Weight (kg) | 450 |
| Soundproof Type- Dimension (L*W*H) (mm) | 1900*800*1050 |
| Soundproof Type-Weight (kg) | 726 |
| Fuel Tank Capacity(L) | 160 |
| Continuous Running Time(hr.) | 8 |

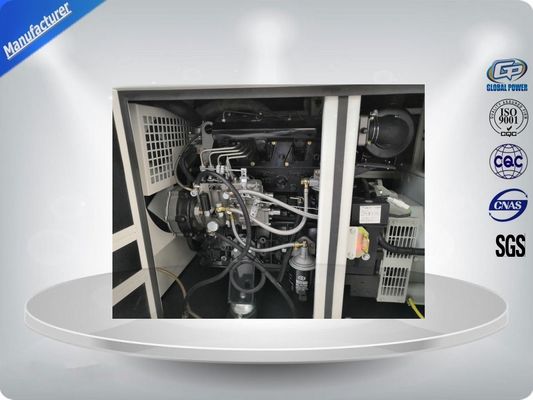

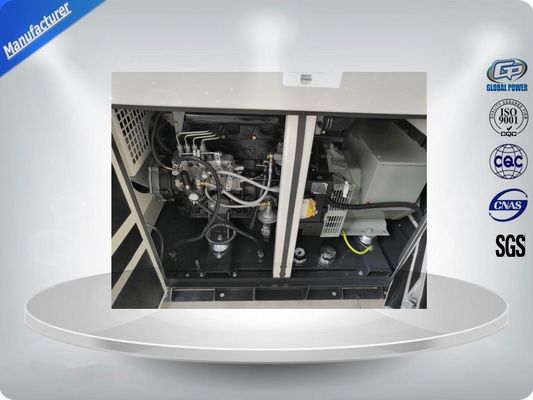

Yangdong Engine specifications
Engine
Main features:
Technical data
Model YSD490D
| Engine brand | Yangdong |
| Output Power (kw) | 21 |
| Cylinder No. & Config. | 4, in-line |
| Combustion System | direct injection |
| Aspiration type | Naturally aspirated |
| Displacement (L) | 2.543 |
| Bore X Stroke (mm) | 90*100 |
| Engine Speed (r/min) | 1500 |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Fuel Consump. (g/kw·h) | ≤225 |
| Lub. Consump (g/kw·h) | ≤2.72 |
Alternator specifications
Copy Stamford Alternator
Main features:
Technical data
Model GPI 184ES
| Alternator brand | Global Power |
| Rated Power (kw) | 16 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control system
HGM410 controller
Main features:
