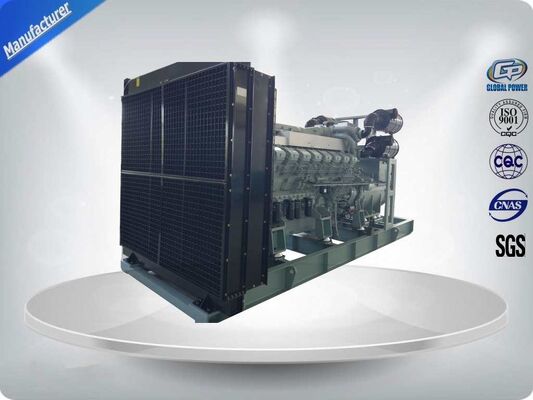

50Hz 3 Phase 1100KW 1375KVA Open Diesel Generator With ComAp Controller
  • name
  • name

50Hz 3 Phase 1100KW 1375KVA Open Diesel Generator With ComAp Controller

MOQ: 1set
Price: $4870-$6800
Standard Packaging: FOB, CRF,CIF,EXW…
Delivery Period: 25 working days after received down-payment
Payment Method: T/T or LC
Supply Capacity: 2,000sets/year
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Global Power
Certification
OEM/ISO9001
Model Number
GP M1100
Product Name:
Mitsubishi Diesel Generator Set
Output Type:
AC Three Phase
Rated Voltage::
400/230V
Prime Power (kw/kva):
1100/1375
Standby Power(kw/kva):
1210/1513
Engine Model:
Mitsubishi, S12R-PTA2
Alternator Brand:
Stamford, PI 734B
Frequency:
50Hz
Weight(kg):
12005
Dimension Size(L*W*H/mm):
4515*2200*2510
Package:
Plastic Foam Or Plywood Case
Control Module Brand:
DeepSea,Comap,Smartgen
Highlight:

1375kva open diesel generator

,

50hz open generator set

,

50hz open diesel generator

Product Description

Model: GPM1100



Features and benefits

  1. Tightly structure, excellent design and craft
  2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
  3. Self-diagnostic capability simplifies troubleshooting
  4. LCD display shows system status and setup information
  5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
  6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
  7. Enclosed muffler for added quietness
  8. Service and maintenance accessible through easy-latch side service door


Open Diesel Generator data



Diesel Generator GPM1100 (three phase)

Prime Power (kw/kva) 1100/1375
Standby Power (kw/kva) 1210/1513
Rated Voltage (V) 400/230
Voltage Recovery Time ≤1S
Rated Current (A) 1985
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Silent type) 115
Battery capacity (V-Ah) 12V 200Ah*2*2
Open Type-Dimension (L*W*H) (mm) 4515*2200*2510
Open Type-Weight (kg) 12005
Continuous Running Time(hr.) 6





Mitsubishi Diesel Engine specifications



Engine

Main features:

  1. Twelve-cylinder, water-cooled, in “V” diesel engine
  2. Efficient fuel system for max power output and durability
  3. Large-capacity air cleaner
  4. Cost effective, fuel efficient and reliable performance
  5. Functional engine with compact structure
  6. Excellent after-sales service and sufficient spare parts supplying
  7. Easy installation and ready access for routine maintenance

50Hz 3 Phase 1100KW 1375KVA Open Diesel Generator With ComAp Controller 0

Technical data

                                                       Model S12R-PTA2

Engine brand MITSUBISHI (China)
Output Power (kw) 1285
Cylinder No. & Config. 12, in “V”
Combustion System direct injection
Displacement (L) 49.03
Bore(m) 170
Stroke (m) 180
Engine Speed (r/min) 1500
Speed Governing Electronic
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Coolant capacity (L) 335
Fuel Consump. (g/kw·h) 207
Oil Capacity (L) 180





Alternator specifications



Alternator

Main features:

  1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
  2. 2/3 pitch winding as standard, to avoid excessive neutral currents
  3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
  4. Easy access for installation and maintenance
  5. IP23 as standard
  6. Self-excited control system
  7. Resist of corruption of oil and acid

50Hz 3 Phase 1100KW 1375KVA Open Diesel Generator With ComAp Controller 1

Technical data

                                                                   Model PI 734B

Alternator brand Stamford
Rated Power (kw) 1120
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1500
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%～105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF＜50
Harmonic Coefficient THF＜2%





Control system



ComAp controller

50Hz 3 Phase 1100KW 1375KVA Open Diesel Generator With ComAp Controller 2
