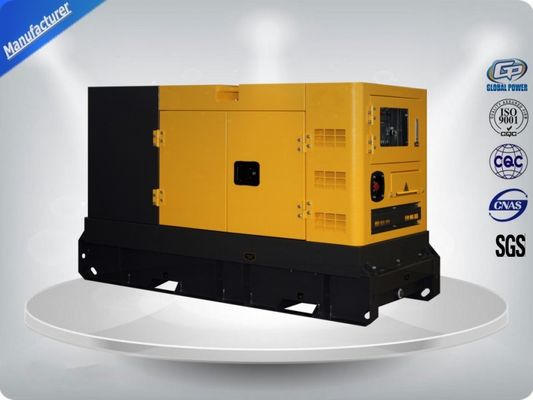

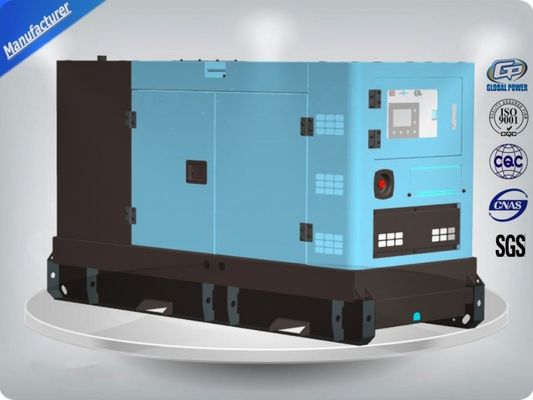

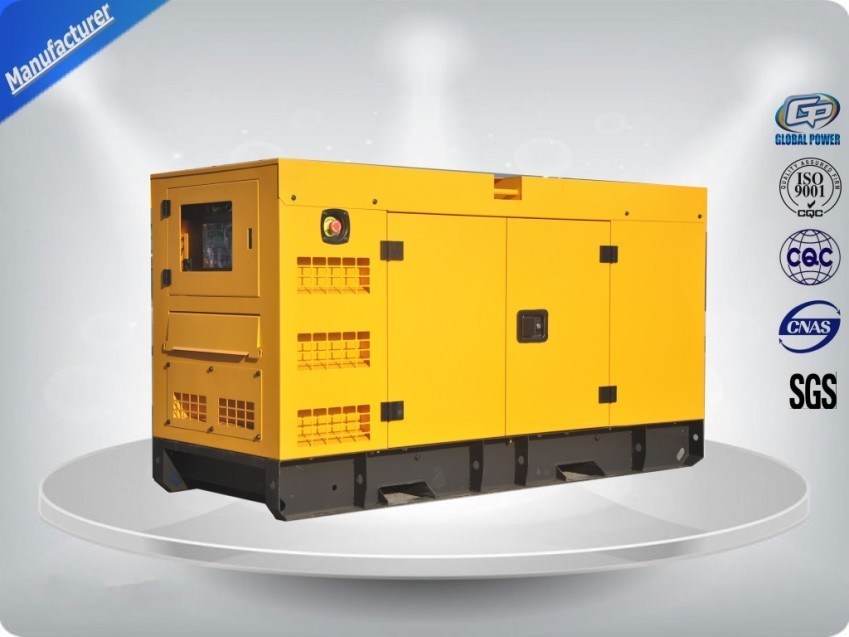

Cummins Deisel Engine Industrial Generator Set Soundproof Prime Power 50Hz 400V

MOQ:	1set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets/year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

CE / ISO

Model Number

GP C34

Engine Brand:

Cummins

Engine Model:

4BT3.9-G2

Cooling System:

Water-cooled

Prime Power (kw/kva):

34/43

Alternator:

Stamford / Meecalt / Copy Stamford

Rated Current (A):

Canopy Size (l*w*h/mm）:

2300*950*1350

Canopy Weight(KG):

1750kg

Highlight:

industrial generator set soundproof

industrial electric generator set

soundproof electric generator set

Product Description

Cummins Deisel Engine Industrial Generator Set Soundproof Prime Power 50Hz 400V

Technical Specifications :

Genset	Prime Power (kw/kva)		34/43
	Standby Power (kw/kva)		37/47
	Voltage Recovery Time		≤1S
	Rated Current (A)		61
	Rated Frequency (Hz)		50
	Frequency Recovery Time		≤5S
	Running Noise db(A)/7m(Silent type)		75
	Battery capacity (V-Ah)		24V 100Ah
	Fuel Tank Capacity(L)		70
Engine	Engine brand	Cummins
	Output Power (kw)	36
	Cylinder No. & Config.	4, in-line
	Combustion System	direct injection
	Compression Ratio	16.5:1
	Displacement (L)	3.9
	Bore X Stroke (mm)	102*120
	Engine Speed (r/min)	1500
	Speed Governing	Mechanical
	Starting System	24V DC Electric
	Filter System	Dry oil filter/Fuel filter/Oil filter
	Cooling system	Water-cooled
Alternator	Alternator brand	Stamford, Mecc-alte,Faraday…
	Excitation System	Brushless, self-exciting
	Voltage Regulation Mode	AVR
	Connection Type	3phase,4wires,”Y” connection
	Pole No.	4
	Rotation Speed (r/min)	1500
	Temperature Rise (℃)	125
	Insulation class	H
	Voltage Regulation (0 load)	≥95%～105%
	Protection Grade	IP23

Generator soundproof/Silent and canopy

1) Excellent ventilation

2) Black finish stainless steel locks and hinges

3) Zinc plated or stainless steel fasteners

4) Body made from steel components treated with polyester powder coating

5) Two large doors on either side

6) Radiator fill access plate

7) Fully guarded cooling fan and battery charging alternator

8) Fuel fill and battery access via lockable access doors

9) Emergency stop button on canopy exterior

10) Lube oil drain and radiator drain to exterior

11) Control panel viewing window

12) Lifting points on base frame

Our advantages :
1.Inspection

1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.

2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.

3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

Our detail

Warranty and Maintenance:

1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.

4) 24 hours service hotline is available for customers.
