400 / 230V Silent Three Phase Industrial Generator Set With 24V DC Electric Starting System

MOQ:	1set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets/year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

CE / ISO

Model Number

GP P160

Prime Power (kw/kva):

160 / 200

Standby Power (kw/kva):

176 / 220

Cooling System:

Water-cooled

Rated Voltage (V):

400 / 230

Engine Speed (r/min):

Rated Current (A):

Speed Governing:

Electronic

Type:

Slient

Highlight:

230v electric generator set

230v industrial generator set

silent electric generator set

Product Description

400 / 230V Silent Three Phase Industrial Generator Set With 24V DC Electric Starting System

Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.

Diesel Generator GPP160 (three phase)

Prime Power (kw/kva)	160/200
Standby Power (kw/kva)	176/220
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	288
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Open Type-Dimension (LWH) (mm)	23777801350
Open Type-Weight (kg)	1465
Soundproof Type- Dimension (LWH) (mm)	320013002000
Soundproof Type-Weight (kg)	3865
Fuel Tank Capacity(L)	350
Continuous Running Time(hr.)	8

Engine Main features:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

Engine Technical data:
Model 1106A-70TAG4

Engine brand	Perkins
Output Power (kw)	191
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Compression Ratio	16:1
Displacement (L)	7
Bore X Stroke (mm)	105*135
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	21
Fuel Consump. (g/kw·h)	204
Oil Capacity (L)	16.5

Alternator Main features:

Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
2/3 pitch winding as standard, to avoid excessive neutral currents
Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
Easy access for installation and maintenance
IP23 as standard
Self-excited control system
Resist of corruption of oil and acid

Alternator Technical data
Model UCI274H

Alternator brand	Stamford
Rated Power (kw)	160
Excitation System	Brushless, self-exciting
Voltage Regulation Mode	AVR
Connection Type	3phase,4wires,”Y” connection
Pole No.	4
Rotation Speed (r/min)	1500
Temperature Rise (℃)	125
Insulation class	H
Voltage Regulation (0 load)	≥95%～105%
Voltage accuracy	≤±1%
Protection Grade	IP23
Telephone Influence Factor	TIF＜50
Harmonic Coefficient	THF＜2%

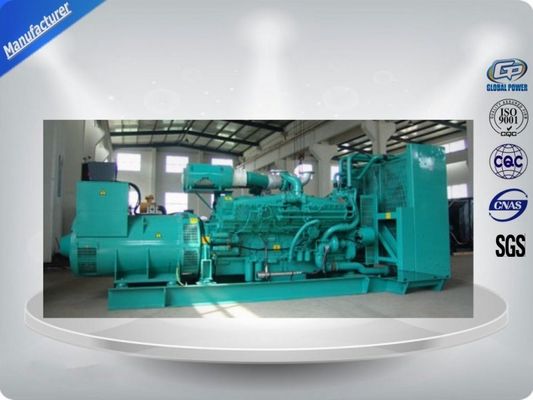

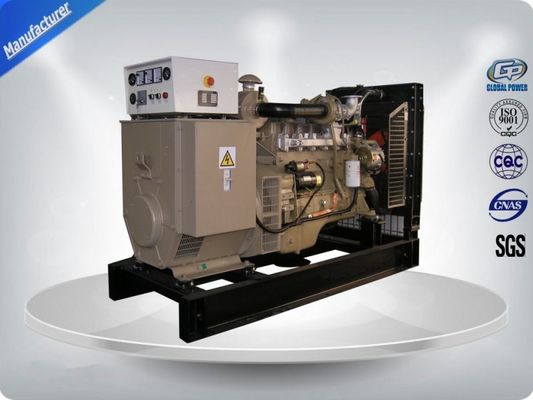

Our Picture :

Warranty and Maintenance:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
