Water - Cooled In - Line Perkins Diesel Generator Set Six Cylinder 100-200kw 225kva

Large Image : Water - Cooled In - Line Perkins Diesel Generator Set Six Cylinder 100-200kw 225kva

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	OEM / ISO
Model Number:	GP P180

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	plastic foam or plywood case packing
Delivery Time:	25 days after receiveing the down-payment
Supply Ability:	2000 sets / year

Contact Now

Detailed Product Description

Engine Brand::	Perkins	Prime Power (kw/kva):	180 / 225
Alternator Brand::	Stamford / Meecalt / Copy Stamford	Engine Model::	1306C-E87TAG4
Frequency (Hz):	50	Generator Type::	Sounproof
Control Module Brand:	Comap,SmartGen, DeepSea	Soundproof Type- Dimension (LWH) (mm):	340014002150
Package:	Plastic Foam Or Plywood Case	Fuel Tank Capacity(L):	600
Highlight:	industrial power generators , Industrial Genset

Water - Cooled In - Line Perkins Diesel Generator Set Six Cylinder 100-200kw 225kva

Basic Specification:

1. Engine brand, Perkins.

2. Alternator brand, Marathon, Stanform, Engga...etc

3. Direct injection internal combustion engine

4. AC synchronous generator ( single bearing)

5. Cooling way, radiator with fan & water tank

6. Open type, closed type ( with sound proof canopy, trailer, container)

7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel generator set

8. Anti-vibration isolaters

9. Brushless 3 phase

10.Integral guel tank ( 8 hours)

11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)

12.50/60hz

13. Atomatic alarm system

14. Insulation, class H

Diesel Generator GPP180 (three phase)

Prime Power (kw/kva)	180/225
Standby Power (kw/kva)	200/250
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	324
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Open Type-Dimension (LWH) (mm)	26009001570
Open Type-Weight (kg)	1950
Soundproof Type- Dimension (LWH) (mm)	340014002150
Soundproof Type-Weight (kg)	4750
Fuel Tank Capacity(L)	600
Continuous Running Time(hr.)	8

Engine specifications:

1.Main features:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

2.Technical data

Model 1306C-E87TAG4

Engine brand	Perkins
Output Power (kw)	217
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Compression Ratio	16.9:1
Displacement (L)	8.7
Bore X Stroke (mm)	116.6*135.9
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	37.2
Fuel Consump. (g/kw·h)	201
Oil Capacity (L)	26.4

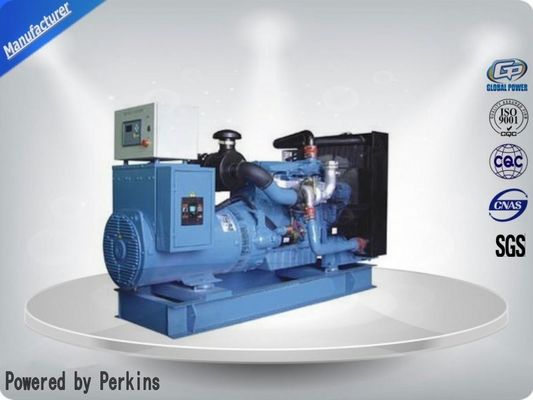

Product Picture:

Water - Cooled In - Line Perkins Diesel Generator Set Six Cylinder 100-200kw 225kva

Features and benefits

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door
