Name: 50Hz 400V Electronic Starting Industrial Generator Set 800 L Fuel Tank Capacity
Brand: WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
SKU: GP P480
Availability: InStock

MOQ:	1 set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets / year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

OEM / ISO

Model Number

GP P480

Engine Brand::

Perkins

Output Power (kw):

574

Alternator Brand::

Stamford / Meecalt / Copy Stamford

Engine Model::

2806C-E18TAG1A

Frequency (Hz):

Starting System:

24V DC Electric

Control Module Brand:

Comap,SmartGen, DeepSea

Soundproof Type- Dimension (L*W*H) (mm):

4400*1500*2300

Soundproof Type-Weight (kg):

9000

Package:

Plastic Foam Or Plywood Case

Highlight:

50hz electric generator set

50hz industrial generator set

400v electric generator set

Product Description

50Hz 400V Electronic Starting Industrial Generator Set 800 L Fuel Tank Capacity

Diesel Generator GPP480 (three phase)

Prime Power (kw/kva)	480/600
Standby Power (kw/kva)	528/660
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	864
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Open Type-Dimension (LWH) (mm)	340015502000
Open Type-Weight (kg)	3850
Soundproof Type- Dimension (LWH) (mm)	440015002300
Soundproof Type-Weight (kg)	9000
Fuel Tank Capacity(L)	800
Continuous Running Time(hr.)	8

Applications:

Home, Buildings, Hospitals, Train station,

Bank, Telecom, Mining, Military, Outdoor projects, etc.

Engine specifications:

1.Main features:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

2.Technical data

Model 2806C-E18TAG1A

Engine brand	Perkins
Output Power (kw)	574
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Compression Ratio	14.5:1
Displacement (L)	18.1
Bore X Stroke (mm)	145*183
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	61
Fuel Consump. (g/kw·h)	203
Oil Capacity (L)	62

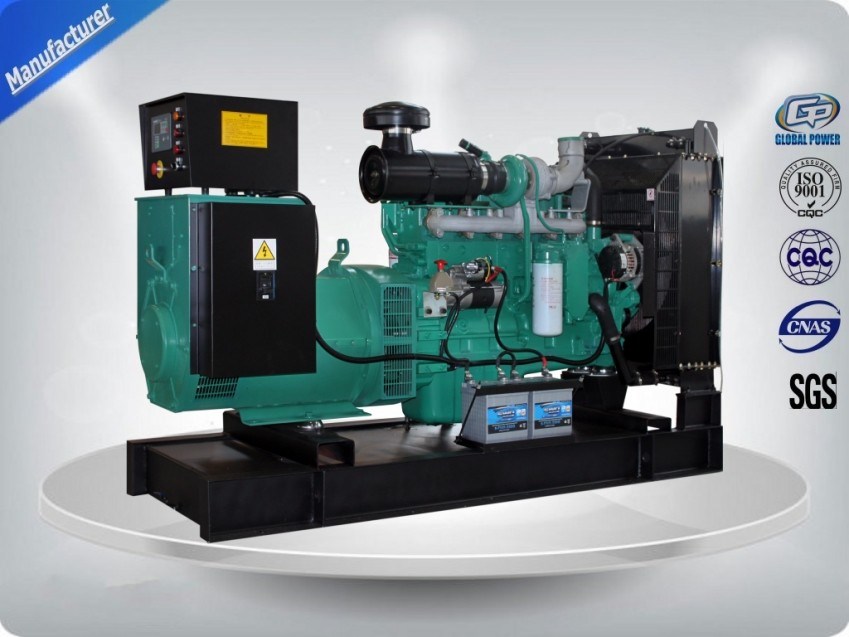

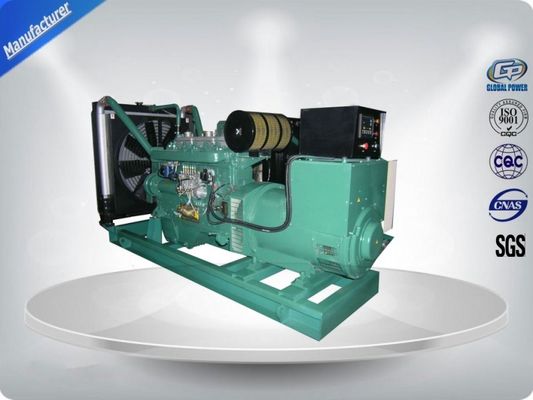

Product Picture:

50Hz 400V Electronic Starting Industrial Generator Set 800 L Fuel Tank Capacity 0

Features and benefits

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door

Warranty and Maintenance:

Guarantee Period: One year or 1000 running hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent by air express.
24 hours service hotline is available for customers.
