Product Details:
Payment & Shipping Terms:
|
| Engine Brand:: | Perkins | Output Power (kw): | 632 |
|---|---|---|---|
| Alternator Brand:: | Stamford / Meecalt / Copy Stamford | Engine Model:: | 4006-23TAG2A |
| Cooling System: | Water-cooled | Speed Governing: | Electronic |
| Control Module Brand: | Comap,SmartGen, DeepSea | Soundproof Type- Dimension (L*W*H) (mm): | 4400*1850*2500 |
| Soundproof Type-Weight (kg): | 11050 | Package: | Plastic Foam Or Plywood Case |
| Highlight: | industrial power generators,industrial diesel generators |
||

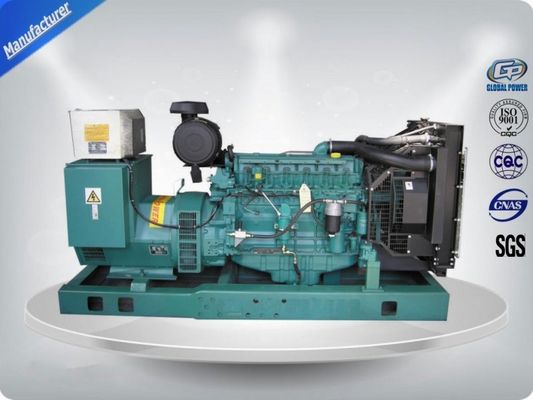

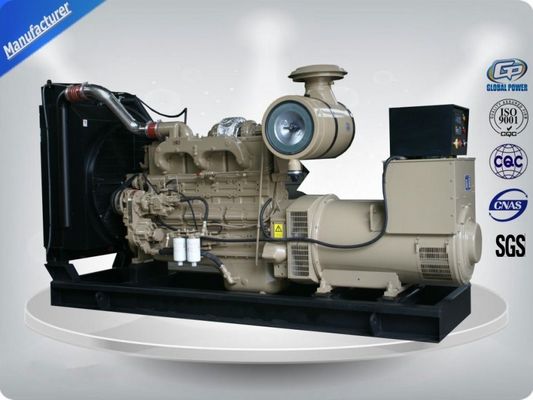

4 Pole Electronic Industrial Power Generators 750kva with Stamford / Copy Stamford Alternator
Diesel Generator GPP600 (three phase)
Prime Power (kw/kva) | 600/750 |
Standby Power (kw/kva) | 660/825 |
Rated Voltage (V) | 400/230 |
Voltage Recovery Time | ≤1S |
Rated Current (A) | 1080 |
Rated Frequency (Hz) | 50 |
Frequency Recovery Time | ≤5S |
Wave Distortion | ≤5%, sine wave |
Running Noise db(A)/7m(Silent type) | 75 |
Battery capacity (V-Ah) | 24V 100Ah |
Open Type-Dimension (L*W*H) (mm) | 4450*1650*2400 |
Open Type-Weight (kg) | 5000 |
Soundproof Type- Dimension (L*W*H) (mm) | 4400*1850*2500 |
Soundproof Type-Weight (kg) | 11050 |
Fuel Tank Capacity(L) | 1000 |
Continuous Running Time(hr.) | 6 |
Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Engine specifications:
1.Main features:
2.Technical data
Model 4006-23TAG2A
Engine brand | Perkins |
Output Power (kw) | 632 |
Cylinder No. & Config. | 6, in-line |
Combustion System | direct injection |
Compression Ratio | 13.6:1 |
Displacement (L) | 22.9 |
Bore X Stroke (mm) | 160*190 |
Engine Speed (r/min) | 1500 |
Speed Governing | Electronic |
Starting System | 24V DC Electric |
Filter System | Dry oil filter/Fuel filter/Oil filter |
Cooling system | Water-cooled |
Coolant capacity (L) | 105 |
Fuel Consump. (g/kw·h) | 202 |
Oil Capacity (L) | 113.4 |
Alternator specifications:
Model LVI634B
Alternator brand | Stamford |
Rated Power (kw) | 600 |
Excitation System | Brushless, self-exciting |
Voltage Regulation Mode | AVR |
Connection Type | 3phase,4wires,”Y” connection |
Pole No. | 4 |
Rotation Speed (r/min) | 1500 |
Temperature Rise (℃) | 125 |
Insulation class | H |
Voltage Regulation (0 load) | ≥95%～105% |
Voltage accuracy | ≤±1% |
Protection Grade | IP23 |
Telephone Influence Factor | TIF＜50 |
Harmonic Coefficient | THF＜2% |
Product Picture:
Features and benefits
Warranty and Maintenance:
