Name: Twelve - Cylinder Container Type Silent Diesel Genset , 800 Kw Diesel Generator Set
Brand: WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
SKU: GP C800
Availability: InStock

MOQ:	1 set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets / year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

CE / ISO

Model Number

GP C800

Engine Brand::

Cummins

Alternator::

Stamford / Meecalt / Copy Stamford

Engine Model::

KTA38-G2B

Rated Frequency (Hz):

Type::

Container

Power:

800 Kw

Highlight:

silent container generator set

silent containerised diesel generator

container type container generator set

Product Description

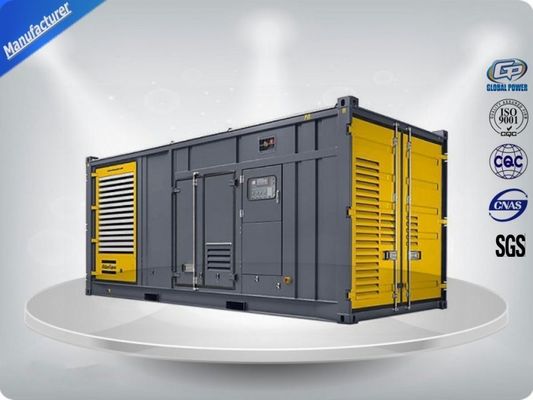

Twelve - Cylinder Container Type Silent Diesel Genset , 800 Kw Diesel Generator Set

Generator data

Diesel Generator GPC800 (three phase)

Prime Power (kw/kva)	800/1000
Standby Power (kw/kva)	880/1100
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	1443
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	12V 100Ah
Open Type-Dimension (LWH) (mm)	445018502400
Open Type-Weight (kg)	7100
Soundproof Type- Dimension (LWH) (mm)	/
Soundproof Type-Weight (kg)	/
Fuel Tank Capacity(L)	/
Continuous Running Time(hr.)	6

Twelve - Cylinder Container Type Silent Diesel Genset , 800 Kw Diesel Generator Set 0

Engine specifications

Engine

Main features:

l Twelve-cylinder, water-cooled, in “V” diesel engine

l Efficient fuel system for max power output and durability

l Large-capacity air cleaner

l Cost effective, fuel efficient and reliable performance

l Functional engine with compact structure

l Excellent after-sales service and sufficient spare parts supplying

l Easy installation and ready access for routine maintenance

Technical data

Model KTA38-G5

Engine brand	Cummins
Output Power (kw)	880
Cylinder No. & Config.	12,in “V”
Combustion System	direct injection
Compression Ratio	14.5:1
Displacement (L)	37.8
Bore X Stroke (mm)	159*159
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	199
Fuel Consump. (g/kw·h)	202
Oil Capacity (L)	135

Twelve - Cylinder Container Type Silent Diesel Genset , 800 Kw Diesel Generator Set 1

Features and benefits

l Tightly structure, excellent design and craft

l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)

l Self-diagnostic capability simplifies troubleshooting

l LCD display shows system status and setup information

l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality

l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.

l Enclosed muffler for added quietness

l Service and maintenance accessible through easy-latch side service door
