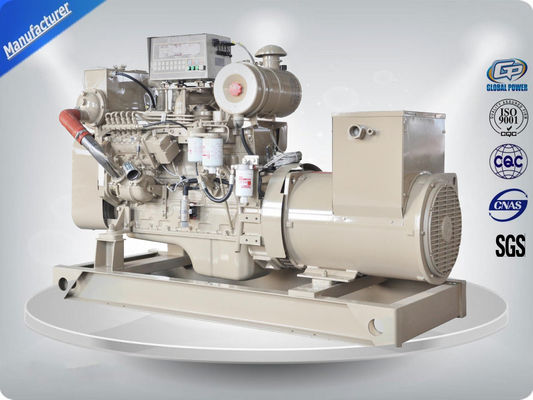

Name: Stamford Alternator 3 Phase Marine Generator Set 8.3 Liter Displacement
Brand: WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
SKU: CCFJ100J
Availability: InStock

MOQ:	2 sets
Price:	Negociable
Standard Packaging:	Plastic Foam or Plywood Case
Delivery Period:	30-35 days after receiving the down-payment

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

CCS / ISO

Model Number

CCFJ100J

Type::

Micro-Computer Control Automatic Diesel Generator

Cooling Method:

Water Cooling

Output Type:

AC Three Phase

Speed:

1500prm 50Hz

Conditions Of Use:

Land Use

Type Of Unit:

Automation Type

Excitation Mode:

Self-Excited

Export Markets:

Southeast Asia, The Middle East,

Stroke:

Four Stroke

Installation Method:

Fixed

Highlight:

3 phase marine generator set

3 phase cat marine generator

50hz cat marine generator

Product Description

Stamford Alternator 3 Phase Marine Generator Set 8.3 Liter Displacement

Main Feature of Cummins Marine Diesel Generator

• Economical: Cummins Marine Diesel Generator is one of the lowest fuel consumption in the world.

• High reliability and long life span.

• Perfect starting ability: Can start successfully at -10 Degree Centigrade without any accessories.

• Perfect low load condition: The air inlet system choose "HELLO" technical to improve burning performance and reduce fuel consumption.

• Convenient maintenance: simple & reliable structures and L line cylinders provides convenient maintenance and inspection .

• Can provide certificates of Marine Products, conforming to IACS (International Association of Classification Societies)

CUMMINS Marine Genset Model List :

Stamford Alternator 3 Phase Marine Generator Set 8.3 Liter Displacement 0

Specification:

1. Specification of genset
Gensets model				CCFJ100J
Rated power				100KW
Rated voltage				400/230V
Rated current				180A
Rated frequency(HZ)				50
Rated speed				1500rpm
Power factor				0.8(lagging)
Dimensions(mm) (L×W×H)				22508501400
Genset weight(kg)				1500
2. Specification of diesel engine
Engine brand				DCEC Cummins
Engine model				6CT8.3-GM115
Number of Cylinders				6
Cylinder arrangement				Vertical in-line
Cycle				Four stroke
Aspiration				Turbocharged
Bore×Stroke (mm×mm)				114 x 135
Displacement (Liter)				8.3
Rated power				115KW
Rated speed				1500rpm
Starting Method				DC24V electrical starting
Speed Governor				Electronic
Cooling System				By sea water heat exchanger
Fuel Consumption				212g/kw.h
3. Specification of alternator
Alternator brand				Stamford
Alternator model				UCM274E/125
Number of Phase				3
Connecting Type				3 Phase and 4 Wires
Number of Bearing				1
Protection Grade				IP23
Exciter Type				Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class				H

Stamford Alternator 3 Phase Marine Generator Set 8.3 Liter Displacement 1

Global Power Service:

1. In manufacturing of power generators, GLOBAL POWER is able to draw on an experience

of more than 10 years. Our total production capacity is about 20,000 units per year.
2. The power generator sets are designed for continuous power supply and have proved 10,000

fold around the world in various applications on every continent.
3. Except standard products, we also provide customized design service for you, design generator

sets as per your specific requirements.
4. We provide professional & in time service after sale.
