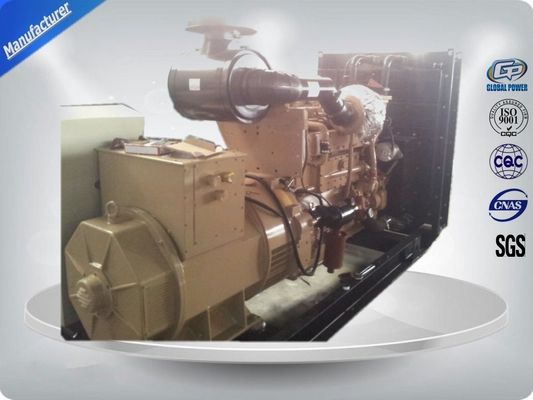

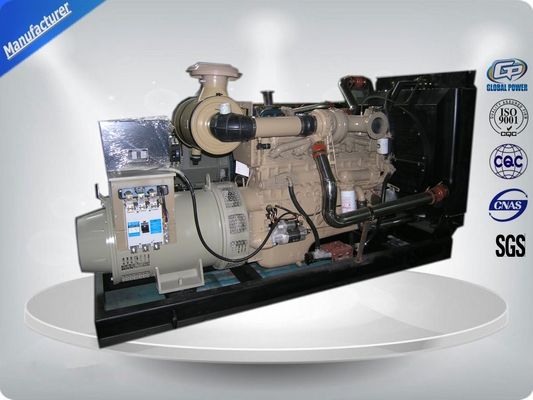

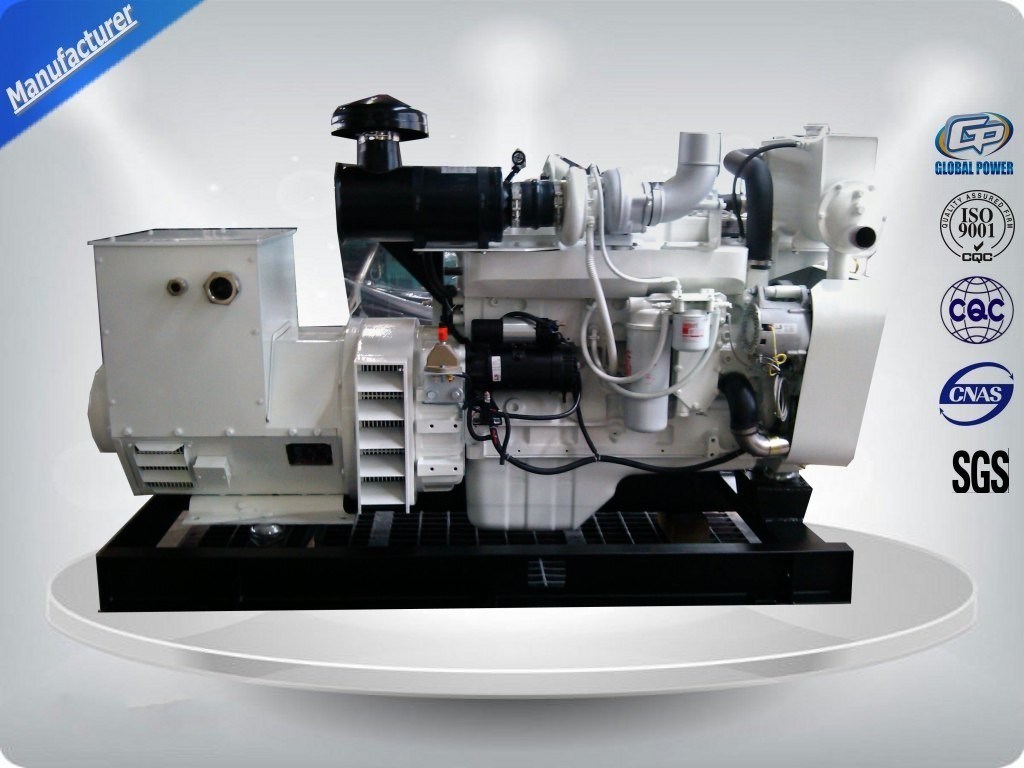

40kw-176kw 4 Wires Marine Generator Set With DC24V Electrical Starting
  • name
  • name
  • name
  • name

40kw-176kw 4 Wires Marine Generator Set With DC24V Electrical Starting

MOQ: 1 Set
Price: Negociable
Standard Packaging: Plastic Foam or Plywood Case
Delivery Period: 30-35 days after receiving the down-payment
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Global Power
Certification
CCS / ISO
Model Number
CCFJ40J
Type::
Micro-Computer Control Automatic Genset
Rated Power:
30kw -200kw
Output Type:
AC Three Phase
Speed & Frequency:
1500prm 50Hz
Insulation Class:
H
Type Of Unit:
Automation Type
Excitation Mode:
Self-Excited
Export Markets:
Southeast Asia, The Middle East,
Rated Voltage:
220V/380V, 230V/400V, 240V/415V
Installation Method:
Fixed
Highlight:

176kw cat marine generator

,

176kw marine generator set

,

220v cat marine generator

Product Description

40kw-176kw 4 Wires Marine Generator Set With DC24V Electrical Starting

Basic Info.:

1) Widely used in inland and coastal waters, offshore market carriers, fishing boats, official boats, ships    and other projects.


2) Fully meet the requirements of the "steel marine vessel construction norms", "steel ship classification rules", GB13032 "marine diesel generator sets, etc


3) Compact, high power per liter;


4) Full range protection function and alarm shutdown feature.


5) Bronze gear-type sea water pump;

Main Feature of Cummins Marine Diesel Generator

 • Economical: Cummins Marine Diesel Generator is one of the lowest fuel consumption in the world.
 • High reliability and long life span.
 • Perfect starting ability: Can start successfully at -10 Degree Centigrade without any accessories.
 • Perfect low load condition: The air inlet system choose "HELLO" technical to improve burning performance and reduce fuel consumption.
 • Convenient maintenance: simple & reliable structures and L line cylinders provides convenient maintenance and inspection .
 • Can provide certificates of Marine Products, conforming to  IACS (International Association of Classification Societies)



Supply Scope

Complete Cummins Marine Diesel Generator including marine diesel engine, alternator, heat exchanger+water pump or radiator, standard control system, circuit breaker, absorber, filters, testing report, marine class certificate, user books and other accessories etc..



CUMMINS Marine Genset Model List :
40kw-176kw 4 Wires Marine Generator Set With DC24V Electrical Starting 0


Specification:


1. Specification of genset
Gensets model CCFJ40J
Rated power 40KW
Rated voltage 400/230V
Rated current 72A
Rated frequency(HZ) 50
Rated speed 1500rpm
Power factor 0.8(lagging)
Dimensions(mm) (L×W×H) 1650*770*1200
Genset weight(kg) 1000
2. Specification of diesel engine
Engine brand DCEC Cummins
Engine model 4BT3.9-GM47
Number of Cylinders 4
Cylinder arrangement Vertical in-line
Cycle Four stroke
Aspiration Turbocharged
Rated power 115KW
Rated speed 1500rpm

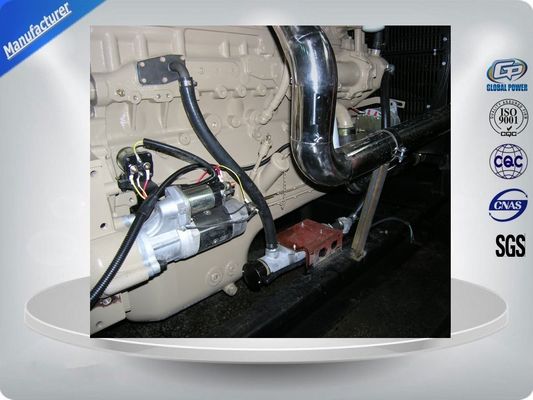

Starting Method DC24V electrical starting
Speed Governor Electronic
Cooling System By sea water heat exchanger
3. Specification of alternator
Alternator brand Stamford
Alternator model UCM224C/38
Number of Phase 3
Connecting Type 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP23
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class H



40kw-176kw 4 Wires Marine Generator Set With DC24V Electrical Starting 1

 Global Power Service:


Our Services

Ettes Power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested. Warranty is according to our standard conditions: 12 months or 1000 running hours, subject to the earlier one. Furthermore, Ettes Power will provid life-span technical support and spare parts at manufacture prices.


1. In manufacturing of power generators, GLOBAL POWER is able to draw on an experience
    of more than 10 years. Our total production capacity is about 20,000  units per year.
2. The power generator sets are designed for continuous power supply and have proved 10,000
    fold around the world in various applications on every continent.
3. Except standard products, we also provide customized design service for you, design generator
    sets as per your specific requirements.
4. We provide professional & in time service after sale.
