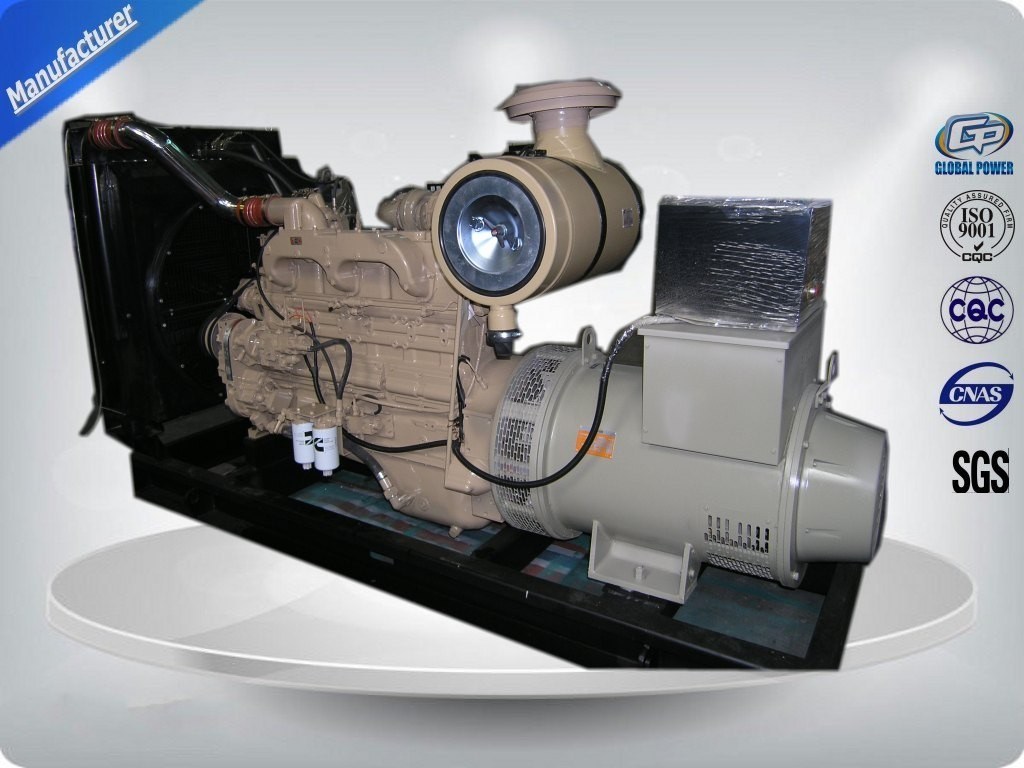

176kw 220kva 3 Phase Cummins Marine Generator Set 4 Cylinders Low Emission
  • name

176kw 220kva 3 Phase Cummins Marine Generator Set 4 Cylinders Low Emission

MOQ: 1 Set
Price: Negociable
Standard Packaging: Plastic Foam or Plywood Case
Delivery Period: 30-35 days after receiving the down-payment
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Global Power
Certification
CCS / ISO
Model Number
CCFJ160J
Type::
Micro-Computer Control Automatic Genset
Max Power:
176kw / 220kva
Rated Current Range:
36-2088A, Available
Speed & Frequency:
1500 / 1800prm , 50 / 60Hz
Insulation Class:
H
Integrated Control System:
Assembled On The Skid Base
Excitation Mode:
Self-Excited
Export Markets:
Southeast Asia, The Middle East, Middle Ais, South Africa And So On....
Rated Voltage:
220V/380V, 230V/400V, 240V/415V
Installation Method:
Fixed
Highlight:

176kw Marine Generator Set

,

220kva Marine Generator Set

,

4 Cylinders genset marine

Product Description

176kw / 220kva 3 Phase Cummins Marine Generator Set 4 Cylinders Low Emission

Basic Info.:

  Series marine generator have features of compact structure,  large power , low oil consumption , low discharge, low noise, reliable performances,  and long services life .Its professional service networks are spread across the country and world , which can provide 24 hours after service and assure the supplying of accessories in time.

Feature:
  •  Marine generator can use for Marine generator,
  •  Marine emergency generator or Harbor generator
  • We use the marine synchronouse Alternator with the brands of Stamford , Maraphon and Simens    marine Alternator etc. Also can be supplied at the request of customers.
  • Parallel connection: Two and more normal marine generating sets can transfer loading without stoping , and can realize parallel.
  • Protection function :Thare are over limit alarming for speed , oil pressure, cooling water temperature and oil temperature.
  • Can provide CCS, BV , ABS,GL,RS, DNV classification certificate.
Supply Scope

Complete Cummins Marine Diesel Generator including marine diesel engine, alternator, heat exchanger+water pump or radiator, standard control system, circuit breaker, absorber, filters, testing report, marine class certificate, user books and other accessories etc..



CUMMINS Marine Genset Model List :
176kw 220kva 3 Phase Cummins Marine Generator Set 4 Cylinders Low Emission 0


Specification:


1. Specification of genset
Gensets model CCFJ160J
Rated power 160KW
Rated voltage 400/230V
Rated current 288A
Rated frequency(HZ) 50
Rated speed 1500rpm
Power factor 0.8(lagging)
Dimensions(mm) (L×W×H) 2400*900*1550
Genset weight(kg) 1900
2. Specification of diesel engine
Engine brand Cummins
Engine model 6LTAA8.9-GM200
Number of Cylinders 4
Cylinder arrangement Vertical in-line
Cycle Four stroke
Aspiration Turbocharged
Rated power 200KW
Rated speed 1500rpm
Starting Method DC24V electrical starting
Speed Governor Electronic
Cooling System By sea water heat exchanger
3. Specification of alternator
Alternator brand Stamford
Alternator model UCM274J/200
Number of Phase 3
Connecting Type 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP23
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class H



176kw 220kva 3 Phase Cummins Marine Generator Set 4 Cylinders Low Emission 1

 Global Power Service:


Our Services

Ettes Power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested. Warranty is according to our standard conditions: 12 months or 1000 running hours, subject to the earlier one. Furthermore, Ettes Power will provid life-span technical support and spare parts at manufacture prices.


1. In manufacturing of power generators, GLOBAL POWER is able to draw on an experience
    of more than 10 years. Our total production capacity is about 20,000  units per year.
2. The power generator sets are designed for continuous power supply and have proved 10,000
    fold around the world in various applications on every continent.
3. Except standard products, we also provide customized design service for you, design generator
    sets as per your specific requirements.
4. We provide professional & in time service after sale.







Tags:

marine diesel genset,

Emergency Generator Set,

Marine Genset
