0.26Kg Diesel Generator Automatic smartgen Controller 5A Ct Secondary Current
  • name
  • name

0.26Kg Diesel Generator Automatic smartgen Controller 5A Ct Secondary Current

MOQ: 1set
Price: negotiable
Standard Packaging: plastic foam or plywood case packing
Delivery Period: 25 days after receiveing the down-payment
Supply Capacity: 2000 sets/year
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Weichai
Certification
CE / ISO
Model Number
HGM410
Place Of Origin::
China (Mainland)
Power Consumption:
DC8.0V To 35.0V, Continuous
Speed Sensor Voltage:
1.0V To 24V (effective Value)
CT Secondary Current:
5A (rated )
Storage Condition:
Temperature: (-30~+80)ºC
Controller:
HGM410
Weight:
0.26kg
Highlight:

automatic diesel generator controller

,

automatic auto start diesel generator

,

smartgen diesel generator controller

Product Description

0.26Kg Diesel Generator Automatic smartgen Controller 5A Ct Secondary Current​



 Specifications:

natural gas electric generators
1.weichai brand gas engine
2.green power supply
3.CE and ISO
4.one year warranty

Specifications of HGM410

Items

Contents

Working Voltage

DC8.0V to 35.0V, continuous

Power Consumption

<3W(Standby mode: ≤2W)

AC voltage Input:

3 Phase 4 Wire

2 Phase 3 Wire

Single phase 2 Wire

3 Phase 3 Wire

15V AC - 360 VAC (ph-N)

15V AC - 360 VAC (ph-N)

15V AC - 360 VAC (ph-N)

30V AC - 620 VAC (ph-ph)

Alternator Frequency

50Hz/60 Hz

Speed Sensor Voltage

1.0V to 24V (effective value)

Speed Sensor Frequency

10,000 Hz (max)

Start Relay Output

5ADC28V power supply

Programmable Relay Output 1

5ADC28V power supply

Programmable Relay Output 2

5ADC28V power supply

Programmable Relay Output 3

5ADC28V power supply

Programmable Relay Output 4

5A AC250V voltage-free output

Programmable Relay Output 5

5A AC250V voltage-free output

Overall Dimensions

130mm x 112mm x 39mm

Panel Cutout

110mm x 90mm

CT Secondary Current

5A (rated )

Working Condition

Temperature: (-25~70)ºC; Humidity: (20~93)%RH

Storage Condition

Temperature: (-30~+80)ºC

Protection Level

IP55: when waterproof rubber gasket added between controller and its panel.

IP42: when waterproof rubber gasket not added between controller and its panel.

Insulation Intensity

Object: among in input/output/power

Quote standard: IEC688-1992

Test way: AC1.5 kV/1min 3mA leakage current

Weight

0.26kg



Typical Diagram

0.26Kg Diesel Generator Automatic smartgen Controller 5A Ct Secondary Current 0

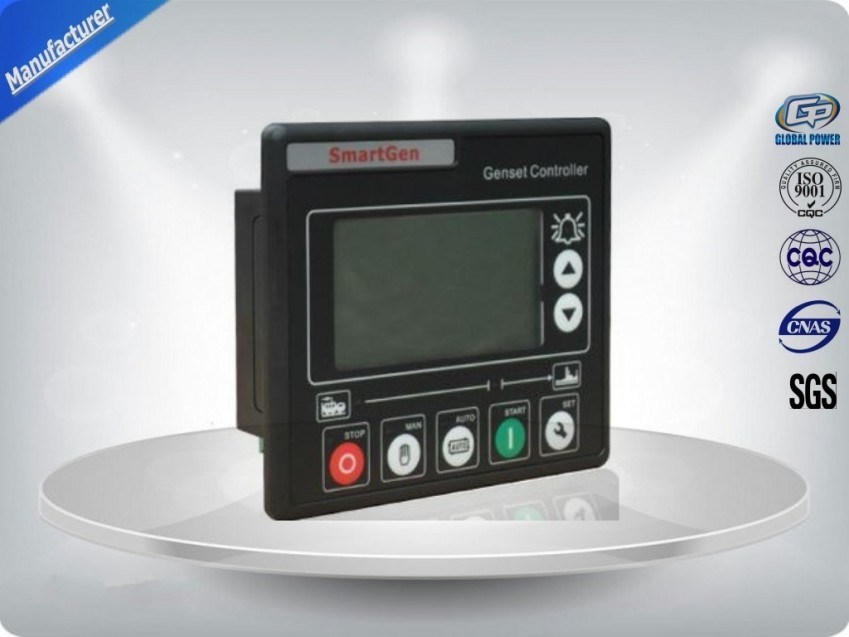

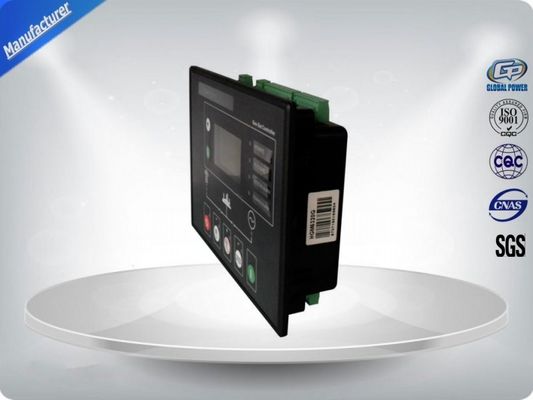

Our Picture :
0.26Kg Diesel Generator Automatic smartgen Controller 5A Ct Secondary Current 10.26Kg Diesel Generator Automatic smartgen Controller 5A Ct Secondary Current 2

Our Service:

  1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
  2.  Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
  3. Build customers’ profiles, follow-up service, make regular calls on customers

Our Main Product:

  1. Diesel Generating Set
  2. Gasoline Generating Set
  3. Gas Generating set
  4. Mobile Light Tower
  5. Forklift
  6. Air Compressor
  7. Control System
  8. Standard Control Panel
  9. Auto Control Panel
  10. Auto Parallel Control Panel
  11. ATS
  12. Brushless Alternat


Warranty and Maintenance:

  1. Guarantee Period: One year or 1000 running hours whichever comes first.
  2. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  3. Spare-parts can also be sent by air express.
