Product Details:
Payment & Shipping Terms:
|
| Place Of Origin:: | China (Mainland) | Prime Power (kw): | 80 |
|---|---|---|---|
| Alternator Frequency: | 50Hz / 60 Hz | Overall Dimensions: | 130mm X 112mm X 39mm |
| Panel Cutout(l*w*h/mm）: | 110mm X 90mm | Controller: | HGM420 / 410 |
| Weight: | 0.26kg | Working Voltage: | DC8.0V To 35.0V, Continuous |
| Highlight: | generator auto start controller,generator speed controller |
||

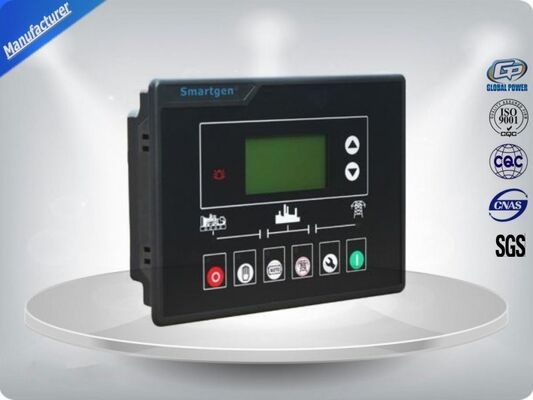

Continuous Generator Paralleling Controller 80 Kw Prime Power Power Consumption <3W
Specifications of HGM410
|
Items |
Contents |
|
Working Voltage |
DC8.0V to 35.0V, continuous |
|
Power Consumption |
<3W(Standby mode: ≤2W) |
|
AC voltage Input: 3 Phase 4 Wire 2 Phase 3 Wire Single phase 2 Wire 3 Phase 3 Wire |
15V AC - 360 VAC (ph-N) 15V AC - 360 VAC (ph-N) 15V AC - 360 VAC (ph-N) 30V AC - 620 VAC (ph-ph) |
|
Alternator Frequency |
50Hz/60 Hz |
|
Speed Sensor Voltage |
1.0V to 24V (effective value) |
|
Speed Sensor Frequency |
10,000 Hz (max) |
|
Start Relay Output |
5ADC28V power supply |
|
Programmable Relay Output 1 |
5ADC28V power supply |
|
Programmable Relay Output 2 |
5ADC28V power supply |
|
Programmable Relay Output 3 |
5ADC28V power supply |
|
Programmable Relay Output 4 |
5A AC250V voltage-free output |
|
Programmable Relay Output 5 |
5A AC250V voltage-free output |
|
Overall Dimensions |
130mm x 112mm x 39mm |
|
Panel Cutout |
110mm x 90mm |
|
CT Secondary Current |
5A (rated ) |
|
Working Condition |
Temperature: (-25~70)ºC; Humidity: (20~93)%RH |
|
Storage Condition |
Temperature: (-30~+80)ºC |
|
Protection Level |
IP55: when waterproof rubber gasket added between controller and its panel. IP42: when waterproof rubber gasket not added between controller and its panel. |
|
Insulation Intensity |
Object: among in input/output/power Quote standard: IEC688-1992 Test way: AC1.5 kV/1min 3mA leakage current |
|
Weight |
0.26kg |
Typical Diagram
Our Service:
Performance and characteristics:
HGM400 series controller has two variants:
HGM410: Automatic Start Module, it controls generator to start/stop by remote start signal;
HGM420: Based on HGM410, add mains AC monitoring, mains/generator automatic switching control (AMF), especially suitable for automatic control system composed by mains and generator.
132x64 LCD with backlight, optional language interface (Chinese, English, Spanish and Russian), push-button operation;
Adapt to 3 phase 4 wire, single phase 2 wire, 3 phase 3 wire and 2 phase 3 wire (120/240V), 50/60Hz power supply;
Can measure and display 3-phase voltage, 3-phase current, frequency, and power;
For mains: Over/under voltage, lack of phase; for generator: over/under voltage, over/under frequency, over current;
Precision measure and display engine parameters,
Control protection: Automatic start/stop, switch on/off (ATS control) and fault display;
With ETS, idle control, pre-heat control, acceleration and deceleration control, all are relay output;
Parameters setting: Allow user to modify parameters and store them in internal FLASH, which cannot be lost even when power off. All the parameters can be adjusted from the front panel, or by PC via an SG72 adaptor;
Types of temperature and pressure sensor can be directly used and user defined;
Conditions of crank disconnect can be selected.(magnetic pickup, oil pressure, generator);
Power supply range is (8~35)VDC, accommodating to different starting voltage;
All parameters use digital modulation, abandoning analog modulation of conventional potentiometer, more reliability and stability;
