Water - Cooled Diesel Generator Controller With CE / ISO Certification
  • name
  • name

Water - Cooled Diesel Generator Controller With CE / ISO Certification

MOQ: 1set
Price: negotiable
Standard Packaging: plastic foam or plywood case packing
Delivery Period: 25 days after receiveing the down-payment
Supply Capacity: 2000 sets/year
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Smartgen
Certification
CE / ISO
Model Number
HGM1780
Place Of Origin::
China (Mainland)
Brand:
Smartgen
Alternator Frequency:
50Hz / 60 Hz
Weight:
0.15kg
Speed Sensor Voltage:
1V To 24V (active Value)
Controller:
HGM1780
Speed Sensor Frequency:
Ax. 10kHz
Alternator Input Range:
15 - 305 V AC RMS (+20%)
Highlight:

24v diesel generator controller

,

50hz diesel generator controller

,

24v auto start diesel generator

Product Description

Water - Cooled Diesel Generator Controller With CE / ISO Certification



Specifications

Smartgen Auto Control Panel HGM1780
Used on Water-cooled diesel generator
Automatic control



Item

Content

Operating Voltage

DC8. 0V to 35. 0V, Continuous Power Supply

Power Consumption

Standby, 12V-0.3W, 24V-0.4W

Working, 12V-1W, 24V-1.1W

Alternator voltage  Input

1P2L 15V AC ~ 360 V AC (ph-N)

Alternator Frequency

50/60Hz

Speed sensor voltage

1V to 24V (active value)

Speed sensor Frequency

Max. 10kHz

Max. accumulative running  time

99999.9 hours (it is 1/10 hour after decimal point, means changing/6 min.)

Start Relay Output

1Amp DC28V  DC B+ power on to output

Fuel Relay Output

1Amp DC28V  DC B+ power on to output

Stop Relay Output

1Amp DC28V  DC B+ power on to output

Idle Relay Output

1Amp DC28V  DC B+ power on to output

Configured Relay Output

1Amp DC28V  DC B+ power on to output

Switching value input port

Active when connected with B-

Overall dimensions

88mm x 76mm x 44mm

Panel cut off

78x66mm

Working conditions

Temperature, (-25~+70)ºC

Humidity, (20~90)% without condensation

Storage Condition

Temperature, (-30~+80)ºC

Protective Level

IP55, when waterproof rubber ring added between controller and its panel.

IP42, when waterproof rubber ring not have between controller and its panel.

Insulation Intensity

Object: among in input/output/power

Quote standard: IEC688-1992

Test way: AC1.5kV/1min 1mA leakage current

Weight

0.15kg

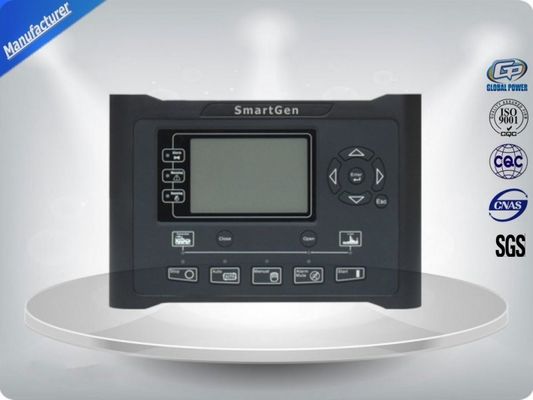

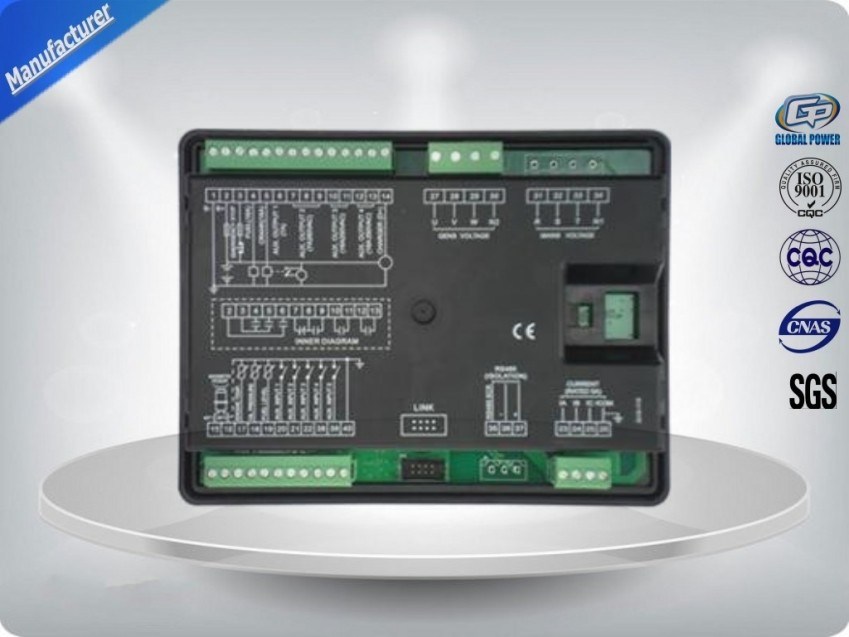

Product Picture:

Water - Cooled Diesel Generator Controller With CE / ISO Certification 0


Our Service:

  1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
  2.  Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
  3. Build customers’ profiles, follow-up service, make regular calls on customers

Performance and characteristics:

HGM400 series controller has two variants:
HGM410: Automatic Start Module, it controls generator to start/stop by remote start signal;
HGM420: Based on HGM410, add mains AC monitoring, mains/generator automatic switching control (AMF), especially suitable for automatic control system composed by mains and generator.

132x64 LCD with backlight, optional language interface (Chinese, English, Spanish and Russian), push-button operation;
Adapt to 3 phase 4 wire, single phase 2 wire, 3 phase 3 wire and 2 phase 3 wire (120/240V), 50/60Hz power supply;
Can measure and display 3-phase voltage, 3-phase current, frequency, and power;
For mains: Over/under voltage, lack of phase; for generator: over/under voltage, over/under frequency, over current;
Precision measure and display engine parameters,
Control protection: Automatic start/stop, switch on/off (ATS control) and fault display;
With ETS, idle control, pre-heat control, acceleration and deceleration control, all are relay output;
Parameters setting: Allow user to modify parameters and store them in internal FLASH, which cannot be lost even when power off. All the parameters can be adjusted from the front panel, or by PC via an SG72 adaptor;
Types of temperature and pressure sensor can be directly used and user defined;
Conditions of crank disconnect can be selected.(magnetic pickup, oil pressure, generator);
Power supply range is (8~35)VDC, accommodating to different starting voltage;
All parameters use digital modulation, abandoning analog modulation of conventional potentiometer, more reliability and stability;



Our Main Product:

  1. Diesel Generating Set
  2. Gasoline Generating Set
  3. Gas Generating set
  4. Mobile Light Tower
  5. Forklift
  6. Air Compressor
  7. Control System
  8. Standard Control Panel
  9. Auto Control Panel
  10. Auto Parallel Control Panel
  11. ATS
  12. Brushless Alternat


Warranty and Maintenance:

  1. Guarantee Period: One year or 1000 running hours whichever comes first.
  2. During the guarantee period, the spare-parts will be sent through your shipping agency in China.
  3. Spare-parts can also be sent by air express.
