Name: 50 Hz Water - Cooling Silent Genset Trailer 16 Cylinder Prime Power 1480Kw
Brand: WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
SKU: GP P1480
Availability: InStock

MOQ:	1 set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets / year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

OEM / ISO

Model Number

GP P1480

Engine Model:

4016TAG1A

Output Power (kw):

1588

Alternator Brand::

Stamford / Meecalt / Copy Stamford

Combustion System:

Direct Injection

Frequency (Hz):

Control Module Brand:

Comap,SmartGen, DeepSea

Continuous Running Time(hr.):

Package:

Plastic Foam Or Plywood Case

Speed:

1500 Rpm

Highlight:

gasoline generator set

trailer mounted generator

genset type silent

Product Description

50 Hz Water - Cooling Silent Genset Trailer 16 Cylinder Prime Power 1480Kw

Trailer Specification:

Using leaf spring suspension structure node with high strength and rigidity, a reasonable choice.
Trailer genset plant has a good seal, security, easy to move, flexible operation, and with a hand brake, air brake, rear light systems, in line with the requirements of the road traffic.
Widely used in construction sites, road and railway construction sites and temporary sites electricity.

Diesel Generator GPP1480 (three phase)

Prime Power (kw/kva)	1480/1850
Standby Power (kw/kva)	1628/2038
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	2664
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Open Type-Dimension (LWH) (mm)	480017002550
Open Type-Weight (kg)	9500
Soundproof Type- Dimension (LWH) (mm)	/
Soundproof Type-Weight (kg)	/
Fuel Tank Capacity(L)	/
Continuous Running Time(hr.)	6

Engine specifications:

1.Main features:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

2.Technical data

Model 4016TAG1A

Engine brand	Perkins
Output Power (kw)	1588
Cylinder No. & Config.	16 in “V”
Combustion System	direct injection
Compression Ratio	13.6:1
Displacement (L)	61.123
Bore X Stroke (mm)	160*190
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	316
Fuel Consump. (g/kw·h)	205
Oil Capacity (L)	237.2

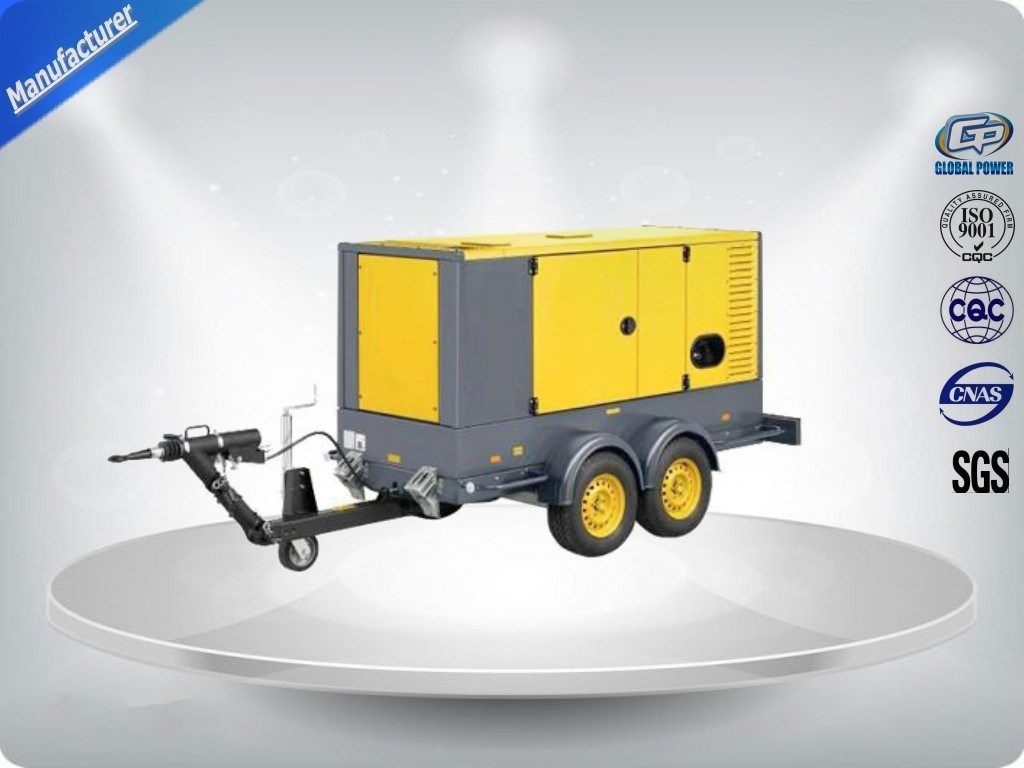

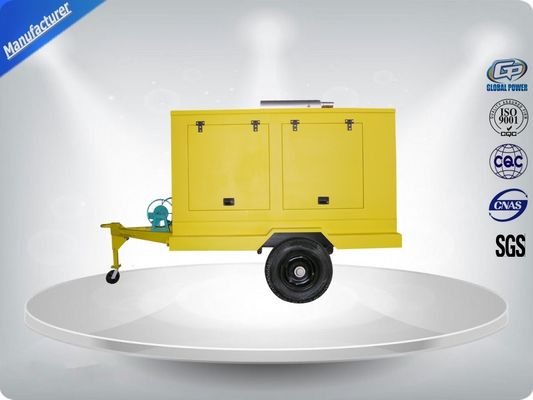

Product Picture:

50 Hz Water - Cooling Silent Genset Trailer 16 Cylinder Prime Power 1480Kw 0

Features and benefits :

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door
