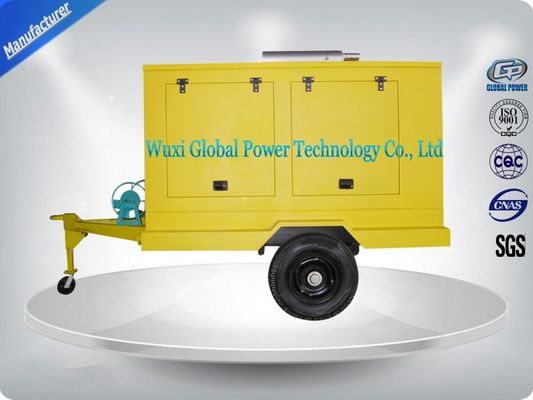

Portable Diesel Trailer Mounted Generator With Water Cooled Cooling System

20kva to 150kva Diesel Trailer Mounted Generator,portable easy move diesel engine trailer mounted generator

GP Trailer series generator sets with with prime power range from 8kva to 2500kva, powered by world famous diesel engine (Perkins, Cummins, Deutz, Kubota, Yanmar, Daewoo(Doosan), Volvol series) coupled with world famous brushless alternators (Leroy Somer, Stamford, Marathon, ENGGA etc.) made by using advanced technologies, so their performances are better.

Trailer Feature:

1. Using leaf spring suspension structure node with high strength and rigidity, a reasonable choice.
2. Trailer genset plant has a good seal, security, easy to move, flexible operation, and with a hand brake, air brake, rear light systems, in line with the requirements of the road traffic.
3. Widely used in construction sites, road and railway construction sites and temporary sites electricity.

GP Brand New Diesel Generator cooperates with good quality diesel engine such as Cummins/Perkins/Volvo ,etc .
We have factory for manufacturing our own alternator, also providing Stamford, Meccalte, Wattek for optional.
The controller with Deep sea, Smartgen, ComAp, etc.

Generator soundproof/Silent and canopy
1) Excellent ventilation
2) Black finish stainless steel locks and hinges
3) Zinc plated or stainless steel fasteners
4) Body made from steel components treated with polyester powder coating
5) Two large doors on either side
6) Radiator fill access plate
7) Fully guarded cooling fan and battery charging alternator
8) Fuel fill and battery access via lockable access doors
9) Emergency stop button on canopy exterior
10) Lube oil drain and radiator drain to exterior
11) Control panel viewing window
12) Lifting points on base frame

Alternator Feature
· Brush-less, 4 poles, rotation magnet.
· IP21-23(NEMA1) enclosure is standard for all industrial alternators.
· The insulation system is Class H
· Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
· Wide range of flange adaptors and single bearing disc coupling.
· Standard 2/3 pitch windings avoid excessive neutral currents
· AVR auto voltage regulator, auto exciter, auto adjustment


Common steel base frame, Circuit breaker, Damper, Exhaust silencer, Flexible pipe, Battery and connecting wires, Operation manual and document.

Optional Accessory
Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, Soundproof Canopy and Moving Trailer.

ATS SYSTEM
For emergency power usage in building, Auto transfer switch (ATS) is essential. ATS can automatic transfer load from Mains power supplying to Emergency power. In normal, when the Main power supplying failure or voltage drop below 80% of normal voltage, ATS will auto start Emergency generator set after a preset time of 0-10 sec (adjustable according to the users). Once generator reach at rated speed, the ATS will transfer the load to emergency generator sets automatically.

Technical Specifications :

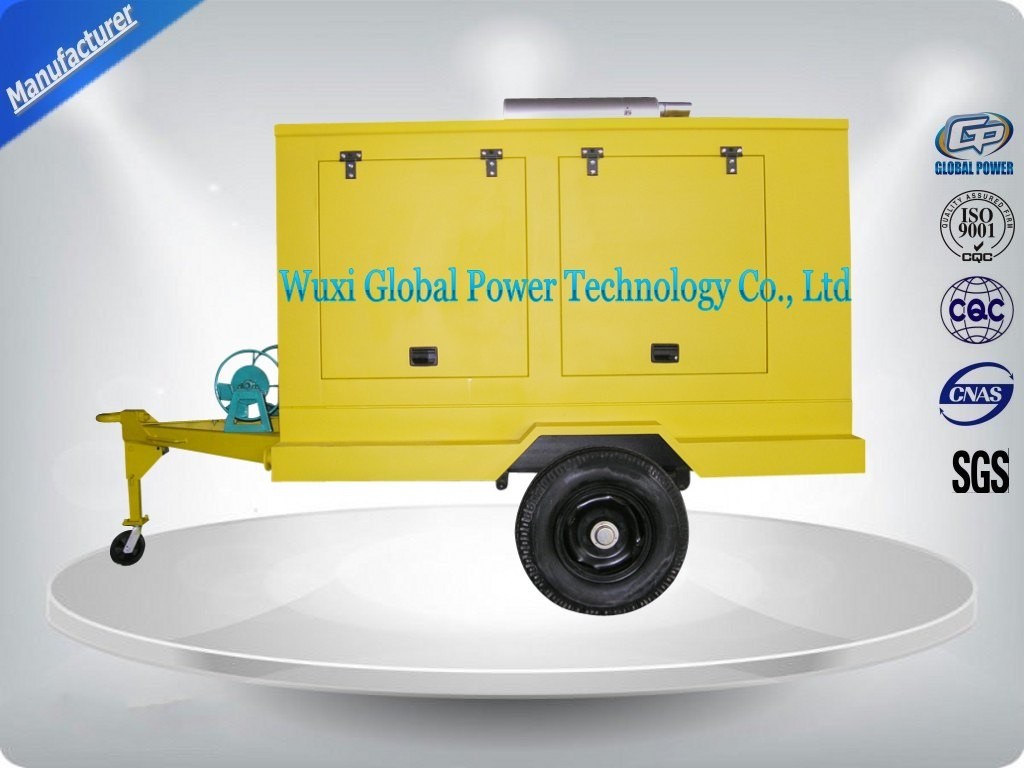

Our Picture:
