Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Cummins | Engine Model: | NT855-GA |
|---|---|---|---|
| Cooling System: | Water-cooled | Rated Power: | 200kvw/250kva |
| Alternator Brands: | Stamford / Meecalt / Copy Stamford | Rated Current (A): | 360 |
| Output Type: | AC Three Phase | Speed: | 1500/1800 Rpm |
| Frequency: | 50 Hz | ||
| Highlight: | Trailer Genset,mobile generators |
||

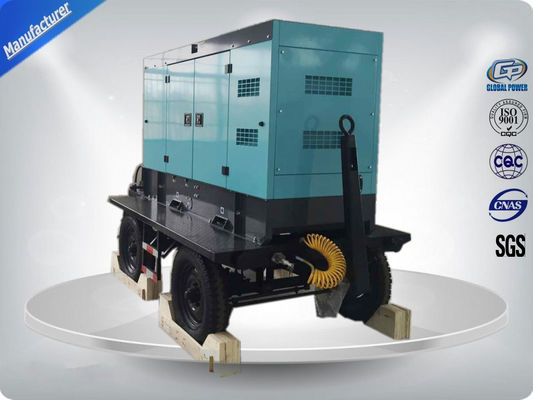

80kw 100kva Silent Type Trailer Mounted Generator With Cummins / Perkins Diesel Engine
· Engine and alternator shall be mounted on a same frame steel skid.
· Built-in damper for anti-vibration.
· Small size, low weight, easy to operating, installation and maintenance.
· World most famous brand diesel engine.
· World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.
· Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
· Full range protect function and alarm shutdown feature.
Alternator Feature
· Brush-less, 4 poles, rotation magnet.
· IP21-23(NEMA1) enclosure is standard for all industrial alternators.
· The insulation system is Class H
· Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
· Wide range of flange adaptors and single bearing disc coupling.
· Standard 2/3 pitch windings avoid excessive neutral currents
· AVR auto voltage regulator, auto exciter, auto adjustment
Common steel base frame, Circuit breaker, Damper, Exhaust silencer, Flexible pipe, Battery and connecting wires, Operation manual and document.
Optional Accessory
Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, Soundproof Canopy and Moving Trailer.
ATS SYSTEM
For emergency power usage in building, Auto transfer switch (ATS) is essential. ATS can automatic transfer load from Mains power supplying to Emergency power. In normal, when the Main power supplying failure or voltage drop below 80% of normal voltage, ATS will auto start Emergency generator set after a preset time of 0-10 sec (adjustable according to the users). Once generator reach at rated speed, the ATS will transfer the load to emergency generator sets automatically.
Trailer Feature:
GP Brand New Diesel Generator cooperates with good quality diesel engine such as Cummins/Perkins/Volvo ,etc .
We have factory for manufacturing our own alternator, also providing Stamford, Meccalte, Wattek for optional.
The controller with Deep sea, Smartgen, ComAp, etc.
Technical Specifications :
Genset | Voltage Recovery Time | ≤1S | |
Rated Current (A) | 360 | ||
Rated Frequency (Hz) | 50 | ||
Frequency Recovery Time | ≤5S | ||
Running Noise db(A)/7m(Silent type) | 75 | ||
Battery capacity (V-Ah) | 24V 100Ah | ||
Fuel Tank Capacity(L) | 70 | ||
Engine | Engine brand | Cummins | |
Output Power (kw) | 36 | ||
Cylinder No. & Config. | 4, in-line | ||
Combustion System | direct injection | ||
Compression Ratio | 16.5:1 | ||
Displacement (L) | 3.9 | ||
Bore X Stroke (mm) | 102*120 | ||
Engine Speed (r/min) | 1500 | ||
Speed Governing | Electronic | ||
Starting System | 24V DC Electric | ||
Filter System | Dry oil filter/Fuel filter/Oil filter | ||
Cooling system | Water-cooled | ||
Alternator | Alternator brand | Stamford, Mecc-alte,Faraday… | |
Excitation System | Brushless, self-exciting | ||
Voltage Regulation Mode | AVR | ||
Connection Type | 3phase,4wires,”Y” connection | ||
Pole No. | 4 | ||
Rotation Speed (r/min) | 1500 | ||
Temperature Rise (℃) | 125 | ||
Insulation class | H | ||
Voltage Regulation (0 load) | ≥95%～105% | ||
Protection Grade | IP23 | ||
Generator soundproof/Silent and canopy
1) Excellent ventilation
2) Black finish stainless steel locks and hinges
3) Zinc plated or stainless steel fasteners
4) Body made from steel components treated with polyester powder coating
5) Two large doors on either side
6) Radiator fill access plate
7) Fully guarded cooling fan and battery charging alternator
8) Fuel fill and battery access via lockable access doors
9) Emergency stop button on canopy exterior
10) Lube oil drain and radiator drain to exterior
11) Control panel viewing window
12) Lifting points on base frame
