12 Cylinder 75dB quietest Trailer Mounted Generator large in - line Config with Dry oil filter

Large Image : 12 Cylinder 75dB quietest Trailer Mounted Generator large in - line Config with Dry oil filter

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	OEM / ISO
Model Number:	GP P21

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	plastic foam or plywood case packing
Delivery Time:	25 days after receiveing the down-payment
Supply Ability:	2000 sets / year

Contact Now

Detailed Product Description

Engine Brand::	Perkins	Prime Power (kw/kva):	1200 / 1500
Alternator Brand::	Stamford / Meecalt / Copy Stamford	Engine Model::	4012-46TAG2A
Frequency (Hz):	50	Generator Type::	Trailer
Control Module Brand:	Comap,SmartGen, DeepSea	Genset Controller:	HGM410
Package:	Plastic Foam Or Plywood Case	Corlor:	Can Be Customized
Highlight:	trailer mounted diesel generator , Trailer Genset

12 Cylinder 75dB quietest Trailer Mounted Generator large in - line Config with Dry oil filter

Trailer Specification:

Using leaf spring suspension structure node with high strength and rigidity, a reasonable choice.
Trailer genset plant has a good seal, security, easy to move, flexible operation, and with a hand brake, air brake, rear light systems, in line with the requirements of the road traffic.
Widely used in construction sites, road and railway construction sites and temporary sites electricity.

Diesel Generator GPP1200 (three phase)

Prime Power (kw/kva)	1200/1500
Standby Power (kw/kva)	1320/1650
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	2160
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Open Type-Dimension (LWH) (mm)	480017002550
Open Type-Weight (kg)	9000
Soundproof Type- Dimension (LWH) (mm)	/
Soundproof Type-Weight (kg)	/
Fuel Tank Capacity(L)	/
Continuous Running Time(hr.)	6

Engine specifications :

Engine
Main features:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

Technical data

Model 4012-46TAG2A

Engine brand	Perkins
Output Power (kw)	1331
Cylinder No. & Config.	12 in “V”
Combustion System	direct injection
Compression Ratio	13.6:1
Displacement (L)	45.842
Bore X Stroke (mm)	160*190
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	207(Temp.) / 210(Trop.)
Fuel Consump. (g/kw·h)	200
Oil Capacity (L)	177

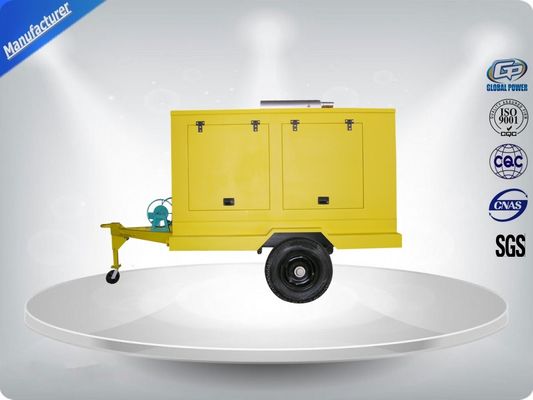

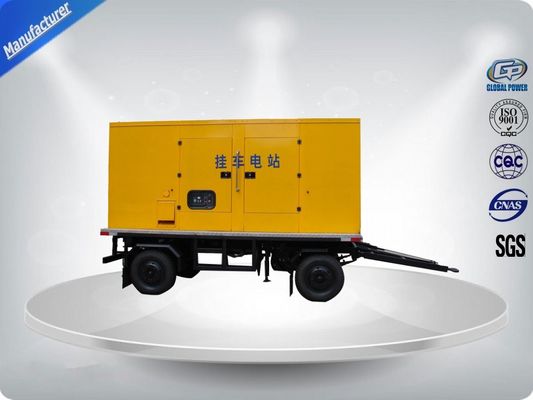

Product Picture:

12 Cylinder 75dB quietest Trailer Mounted Generator large in - line Config with Dry oil filter

Features and benefits :

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door

if you have interest , just contact me to get the price from our factory !
