Name: Rental Trailer Genset 23.3:1 Compression Ratio 1500 R / Min Engine Speed
Brand: WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
SKU: GP P21
Availability: InStock

MOQ:	1 set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets / year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

OEM / ISO

Model Number

GP P21

Engine Brand::

Perkins

Prime Power (kw/kva):

21 / 26

Alternator Brand::

Stamford / Meecalt / Copy Stamford

Engine Model::

404D-22TG

Frequency (Hz):

Generator Type::

Trailer

Control Module Brand:

Comap,SmartGen, DeepSea

Genset Controller:

HGM410

Package:

Plastic Foam Or Plywood Case

Corlor:

Can Be Customized

Highlight:

gasoline generator set

trailer mounted generator

genset type silent

Product Description

Rental Trailer Genset 23.3:1 Compression Ratio 1500 R / Min Engine Speed

Trailer Specification:

Using leaf spring suspension structure node with high strength and rigidity, a reasonable choice.
Trailer genset plant has a good seal, security, easy to move, flexible operation, and with a hand brake, air brake, rear light systems, in line with the requirements of the road traffic.
Widely used in construction sites, road and railway construction sites and temporary sites electricity.

Diesel Generator GPC280 (three phase)

Prime Power (kw/kva)	21 / 26
Standby Power (kw/kva)	23 / 29
Rated Voltage (V)	400 / 230
Voltage Recovery Time	≤1S
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	12V 100Ah

Engine specifications:
Main features

Four-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

Technical data
Model 404D-22TG

Engine brand	Perkins
Output Power (kw)	27.7
Cylinder No. & Config.	4, in-line
Combustion System	Indirect injection
Compression Ratio	23.3:1
Displacement (L)	2.216
Bore X Stroke (mm)	84*100
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	12V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	9.3
Fuel Consump. (g/kw·h)	246
Oil Capacity (L)	10.6

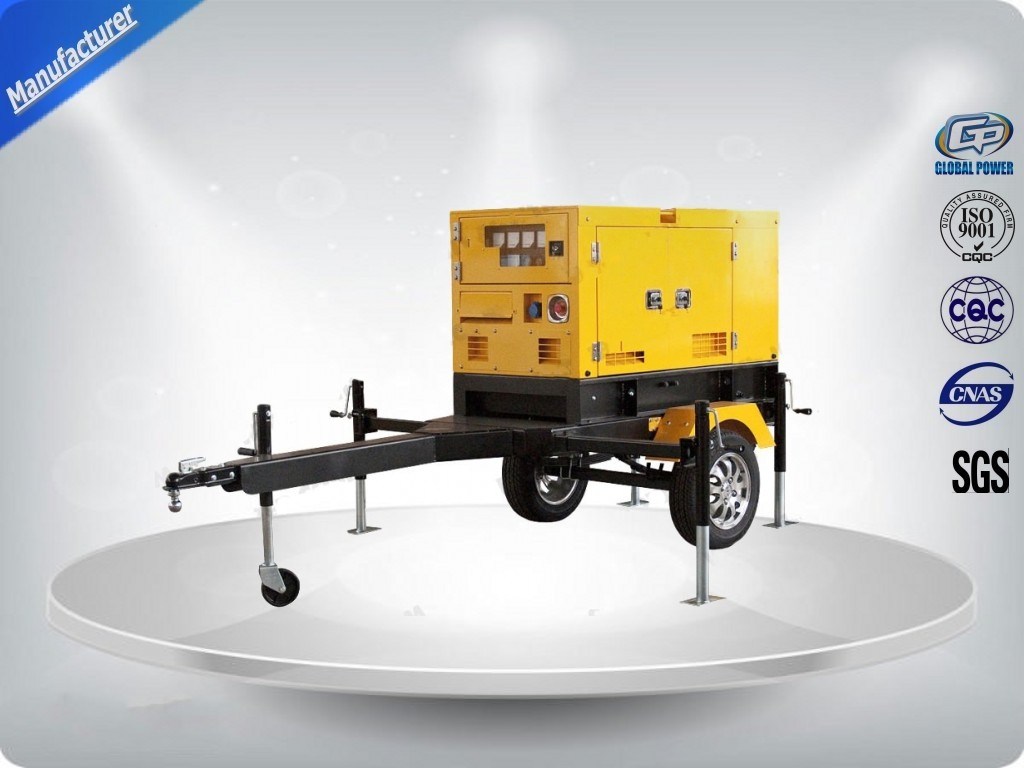

Product Picture:

Rental Trailer Genset 23.3:1 Compression Ratio 1500 R / Min Engine Speed 0

Features and benefits:

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door

if you have interest , just contact me to get the price from our factory !
