10-100Kva 30Kva Diesel Trailer Generator Easy Moving Powered By Perkins Engine

Large Image : 10-100Kva 30Kva Diesel Trailer Generator Easy Moving Powered By Perkins Engine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	OEM / ISO
Model Number:	GP P21

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	plastic foam or plywood case packing
Delivery Time:	25 days after receiveing the down-payment
Supply Ability:	2000 sets / year

Contact Now

Detailed Product Description

Engine Brand::	Perkins	Engine Model:	1103A-33G
Rated Voltage (V):	400/230	Fuel Tank Capacity(L):	70
Soundproof Type- Dimension (LWH) (mm):	21009501400	Soundproof Type-Weight (kg):	1800
Control Module Brand:	Comap,SmartGen, DeepSea	Genset Controller:	HGM410
Package:	Plastic Foam Or Plywood Case	Corlor:	Can Be Customized
Highlight:	Trailer Genset , mobile generators

10-100Kva 30Kva Diesel Trailer Generator Easy Moving Powered By Perkins Engine

Trailer Feature:

Using leaf spring suspension structure node with high strength and rigidity, a reasonable choice.
Trailer genset plant has a good seal, security, easy to move, flexible operation, and with a hand brake, air brake, rear light systems, in line with the requirements of the road traffic.
Widely used in construction sites, road and railway construction sites and temporary sites electricit

Basic Specification:
1. Engine brand, Perkins.
2. Alternator brand, Marathon, Stanform, Engga...etc
3. Direct injection internal combustion engine
4. AC synchronous generator ( single bearing)
5. Cooling way, radiator with fan & water tank
6. Open type, closed type ( with sound proof canopy, trailer, container)
7. Silent / trailer diesel generator set, containerized diesel generator set, vechile mounted diesel genset.
8. Anti-vibration isolaters
9. Brushless 3 phase
10.Integral guel tank ( 8 hours)
11. sound proof, weather proof canopy is optional ( both open type and closed type can be made)
12.50/60hz
13. Atomatic alarm system
14. Insulation, class H

Diesel Generator GPP24 (three phase)

Prime Power (kw/kva)	24/30
Standby Power (kw/kva)	26/33
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	43
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	12V 100Ah
Open Type-Dimension (LWH) (mm)	15006501080
Open Type-Weight (kg)	750
Soundproof Type- Dimension (LWH) (mm)	21009501400
Soundproof Type-Weight (kg)	1800
Fuel Tank Capacity(L)	70
Continuous Running Time(hr.)	8

Engine specifications:
Main features

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

Technical data
Model 1103A-33G

Engine brand	Perkins
Output Power (kw)	31
Cylinder No. & Config.	3, in-line
Combustion System	direct injection
Compression Ratio	19.25:1
Displacement (L)	3.3
Bore X Stroke (mm)	105*127
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	12V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	10.2
Fuel Consump. (g/kw·h)	211.1
Oil Capacity (L)	8.3

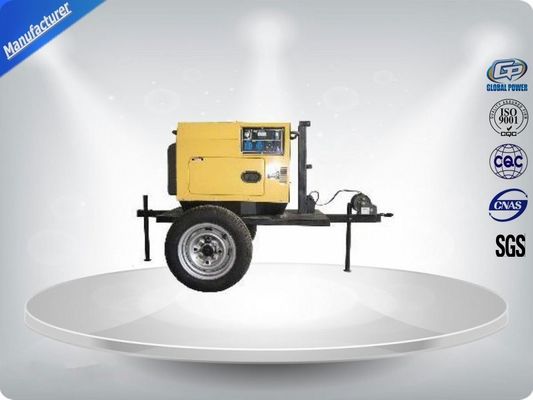

Product Picture:
10-100Kva 30Kva Diesel Trailer Generator Easy Moving Powered By Perkins Engine

Features and benefits

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door
