3 Cylinder 75dB large Trailer Mounted Generator 64 kw Output Power in - line Config

Large Image : 3 Cylinder 75dB large Trailer Mounted Generator 64 kw Output Power in - line Config

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	OEM / ISO
Model Number:	GP P48

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	plastic foam or plywood case packing
Delivery Time:	25 days after receiveing the down-payment
Supply Ability:	2000 sets / year

Contact Now

Detailed Product Description

Engine Brand::	Perkins	Prime Power (kw/kva):	48 / 60
Alternator Brand::	Stamford / Meecalt / Copy Stamford	Engine Model::	1103A-33TG2
Frequency (Hz):	50	Generator Type::	Trailer
Control Module Brand:	Comap,SmartGen, DeepSea	Soundproof Type- Dimension (LWH) (mm):	245010501550
Package:	Plastic Foam Or Plywood Case	Fuel Tank Capacity(L):	120
Highlight:	trailer mounted diesel generator , Trailer Genset

3 Cylinder 75dB large Trailer Mounted Generator 64 kw Output Power in - line Config

GP Brand New Diesel Generator cooperates with good quality diesel engine such as Cummins/Perkins/Volvo ,etc .

We have factory for manufacturing our own alternator, also providing Stamford, Meccalte, Wattek for optional.

The controller with Deep sea, Smartgen, ComAp, etc.

Trailer Feature:

Using leaf spring suspension structure node with high strength and rigidity, a reasonable choice.
Trailer genset plant has a good seal, security, easy to move, flexible operation, and with a hand brake, air brake, rear light systems, in line with the requirements of the road traffic.
Widely used in construction sites, road and railway construction sites and temporary sites electricity.

Diesel Generator GP P48 (three phase)

Prime Power (kw/kva)	48/60
Standby Power (kw/kva)	53/66
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	86
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	12V 100Ah
Open Type-Dimension (LWH) (mm)	17006501080
Open Type-Weight (kg)	850
Soundproof Type- Dimension (LWH) (mm)	245010501550
Soundproof Type-Weight (kg)	2100
Fuel Tank Capacity(L)	120
Continuous Running Time(hr.)	8

Engine specifications:

Main features

Three-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

Technical data

Model 1103A-33TG2

Engine brand	Perkins
Output Power (kw)	64
Cylinder No. & Config.	3, in-line
Combustion System	direct injection
Compression Ratio	17.25:1
Displacement (L)	3.3
Bore X Stroke (mm)	105*127
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	12V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	10.2
Fuel Consump. (g/kw·h)	217.7
Oil Capacity (L)	8.3

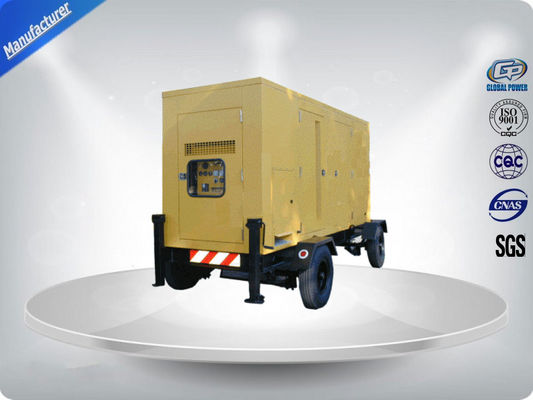

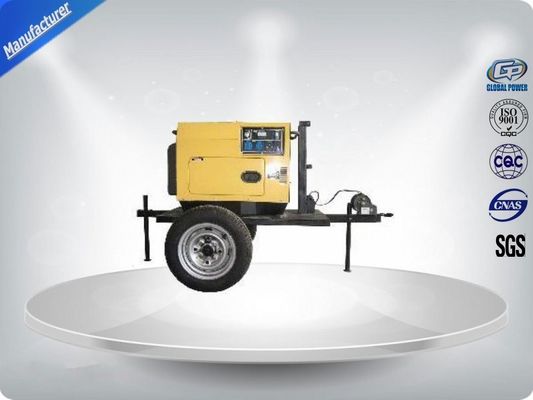

Product Picture:

3 Cylinder 75dB large Trailer Mounted Generator 64 kw Output Power in - line Config

Features and benefits:

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door

if you have interest , just contact me to get the price from our factory !
