750kva 50 Hz silent Trailer Mounted Generator with Stamford Alternator

Large Image : 750kva 50 Hz silent Trailer Mounted Generator with Stamford Alternator

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	OEM / ISO
Model Number:	GP P600

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	plastic foam or plywood case packing
Delivery Time:	25 days after receiveing the down-payment
Supply Ability:	2000 sets / year

Contact Now

Detailed Product Description

Engine Brand::	Perkins	Output Power (kw):	632
Alternator Brand::	Stamford / Meecalt / Copy Stamford	Engine Model::	4006-23TAG2A
Cooling System:	Water-cooled	Speed Governing:	Electronic
Control Module Brand:	Comap,SmartGen, DeepSea	Soundproof Type- Dimension (LWH) (mm):	440018502500
Soundproof Type-Weight (kg):	11050	Package:	Plastic Foam Or Plywood Case
Highlight:	trailer mounted diesel generator , mobile generators

750kva 50 Hz silent Trailer Mounted Generator with Stamford Alternator

Trailer Feature:

Using leaf spring suspension structure node with high strength and rigidity, a reasonable choice.
Trailer genset plant has a good seal, security, easy to move, flexible operation, and with a hand brake, air brake, rear light systems, in line with the requirements of the road traffic.
Widely used in construction sites, road and railway construction sites and temporary sites electricity.

Diesel Generator GPP600 (three phase)

Prime Power (kw/kva)	600/750
Standby Power (kw/kva)	660/825
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	1080
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Open Type-Dimension (LWH) (mm)	445016502400
Open Type-Weight (kg)	5000
Soundproof Type- Dimension (LWH) (mm)	440018502500
Soundproof Type-Weight (kg)	11050
Fuel Tank Capacity(L)	1000
Continuous Running Time(hr.)	6

Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.

Engine specifications:

1.Main features:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

2.Technical data
Model 4006-23TAG2A

Engine brand	Perkins
Output Power (kw)	632
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Compression Ratio	13.6:1
Displacement (L)	22.9
Bore X Stroke (mm)	160*190
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	105
Fuel Consump. (g/kw·h)	202
Oil Capacity (L)	113.4

Alternator specifications:
Model LVI634B

Alternator brand	Stamford
Rated Power (kw)	600
Excitation System	Brushless, self-exciting
Voltage Regulation Mode	AVR
Connection Type	3phase,4wires,”Y” connection
Pole No.	4
Rotation Speed (r/min)	1500
Temperature Rise (℃)	125
Insulation class	H
Voltage Regulation (0 load)	≥95%～105%
Voltage accuracy	≤±1%
Protection Grade	IP23
Telephone Influence Factor	TIF＜50
Harmonic Coefficient	THF＜2%

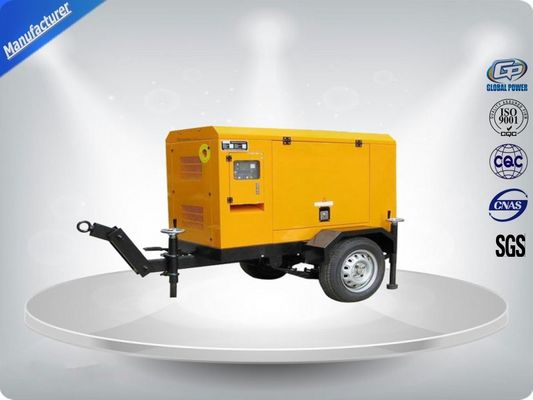

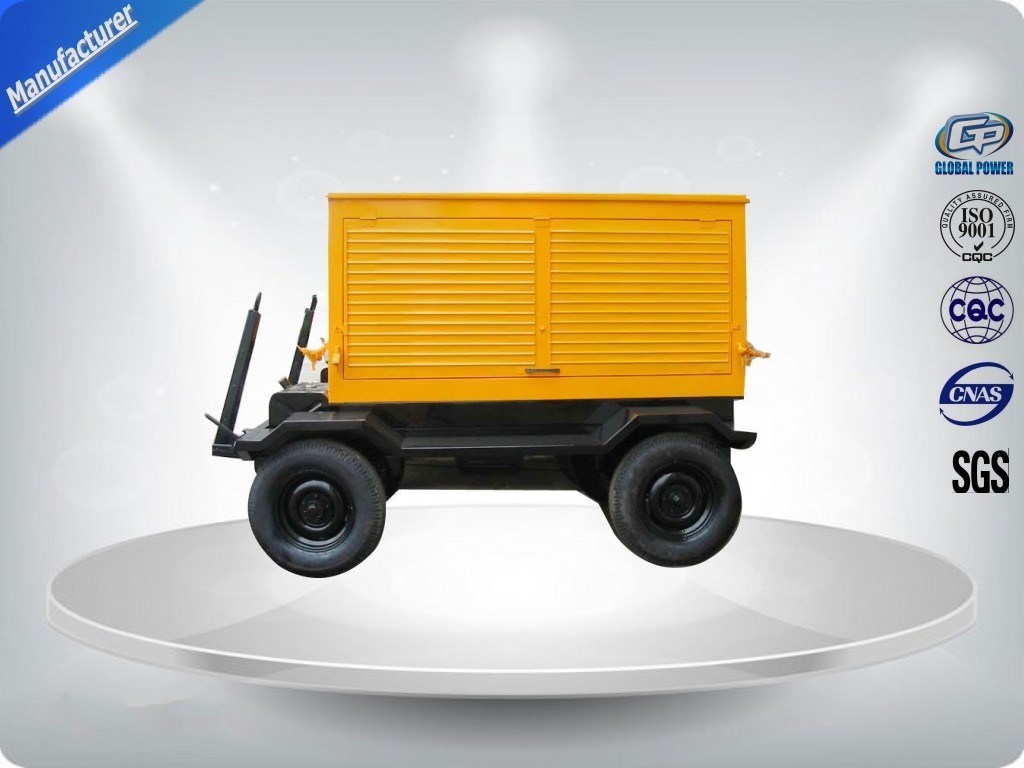

Product Picture:
750kva 50 Hz silent Trailer Mounted Generator with Stamford Alternator

Features and benefits

Tightly structure, excellent design and craft
Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door

Warranty and Maintenance:

Guarantee Period: One year or 1000 running hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent by air express.
24 hours service hotline is available for customers.
