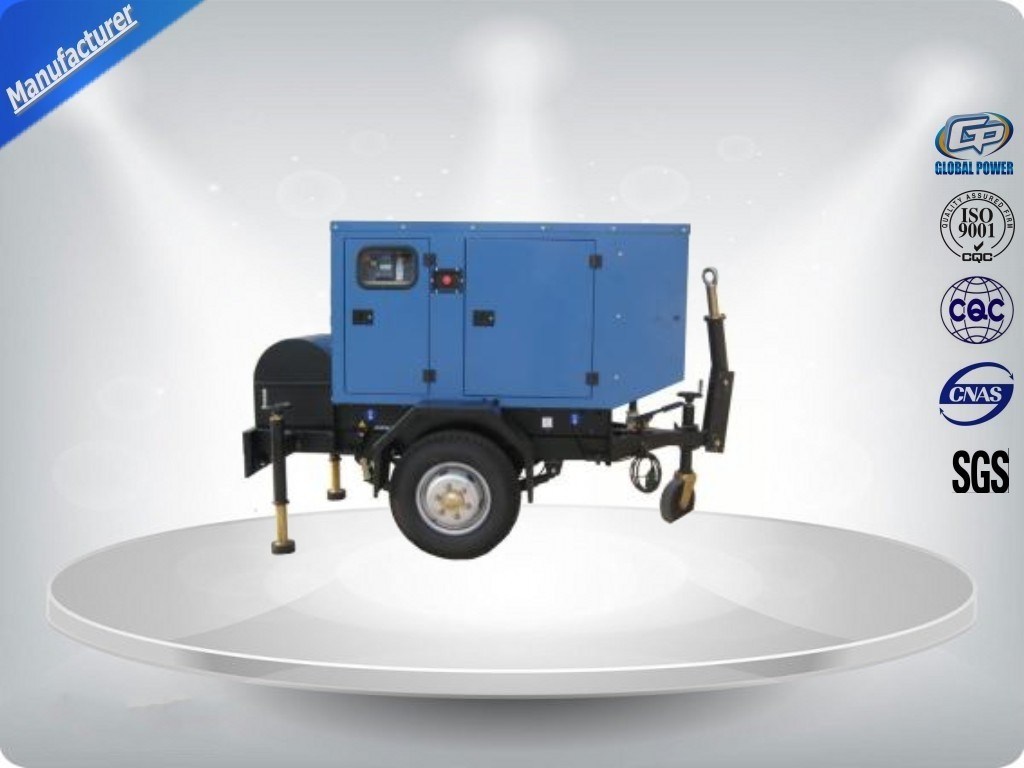

Canopied Silent Rental Trailer Genset Rental 1500 R / Min Engine Speed

MOQ:	1set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets/year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

CE / ISO

Model Number

GP P80

Engine Brand:

Perkins

Engine Model:

1104A-44TG1

Cooling System:

Water-cooled

Rated Voltage (V):

400 / 230

Engine Speed (r/min):

Rated Current (A):

Speed Governing:

Electronic

Fuel Tank Capacity(L):

Highlight:

gasoline generator set

trailer mounted generator

genset type silent

Product Description

Canopied Silent Rental Trailer Genset Rental 1500 R / Min Engine Speed

GP Brand New Diesel Generator cooperates with good quality diesel engine such as Cummins/Perkins/Volvo ,etc .

We have factory for manufacturing our own alternator, also providing Stamford, Meccalte, Wattek for optional.

The controller with Deep sea, Smartgen, ComAp, etc.

Trailer Feature:

Using leaf spring suspension structure node with high strength and rigidity, a reasonable choice.
Trailer genset plant has a good seal, security, easy to move, flexible operation, and with a hand brake, air brake, rear light systems, in line with the requirements of the road traffic.
Widely used in construction sites, road and railway construction sites and temporary sites electricity.

Diesel Generator GPP80 (three phase)

Prime Power (kw/kva)	80/100
Standby Power (kw/kva)	88/110
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	144
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Open Type-Dimension (LWH) (mm)	19007201150
Open Type-Weight (kg)	1000
Soundproof Type- Dimension (LWH) (mm)	270011501700
Soundproof Type-Weight (kg)	2600
Fuel Tank Capacity(L)	180
Continuous Running Time(hr.)	8

Engine Technical data

Model 1104C-44TAG2

Engine brand	Perkins
Output Power (kw)	103
Cylinder No. & Config.	4, in-line
Combustion System	direct injection
Compression Ratio	18.2:1
Displacement (L)	4.41
Bore X Stroke (mm)	105*127
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	12V/24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	12.6
Fuel Consump. (g/kw·h)	205
Oil Capacity (L)	8

Generator soundproof/Silent and canopy

1) Excellent ventilation

2) Black finish stainless steel locks and hinges

3) Zinc plated or stainless steel fasteners

4) Body made from steel components treated with polyester powder coating

5) Two large doors on either side

6) Radiator fill access plate

7) Fully guarded cooling fan and battery charging alternator

8) Fuel fill and battery access via lockable access doors

9) Emergency stop button on canopy exterior

10) Lube oil drain and radiator drain to exterior

11) Control panel viewing window

12) Lifting points on base frame

Our Picture :

Our advantages :
1.Inspection

1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.

2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.

3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

2.Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
