Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Cummins | Engine Model: | 1104A-44TG1 |
|---|---|---|---|
| Cooling System: | Water-cooled | Rated Voltage (V): | 400 / 230 |
| Engine Speed (r/min): | 1500 | Rated Current (A): | 90 |
| Speed Governing: | Electronic | Fuel Tank Capacity(L): | 180 |
| Output Type: | AC Three Phase | ||
| Highlight: | trailer mounted diesel generator,Trailer Genset |
||

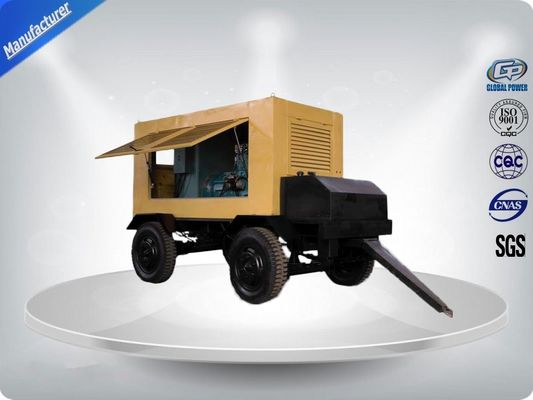

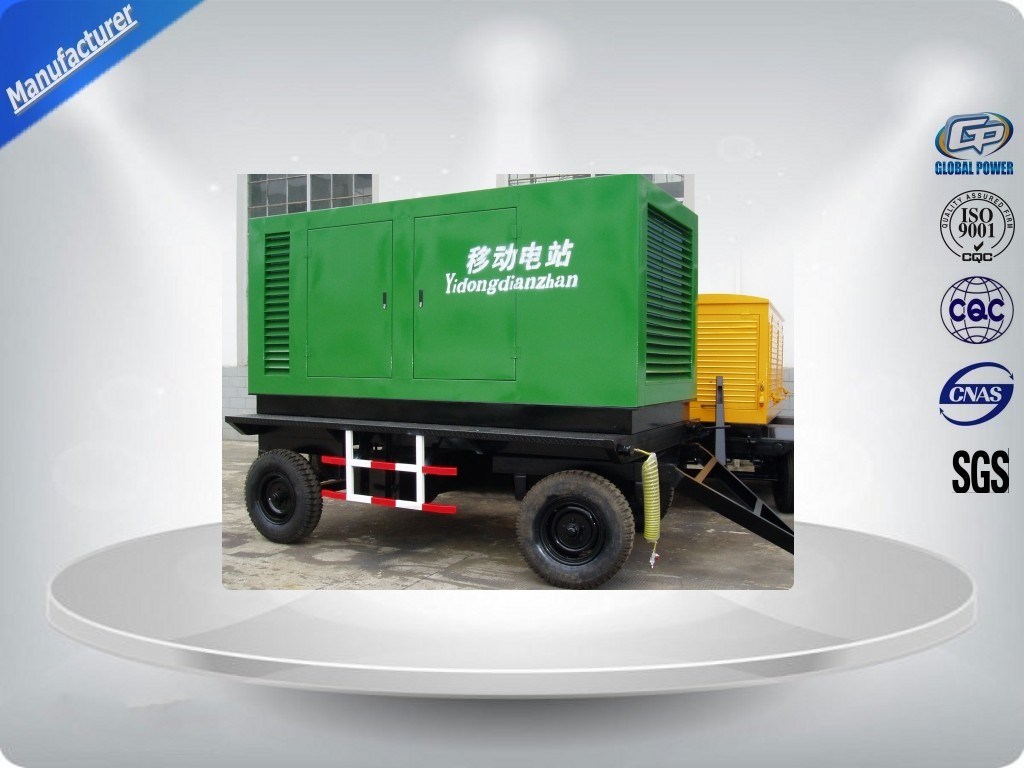

Movable AC Three Phase Trailer Mounted Generator Four Wheels 10-100KVA
GP Brand New Diesel Generator cooperates with good quality diesel engine such as Cummins/Perkins/Volvo ,etc .
We have factory for manufacturing our own alternator, also providing Stamford, Meccalte, Wattek for optional.
The controller with Deep sea, Smartgen, ComAp, etc.
Trailer Feature:
Diesel Generator GPP64 (three phase)
|
Prime Power (kw/kva) |
60/75 |
|
Standby Power (kw/kva) |
66/83 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Current (A) |
108 |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
12V 100Ah |
|
Open Type-Dimension (L*W*H) (mm) |
1900*720*1150 |
|
Open Type-Weight (kg) |
1000 |
|
Soundproof Type- Dimension (L*W*H) (mm) |
2700*1150*1700 |
|
Soundproof Type-Weight (kg) |
2550 |
|
Fuel Tank Capacity(L) |
180 |
|
Continuous Running Time(hr.) |
8 |
Engine Technical data
Model 1104A-44TG2
|
Engine brand |
Perkins |
|
Output Power (kw) |
81 |
|
Cylinder No. & Config. |
4, in-line |
|
Combustion System |
direct injection |
|
Compression Ratio |
17.25:1 |
|
Displacement (L) |
4.4 |
|
Bore X Stroke (mm) |
105*127 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Electronic |
|
Starting System |
12V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
13 |
|
Fuel Consump. (g/kw·h) |
216 |
|
Oil Capacity (L) |
8 |
Generator soundproof/Silent and canopy
1) Excellent ventilation
2) Black finish stainless steel locks and hinges
3) Zinc plated or stainless steel fasteners
4) Body made from steel components treated with polyester powder coating
5) Two large doors on either side
6) Radiator fill access plate
7) Fully guarded cooling fan and battery charging alternator
8) Fuel fill and battery access via lockable access doors
9) Emergency stop button on canopy exterior
10) Lube oil drain and radiator drain to exterior
11) Control panel viewing window
12) Lifting points on base frame
Our advantages :
1) Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
3) All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
Warranty and Maintenance:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
